- Product description
-
Product description

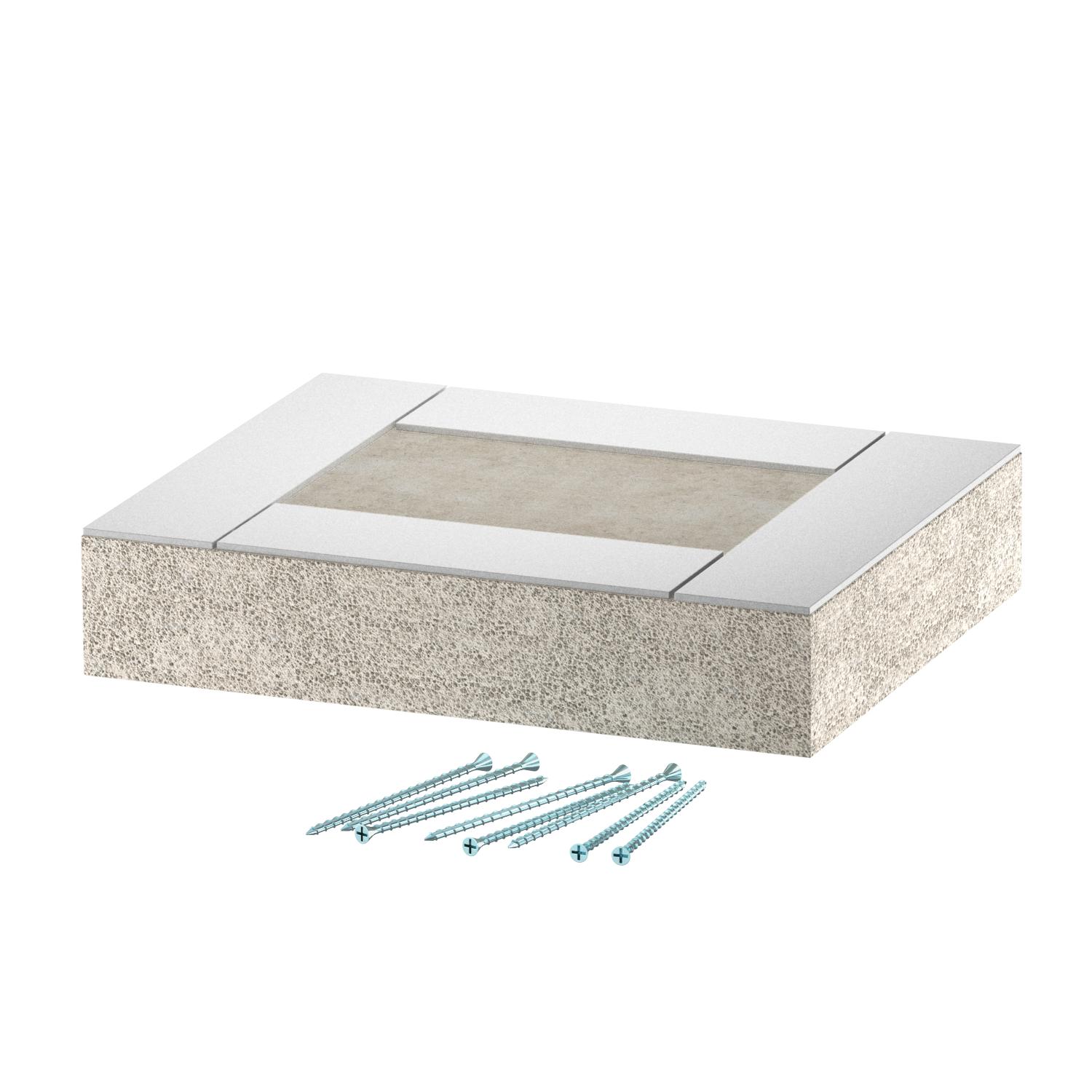

End piece for PYROLINE® Con D EI60 fire protection duct, type PLCD D060810, consisting of fibre glass light concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
- Technical data
-
Technical data

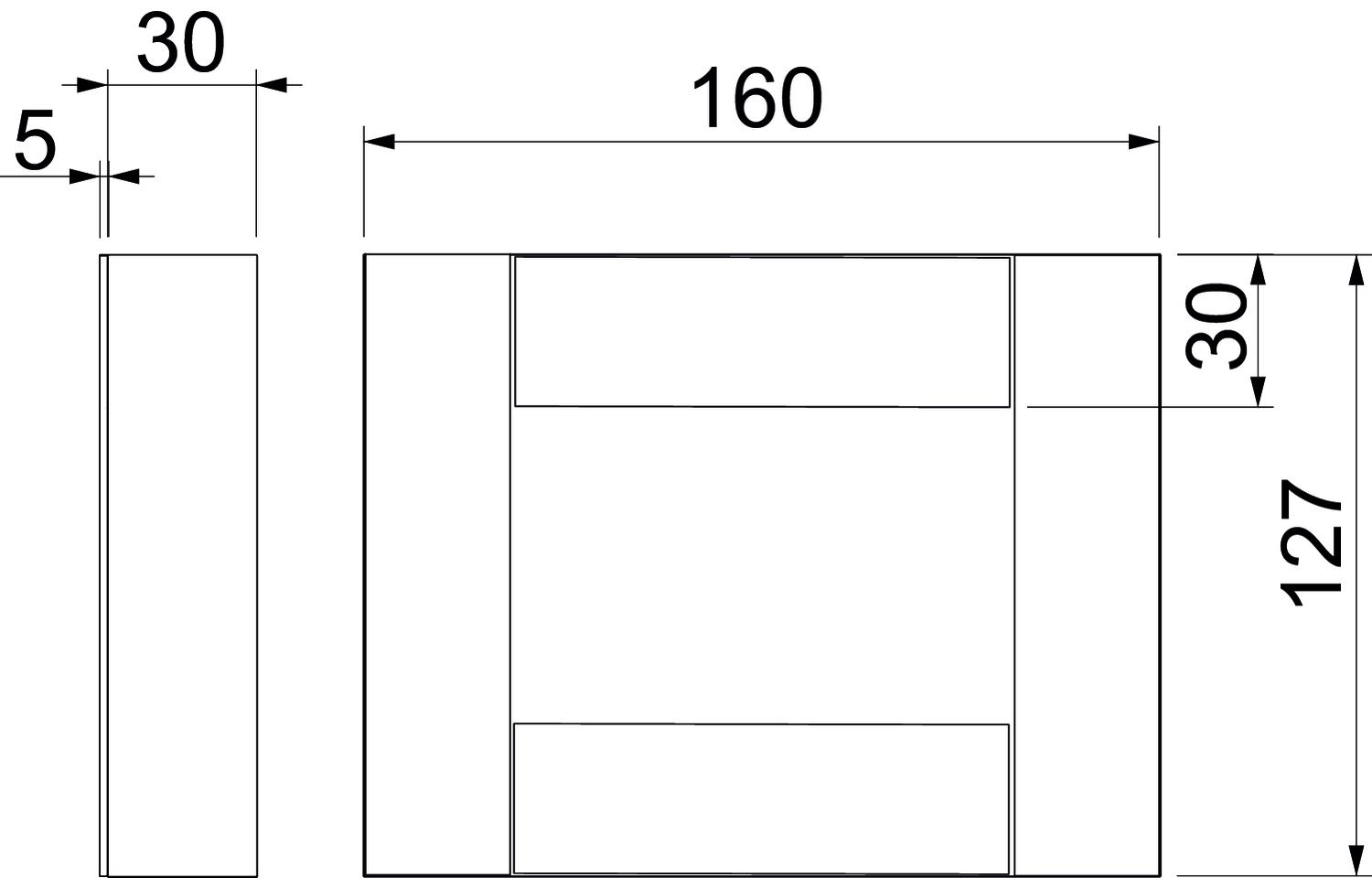

Classification EI − installation duct 60 Colour Grey Dimension 100x80 Dimension A 30 mm Dimension B 160 mm Dimension H 127 mm Dimension L 30 mm Height 127 mm Jacketing Without Length 30 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Version for Left/right Width 160 mm - All types
- Downloads
-
Data sheet PLCD E060810 / 7215840 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLCD E060810 / 7215840 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdf
