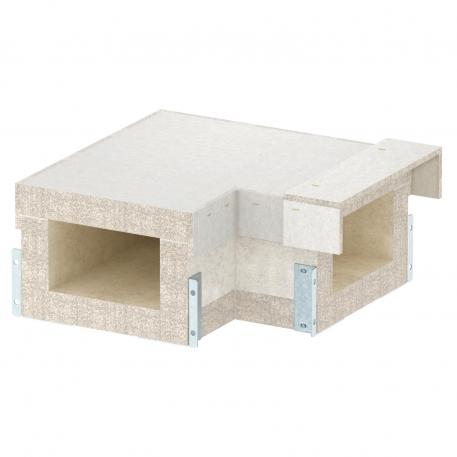

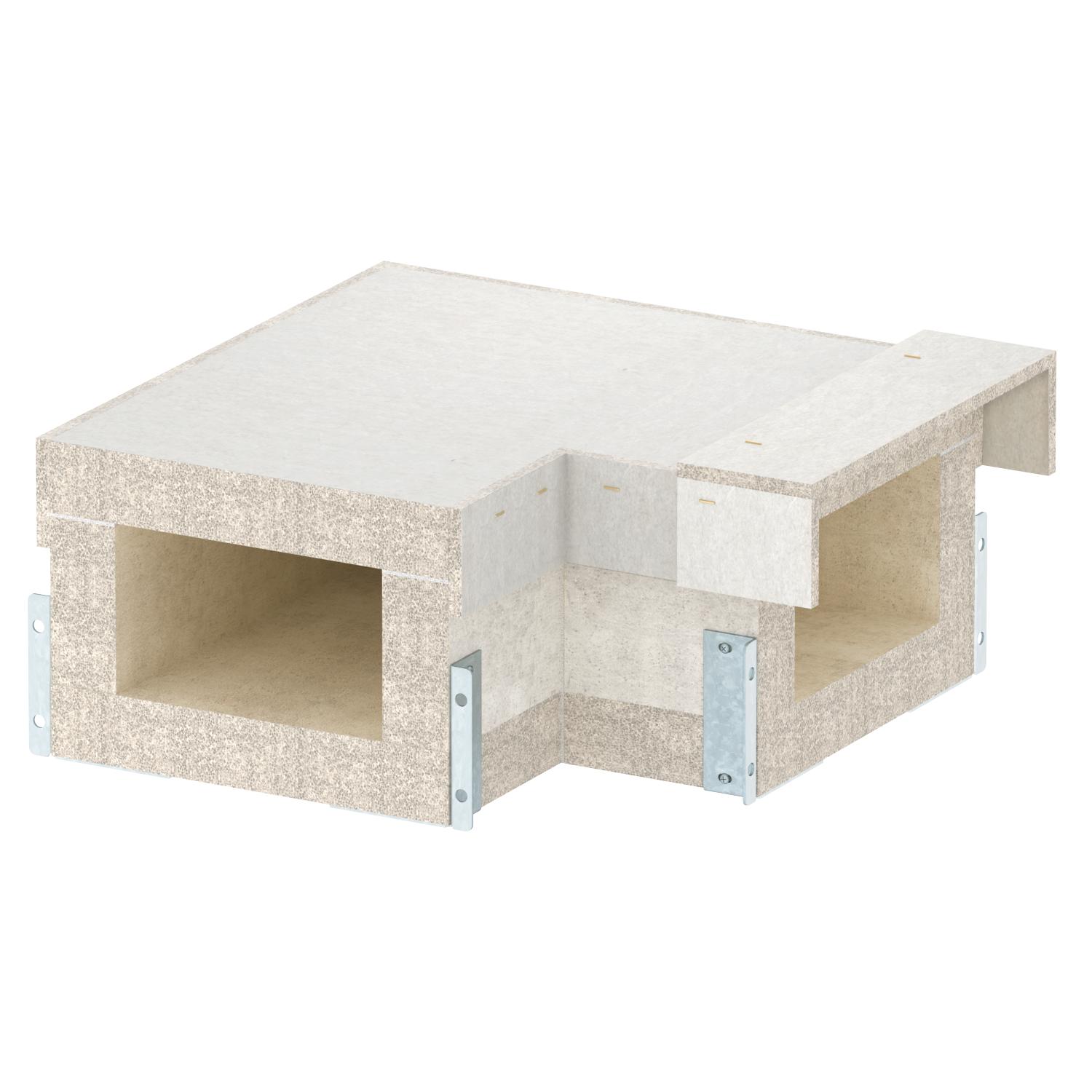

EI90 90° bend for PLCS D091220 fire protection duct
Item no. 7217894 | EAN 4012196836734
- Product description
-
Product description90° bend for PYROLINE® Con S EI90 fire protection duct, type PLCS D091220, consisting of fibreglass light concrete which is resistant to water and frost for the creation of horizontal changes of direction in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

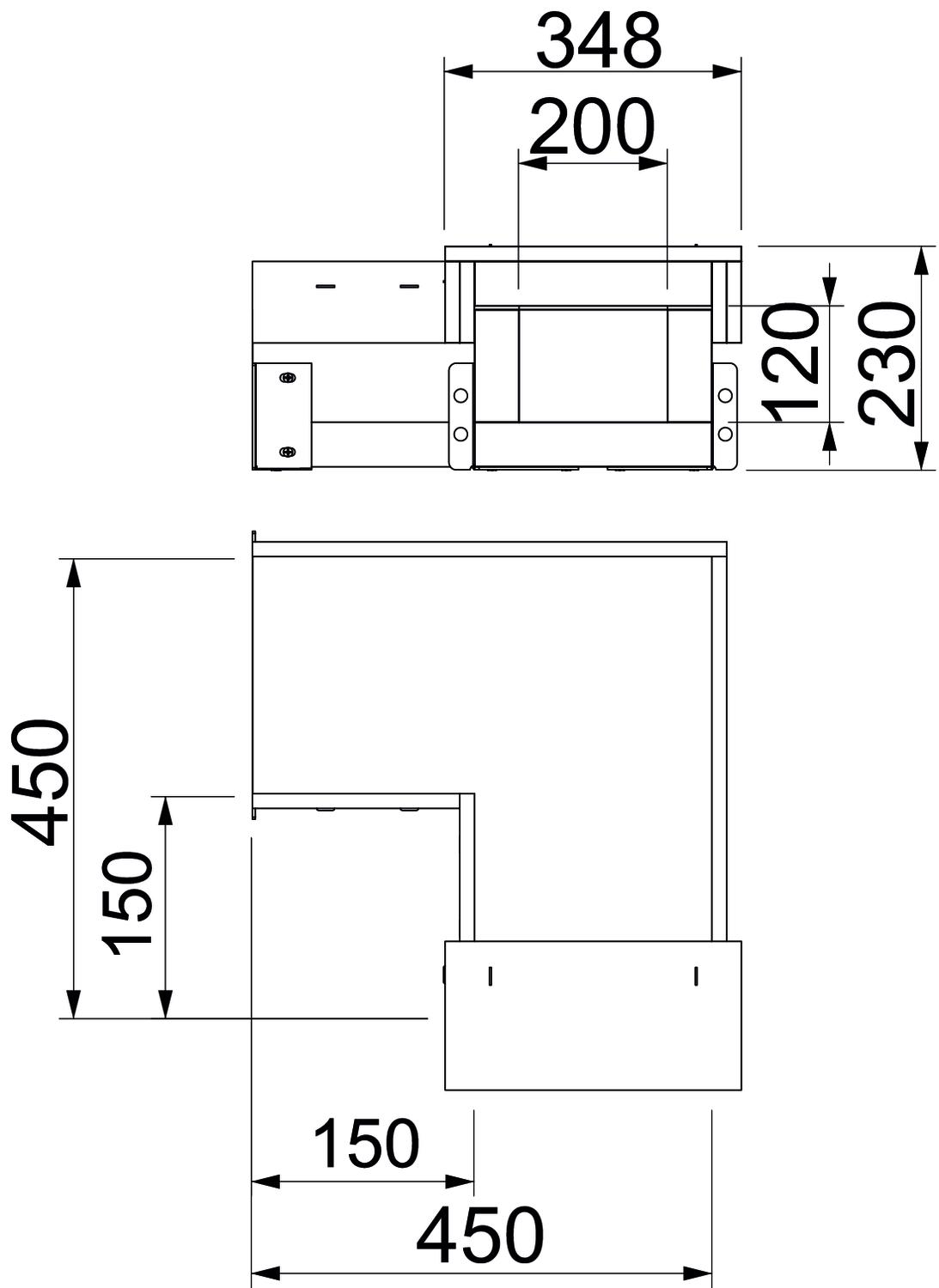

Angle of the bend 90 ° Classification EI − installation duct 90 Colour Grey Cover fastening Loose Dimension 200x120 Dimension b 200 mm Dimension B 348 mm Dimension h 120 mm Dimension H 230 mm Dimension L 450 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
- Downloads
-
Data sheet PLCS B091220 / 7217894 , 0.25MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCS B091220 / 7217894 , 0.11MB , pdfDeclaration of performance PLCS B091220 / 7217894 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
