Product description

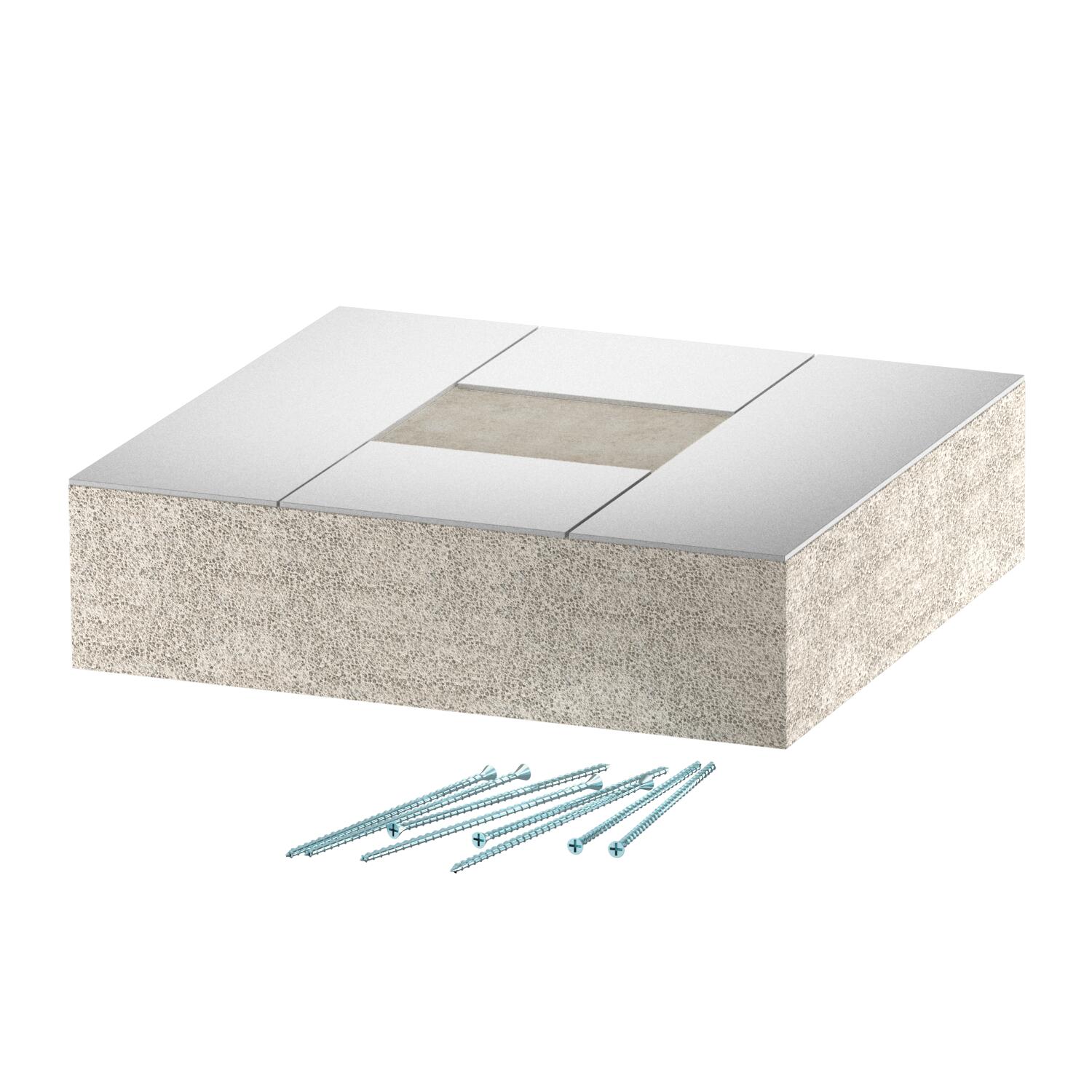

End piece for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
- Technical data
-
Technical data

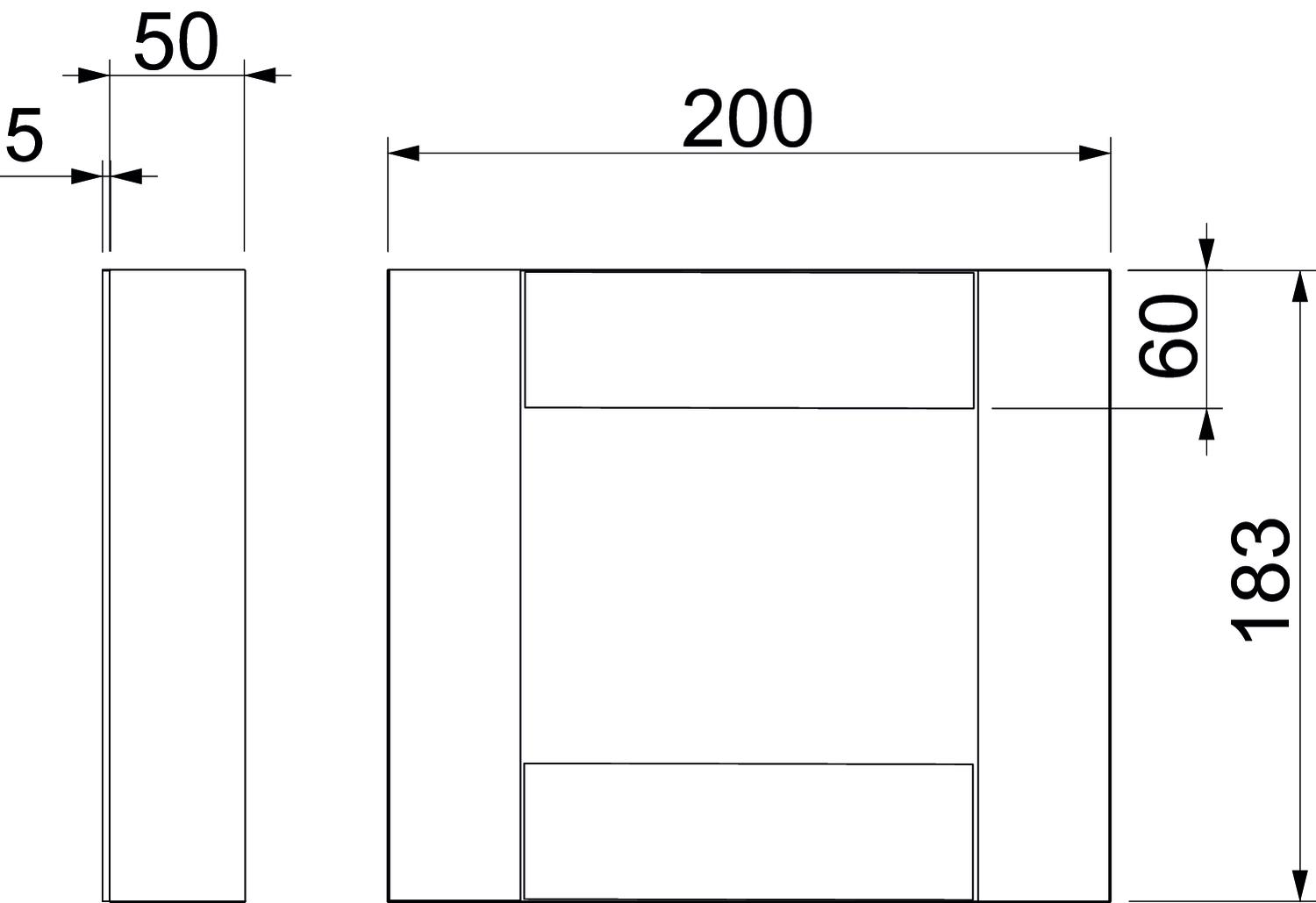

Classification EI − installation duct 90 Colour Grey Dimension 100x80 Dimension A 60 mm Dimension B 200 mm Dimension H 183 mm Dimension L 50 mm Height 183 mm Jacketing Without Length 50 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Version for Left/right Width 200 mm - All types
- Downloads
-
Data sheet PLCS E090810 / 7217990 , 0.22MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLCS E090810 / 7217990 , 0.10MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdf
