EI90 wall connection collar for PLCS D091220 fire protection duct
morepic-1

EI90 wall connection collar for PLCS D091220 fire protection duct

Item no. 7217974 | EAN 4012196836925

Product description
Product description

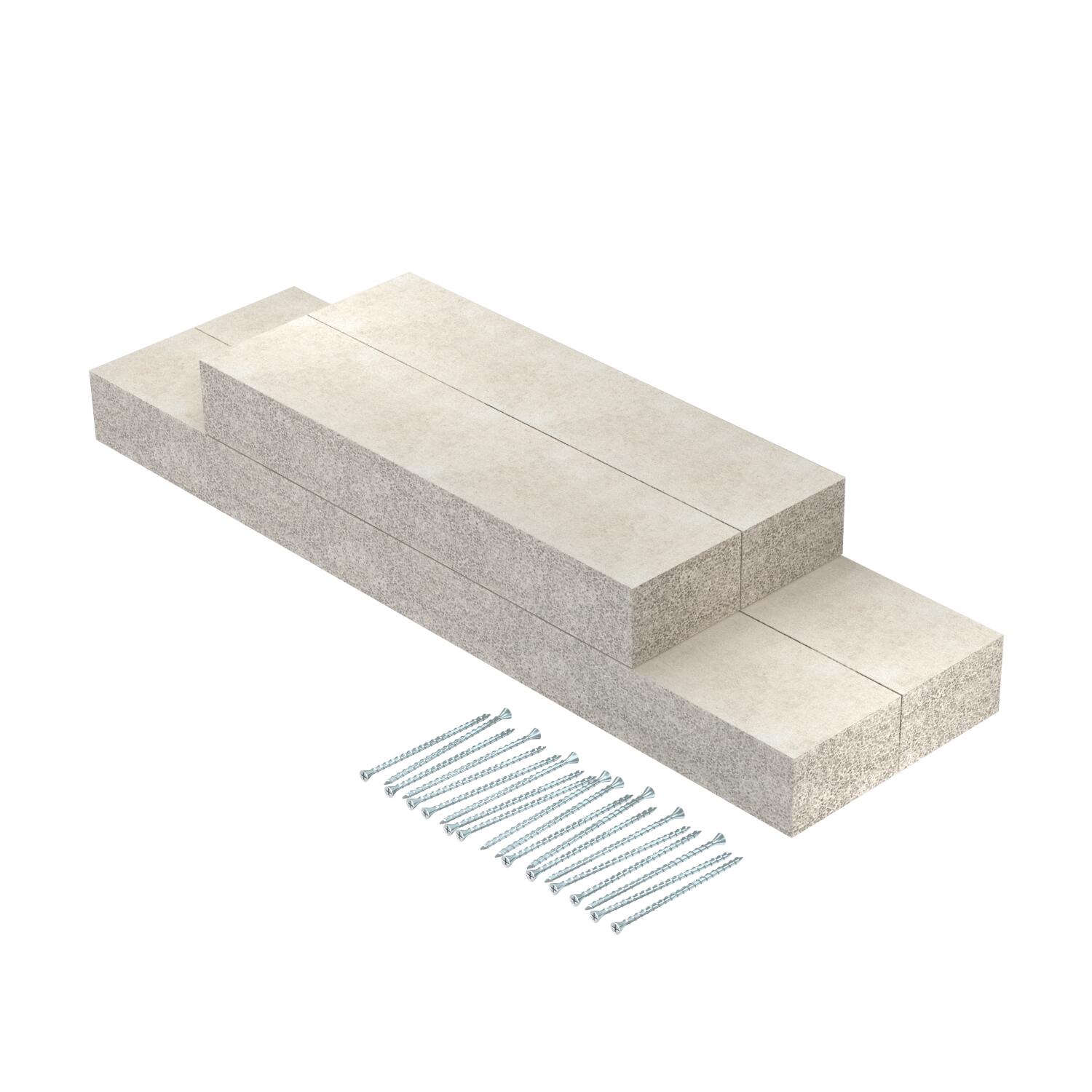

Wall connection collar for PYROLINE® Con S EI90 fire protection duct, type PLCS D091220, consisting of fibreglass light concrete, which is resistant to water and frost, for mounting on the fire protection duct in the area of wall connections and wall penetrations. Consists of 4 single plates (width 50 mm, depth 30 mm).

Including countersunk head screws.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Grey
Dimension 200x120
Material Fibreglass lightweight concrete
All types

All types

Types Item no. Quantity SSU
PLCD W060810 7215820
1 piece
PLCD W061220 7215824
1 piece
PLCD W090810 7215830
1 piece
PLCD W091220 7215834
1 piece
BSK-K1016 7215545
1 piece
PLCS W060810 7217960
1 piece
PLCS W061220 7217964
1 piece
PLCS W090810 7217970
1 piece
PLCS W091220 7217974
1 piece
Downloads

Download

EU declaration of conformity PLCS W091220 / 7217974 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
