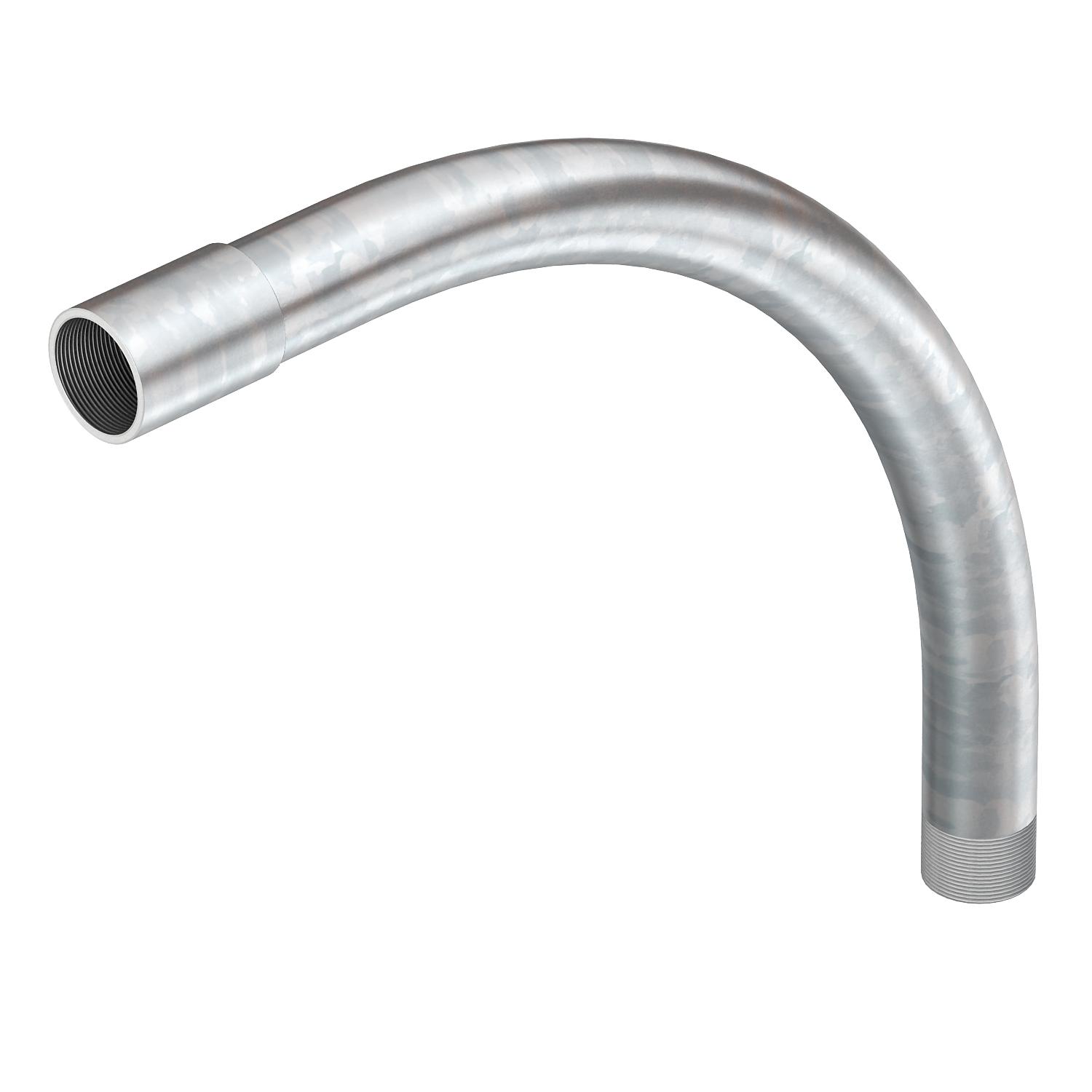

Electrogalvanised steel bend, with thread
Item no. 2046784 | EAN 4012196387571
- Product description
-
Product description90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

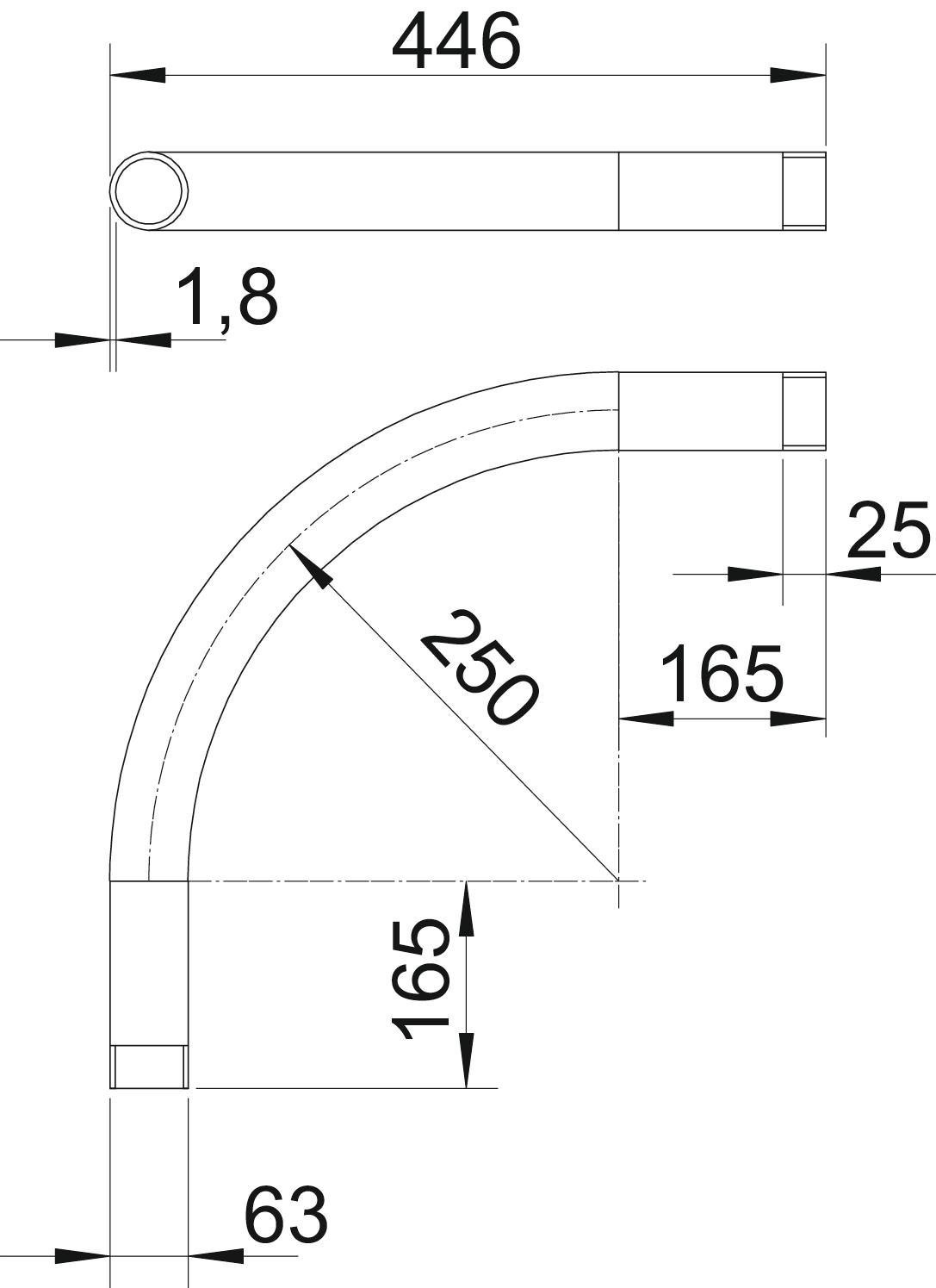

Angle of the bend 90 ° Brushed surface no Dimension M63x1,5 Dimension A 165 mm Dimension B 446 mm Dimension D 63 mm Dimension l 25 mm Dimension m (mm) M63 Dimension R 250 mm Dimension t 1,8 mm Flexible no For nominal pipe diameter 63 mm Halogen-free no Material Steel Polished surface no Surface Electrogalvanized Thread M63x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM63 G / 2046784 , 0.22MB , pdfEU declaration of conformity SBNM63 G / 2046784 , 0.06MB , pdfREACH Declaration of conformity SBNM63 G / 2046784 , 0.12MB , pdfRoHS Declaration of conformity SBNM63 G / 2046784 , 0.12MB , pdf
