- Product description
-
Product description

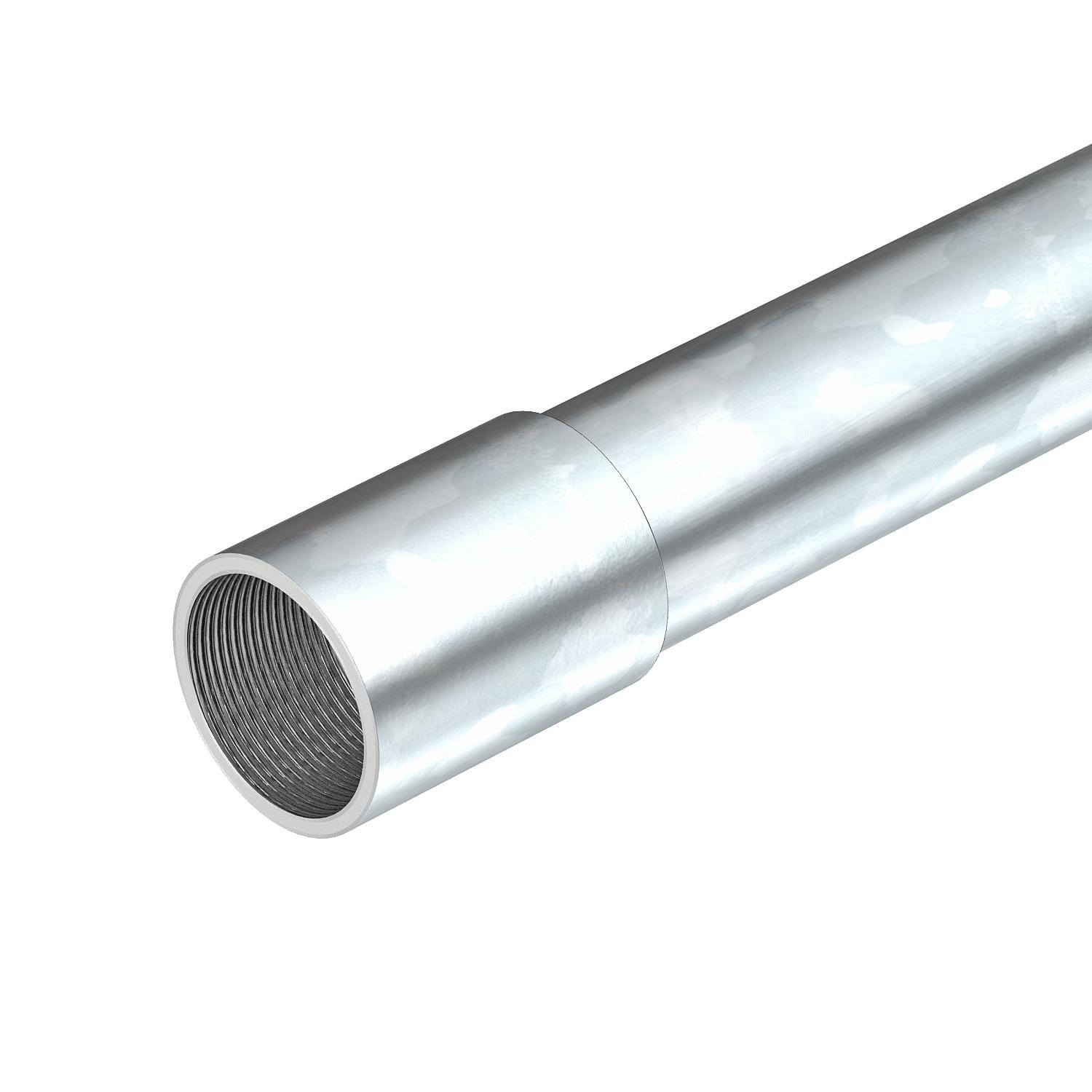

Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.
With burr-free inner wall. One coupling is already screwed onto each pipe.
-
- Technical data
-
Technical data
Brushed surface no Cavity wall installation yes Classification code 55571 Concealed yes Concrete installation yes Connection 1, installation pipe Sleeve Connection 2, installation pipe External thread (metric) Dimension M20x1,5,3000 External diameter 20 mm Installation in the earth no Installation on wood yes Installation outdoors no Machines and system installation no Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Pipe version Rigid with thread Polished surface no Surface Electrogalvanized Surface-mounted yes Thread M20x1,5 Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes With sleeve yes Dimensions

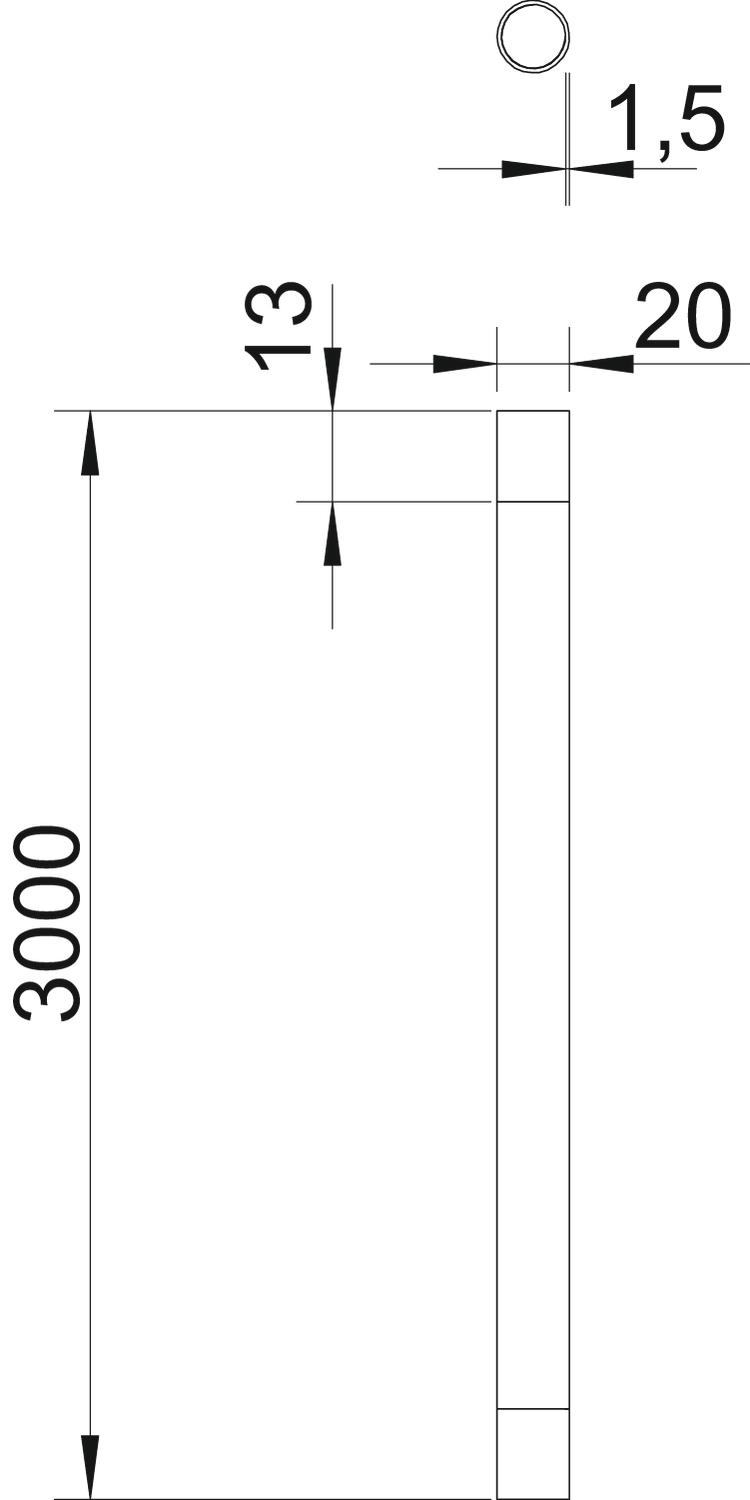

Dimension D 20 mm Dimension L 3000 mm Dimension l 13 mm Dimension m (mm) M20 Dimension t 1,5 mm Length 3000 mm - All types
-
All types
- Downloads
-
Data sheet SM20W G / 2046862 , 0.36MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,REACH Declaration of conformity SM20W G / 2046862 , 0.12MB , pdfRoHS Declaration of conformity SM20W G / 2046862 , 0.12MB , pdf
