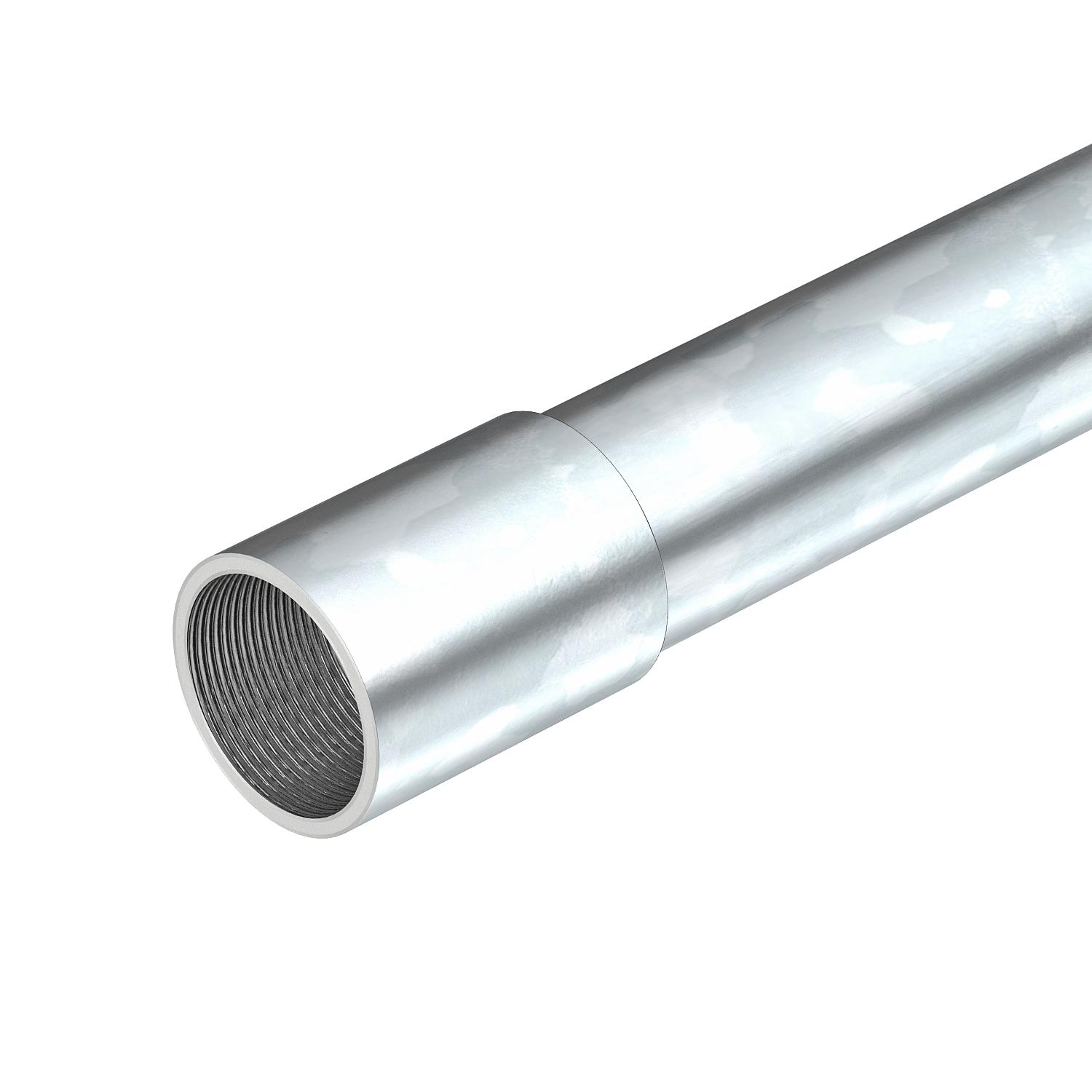

Electrogalvanised steel pipe, with thread 25 | 3000 | 1.5 | M25x1,5

Electrogalvanised steel pipe, with thread

Item no. 2046863 | EAN 4012195924876

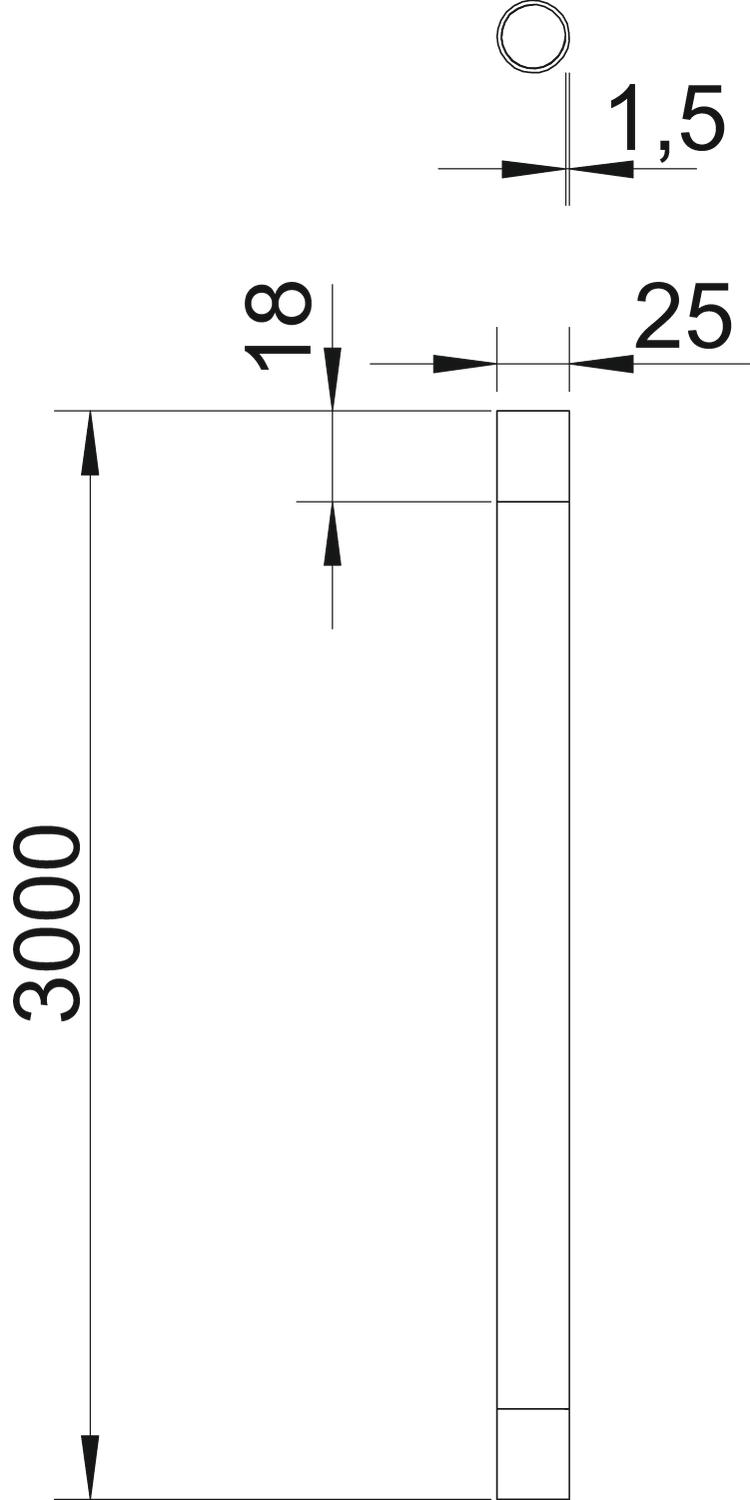

Item no. / Types

Dimension D

Dimension L	3000 mm

Dimension t

Thread

Product description

Product description

Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.

With burr-free inner wall. One coupling is already screwed onto each pipe.

Technical data

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	55571
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Sleeve
Connection 2, installation pipe	External thread (metric)
CO₂ Footprint (GWP) Cradle-to-Gate	1,7278 kg CO₂e / 1 Meter
Dimension	M25x1,5,3000
Dimension D	25 mm
Dimension L	3000 mm
Dimension l	18 mm
Dimension m (mm)	M25
Dimension t	1,5 mm
External diameter	25 mm

Installation in the earth	no
Installation on wood	yes
Installation outdoors	no
Length	3000 mm
Machines and system installation	no
Material	Steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid with thread
Polished surface	no
Surface	Electrogalvanized
Surface-mounted	yes
Thread	M25x1,5
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes

All types

All types

Types	Dimension D	Dimension L	Dimension t	Thread	Item no.	Quantity	SSU
SM16W G	16 mm	3000 mm	1.3 mm	M16x1,5	2046861	m	30 m
SM20W G	20 mm	3000 mm	1.5 mm	M20x1,5	2046862	m	30 m
SM25W G	25 mm	3000 mm	1.5 mm	M25x1,5	2046863	m	30 m
SM32W G	32 mm	3000 mm	1.5 mm	M32x1,5	2046864	m	21 m
SM40W G	40 mm	3000 mm	1.5 mm	M40x1,5	2046865	m	15 m
SM50W G	50 mm	3000 mm	1.5 mm	M50x1,5	2046866	m	15 m
SM63W G	63 mm	3000 mm	1.7 mm	M63x1,5	2046867	m	9 m

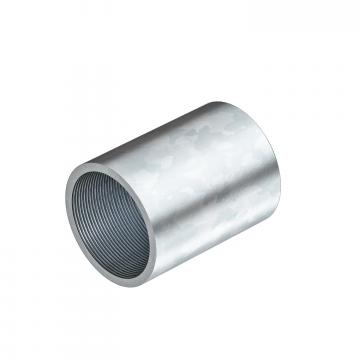

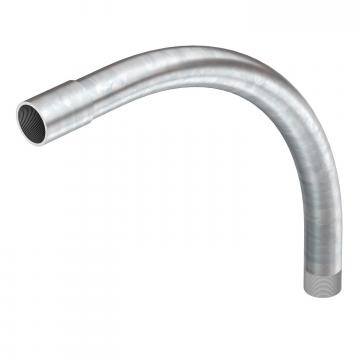

Accessories
