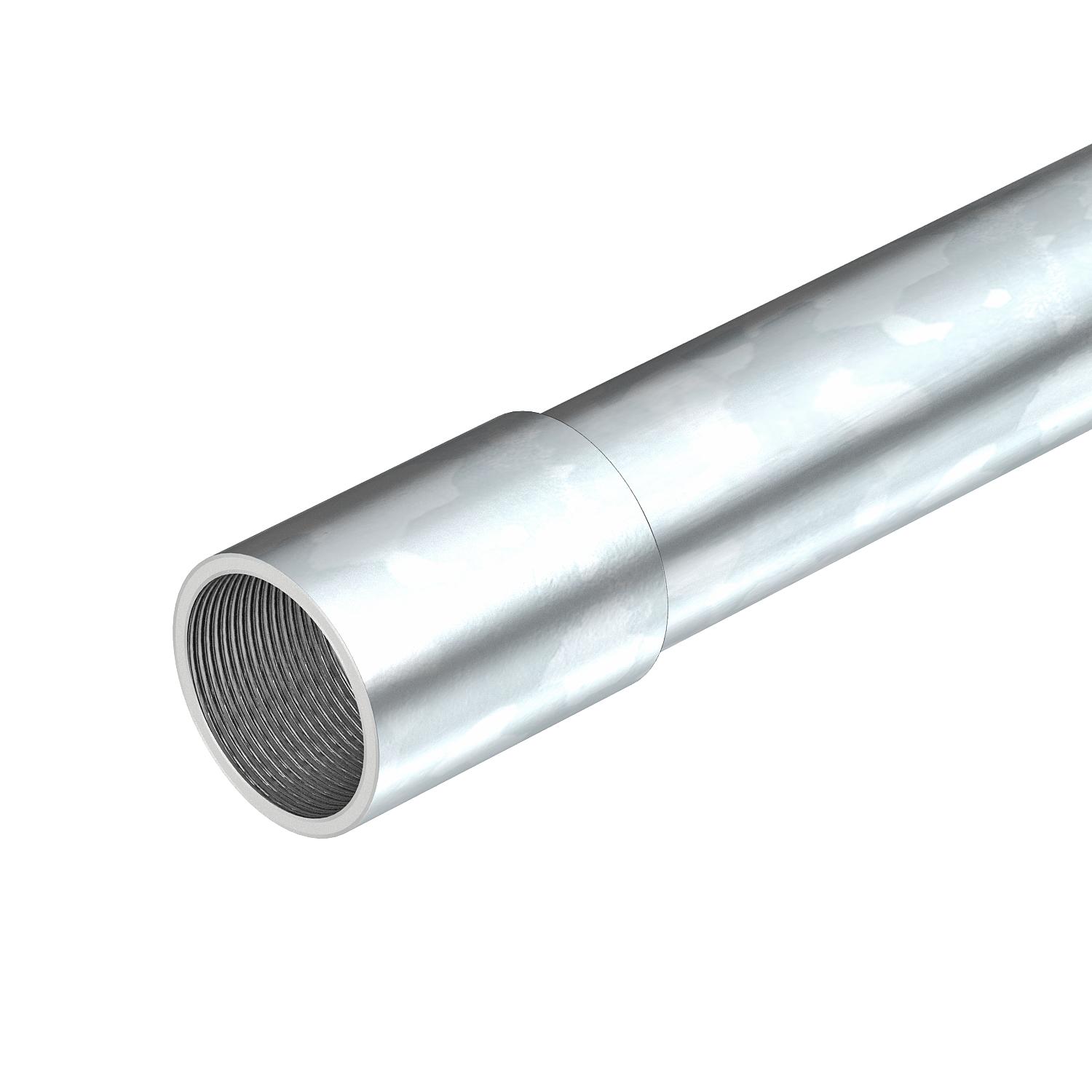

Electrogalvanised steel pipe, with thread

Item no. 2046866 | EAN 4012195924906

3000 mm
Product description
Product description
Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.

With burr-free inner wall. One coupling is already screwed onto each pipe.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Brushed surface no
Cavity wall installation yes
Classification code 55571
Concealed yes
Concrete installation yes
Connection 1, installation pipe Sleeve
Connection 2, installation pipe External thread (metric)

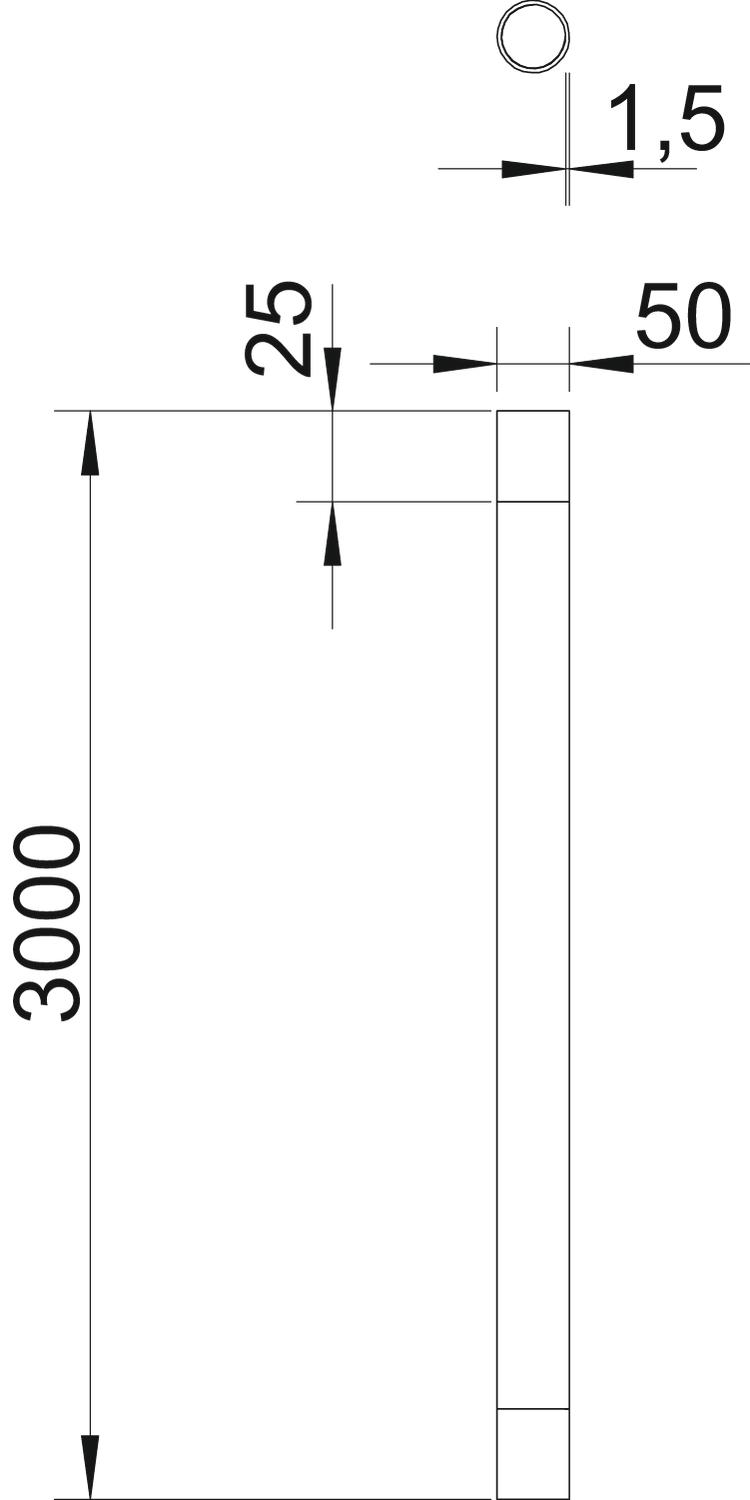

Dimension M50x1,5,3000
Dimension D 50 mm
Dimension L 3000 mm
Dimension l 25 mm
Dimension m (mm) M50
Dimension t 1,5 mm
External diameter 50 mm
Installation in the earth no
Installation on wood yes
Installation outdoors no
Length 3000 mm
Machines and system installation no
Material Steel
Permitted temperature range, max. 400 °C
Permitted temperature range, min. -45 °C
Pipe version Rigid with thread
Polished surface no
Surface Electrogalvanized
Surface-mounted yes
Thread M50x1,5
Underfloor installation (bitumen, hot asphalt) yes
Underfloor installation (screed) yes
All types

All types

Types Dimension D Dimension L Dimension t Thread Item no. Quantity SSU
SM16W G 16 mm 3000 mm 1.3 mm M16x1,5 2046861
30 m
SM20W G 20 mm 3000 mm 1.5 mm M20x1,5 2046862
30 m
SM25W G 25 mm 3000 mm 1.5 mm M25x1,5 2046863
30 m
SM32W G 32 mm 3000 mm 1.5 mm M32x1,5 2046864
21 m
SM40W G 40 mm 3000 mm 1.5 mm M40x1,5 2046865
15 m
SM50W G 50 mm 3000 mm 1.5 mm M50x1,5 2046866
15 m
SM63W G 63 mm 3000 mm 1.7 mm M63x1,5 2046867
9 m
Accessories

System accessories

Products Types Item no. Quantity SSU

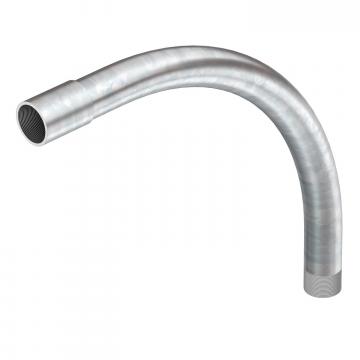

Electrogalvanised steel bend, with thread Electrogalvanised steel bend, with thread SBNM50 G 2046783
5 piece

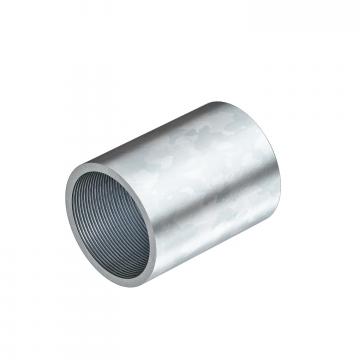

Electrogalvanised steel sleeve, with thread Electrogalvanised steel sleeve, with thread SVM50W G 2046880
10 piece

Mounting accessories

Products Types Item no. Quantity SSU
Spacer clip 733 G Spacer clip 733 G ASL 733 53 G 1362784
20 piece
Pipe end cap, splittable, metric, light grey Pipe end cap, splittable, metric, light grey 129 TB M50 2047890
30 piece
