- Product description
-
Product description

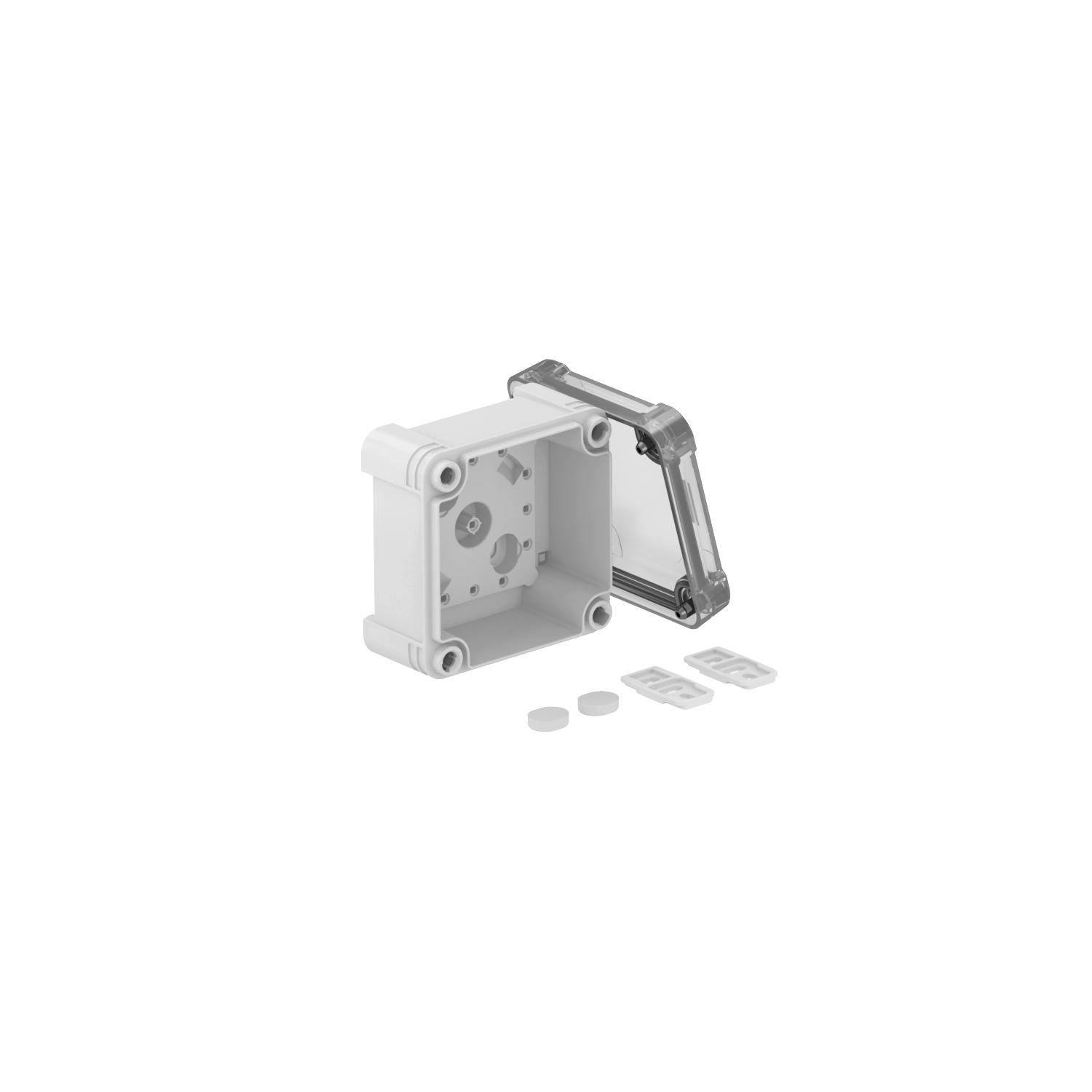

Junction box for the connection of cables and lines indoors and in outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.
- Technical data
-
Dimensions

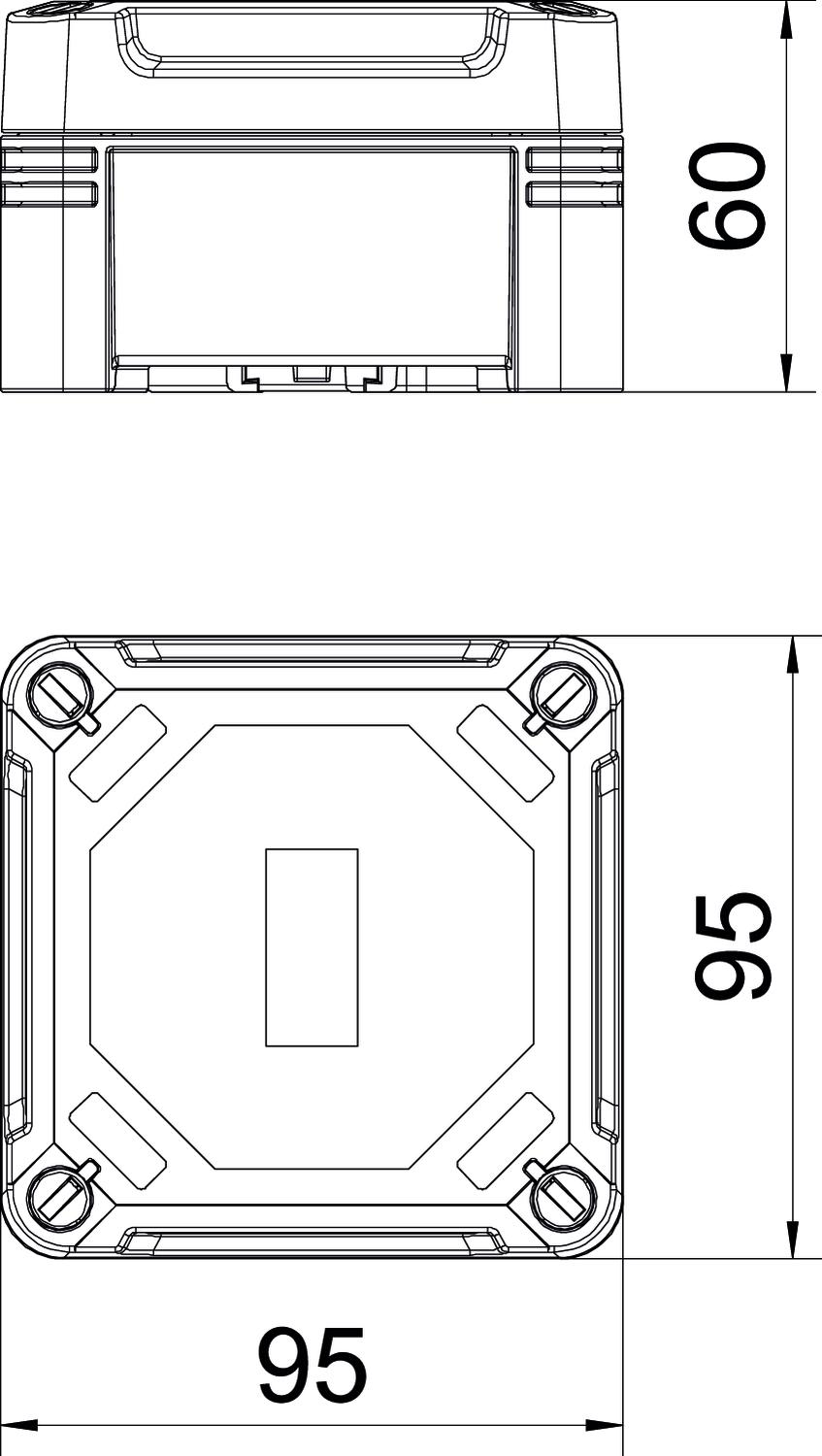

Clear internal dimensions 85x85x45 mm Colour Grey / transparent Cover fastening Screwed Dimension 95x95x60 Extension option no Height 60 mm Length 95 mm Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Square Suitable for outdoor use yes Transparent lid yes Weatherproof yes Width 95 mm with lid yes - All types
- Downloads
-
Data sheet X01C LGR-TR / 2005520 , 0.26MB , pdfDeclaration of conformity X01C LGR-TR / 2005520 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 2.29MB , pdfInstructions for use Drilling template X01-X02 , 0.04MB , pdf
