- Product description
-

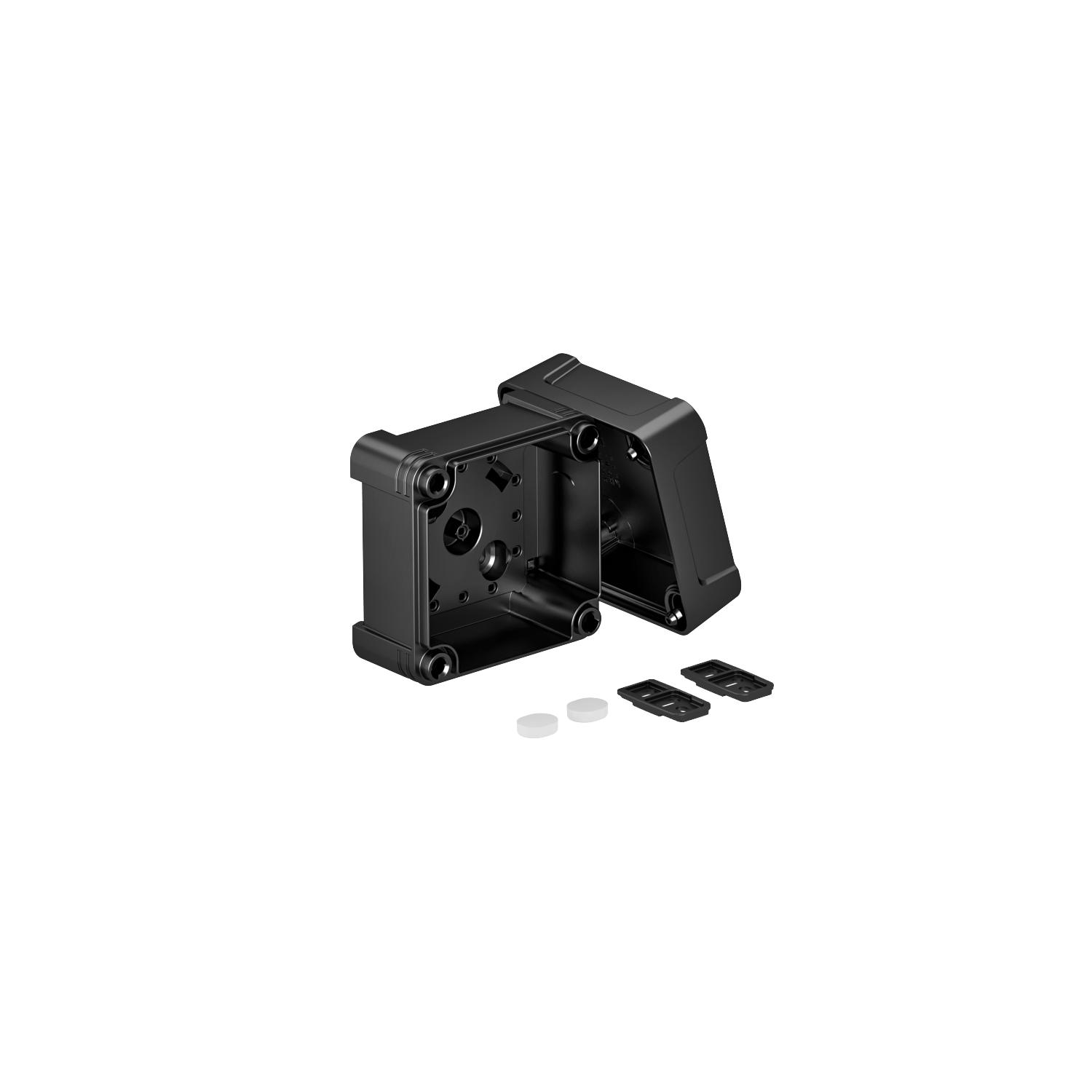

Product descriptionJunction box for the connection of cables and lines indoors and in outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.
- Technical data
-

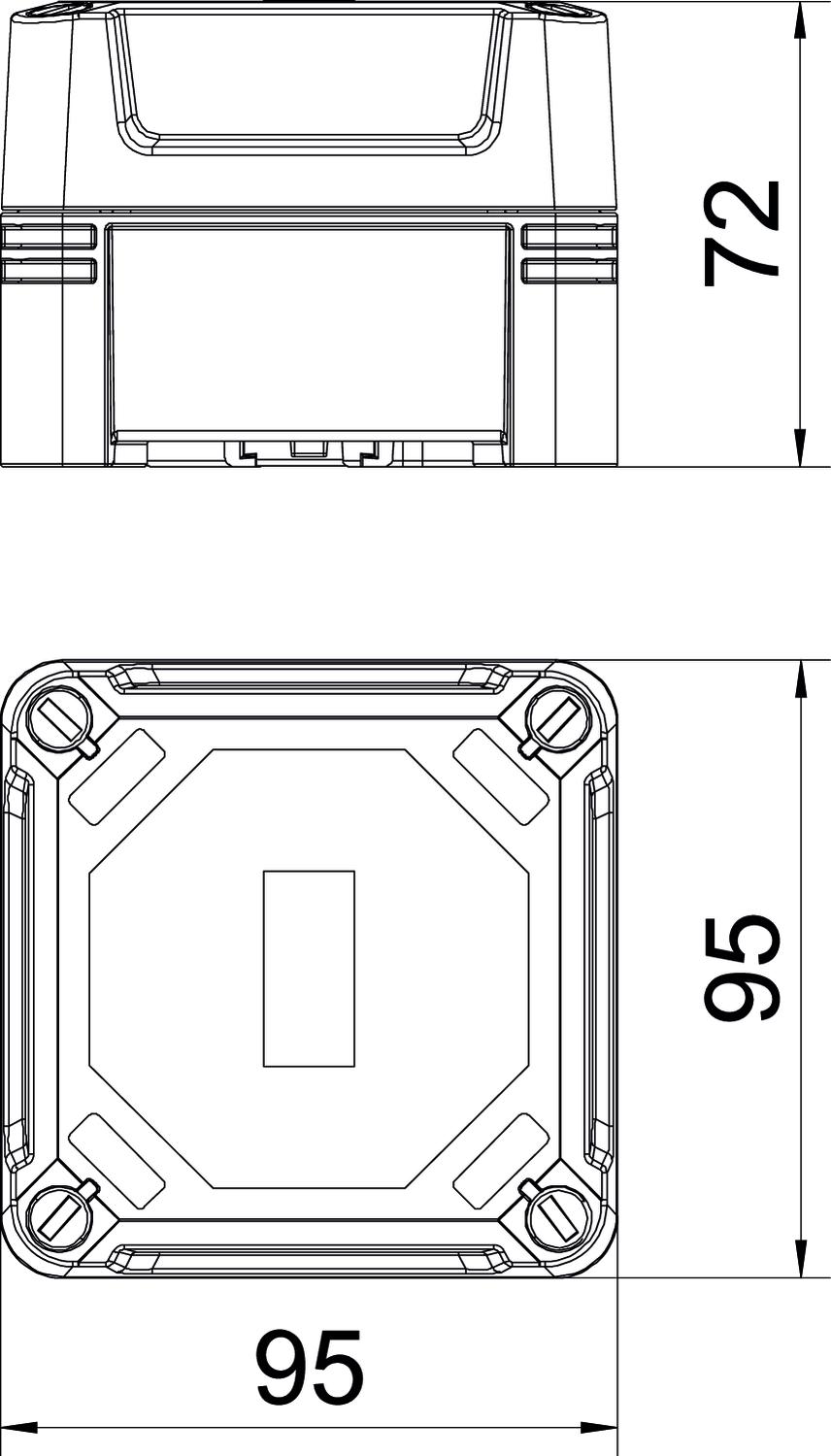

Dimensions
Clear internal dimensions 85x85x57 mm Colour Graphite black; RAL 9011 Cover fastening Screwed Dimension 95x95x72 Height 72 mm Length 95 mm Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Square Suitable for outdoor use yes Weatherproof yes Width 95 mm with lid yes - All types
- Downloads
-
Data sheet X02C SW / 2005594 , 0.27MB , pdfEU declaration of conformity X02C SW / 2005594 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 2.29MB , pdfInstructions for use Drilling template X01-X02 , 0.04MB , pdf
