- Product description
-
Product description

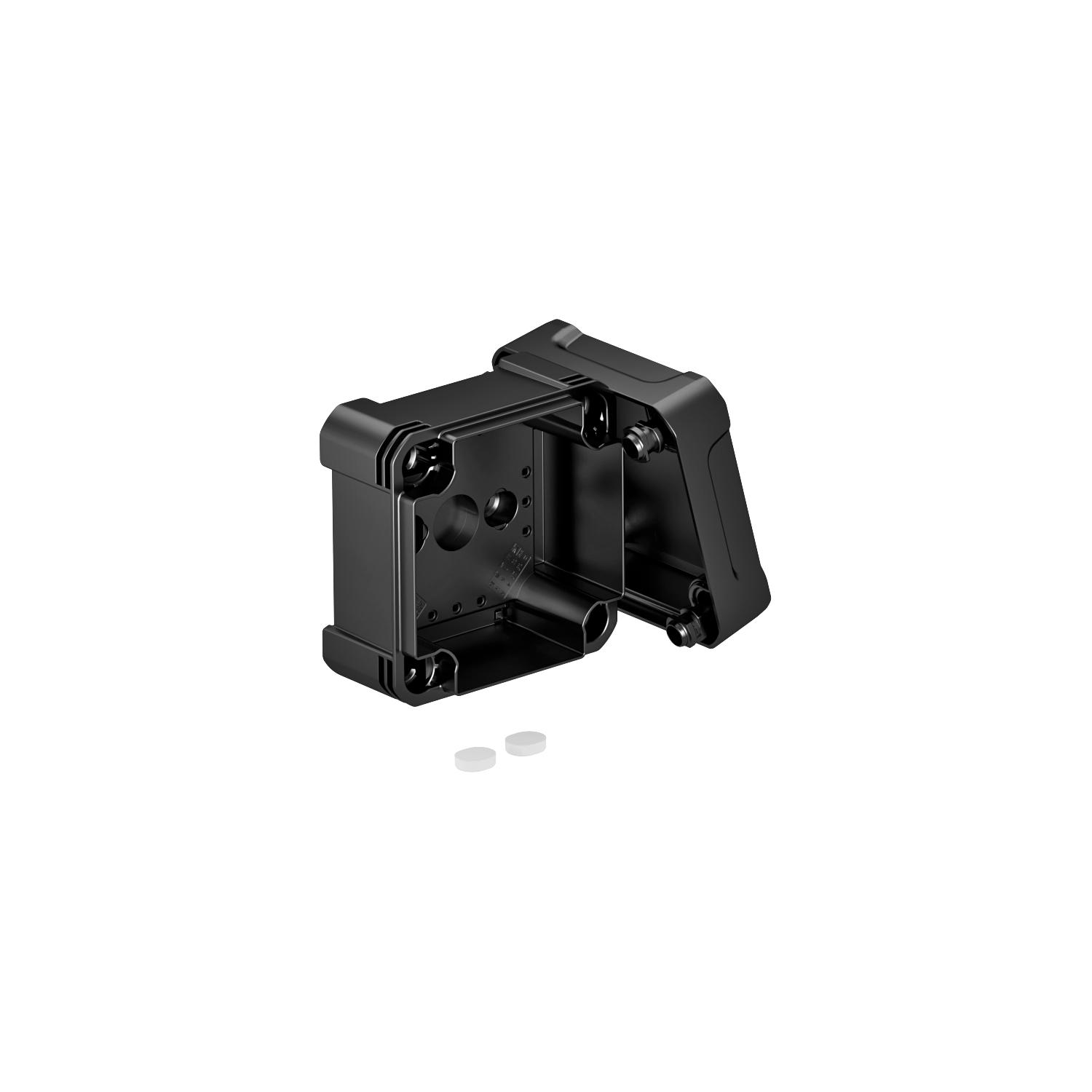

Junction box for the connection of cables in indoor and outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.
- Technical data
-

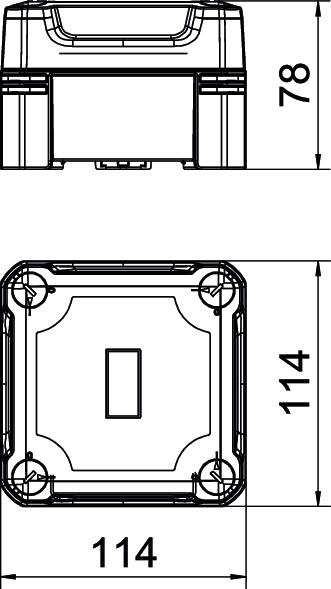

Dimensions
Clear internal dimensions 102x102x60 mm Colour Graphite black; RAL 9011 Cover fastening Screwed Dimension 114x114x78 Extension option no Height 78 mm Length 114 mm Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Square Suitable for outdoor use yes Weatherproof yes Width 114 mm with lid yes - All types
- Downloads
-
Data sheet X04C SW / 2005598 , 0.25MB , pdfDeclaration of conformity X04C SW / 2005598 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 2.29MB , pdfInstructions for use Gabarit de perçage X04 , 0.03MB , pdf
