Product description

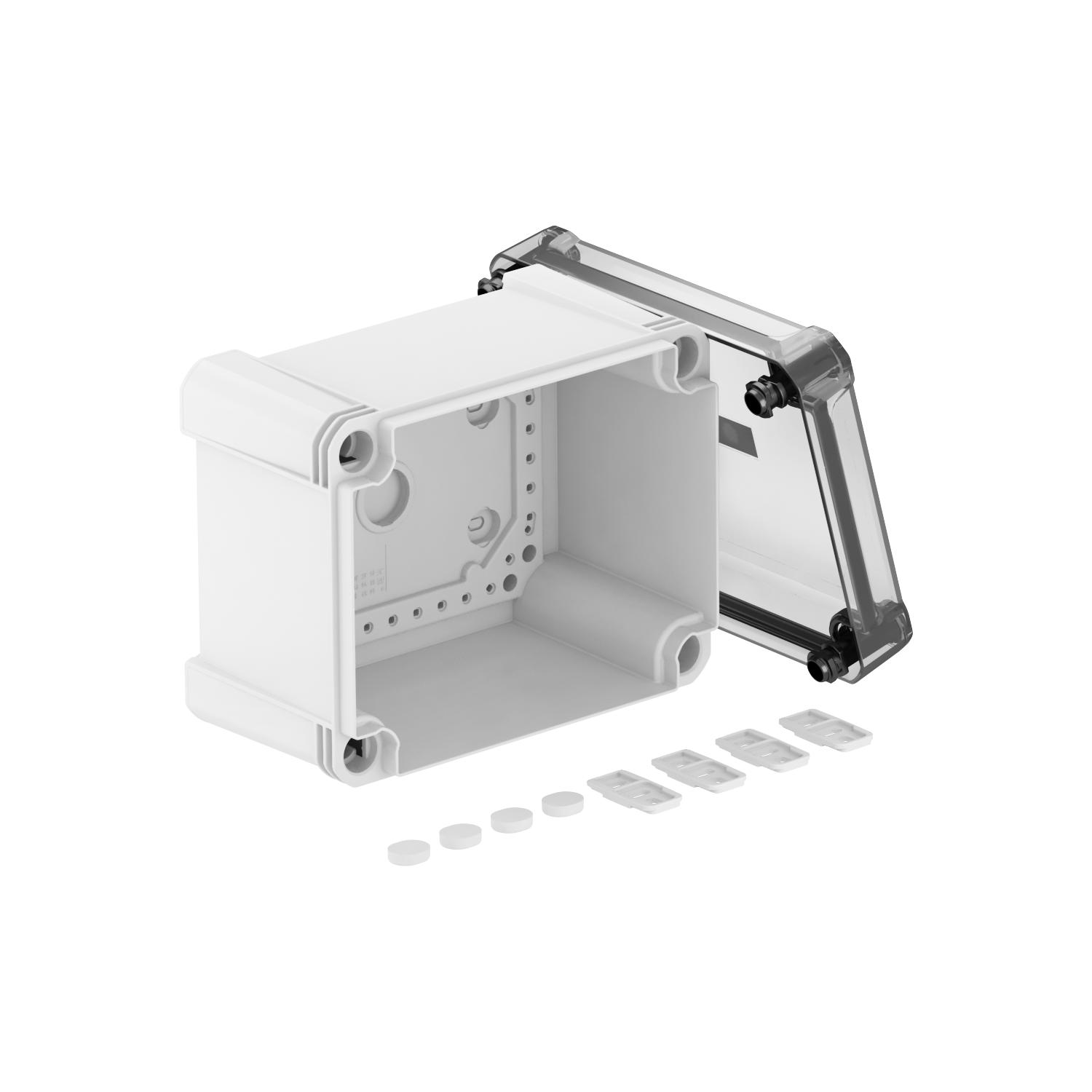

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.
- Technical data
-

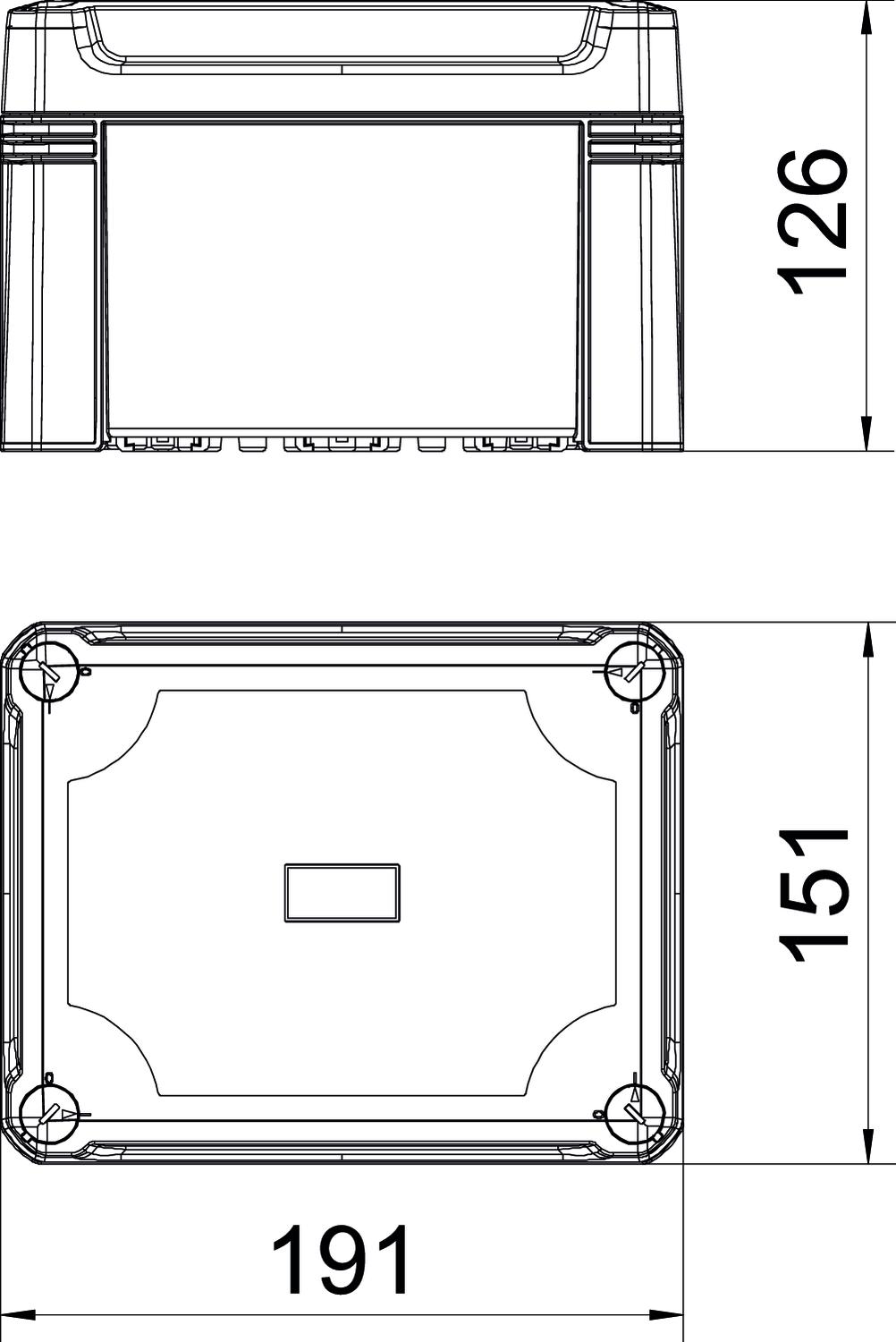

Dimensions
Clear internal dimensions 177x137x110 mm Colour Grey / transparent Cover fastening Screwed Dimension 190x150x125 Extension option no Height 126 mm Length 191 mm Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Square Suitable for outdoor use yes Transparent lid yes Weatherproof yes Width 151 mm with lid yes - All types
- Downloads
-
Data sheet X10C LGR-TR / 2005536 , 0.30MB , pdfDeclaration of conformity X10C LGR-TR / 2005536 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 2.29MB , pdfInstructions for use Drilling template X10, SDB03, SDB05 , 0.09MB , pdf
