Empty housing X 10 with hat profile rail

Item no. 2005494 | EAN 4012196582839

Item no. / Types

Clear internal dimensions	177x137x110 mm

Protection rating	IP67

Colour

Product description

Product description

Junction box with hat profile rail for the connection of cables in indoor and outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

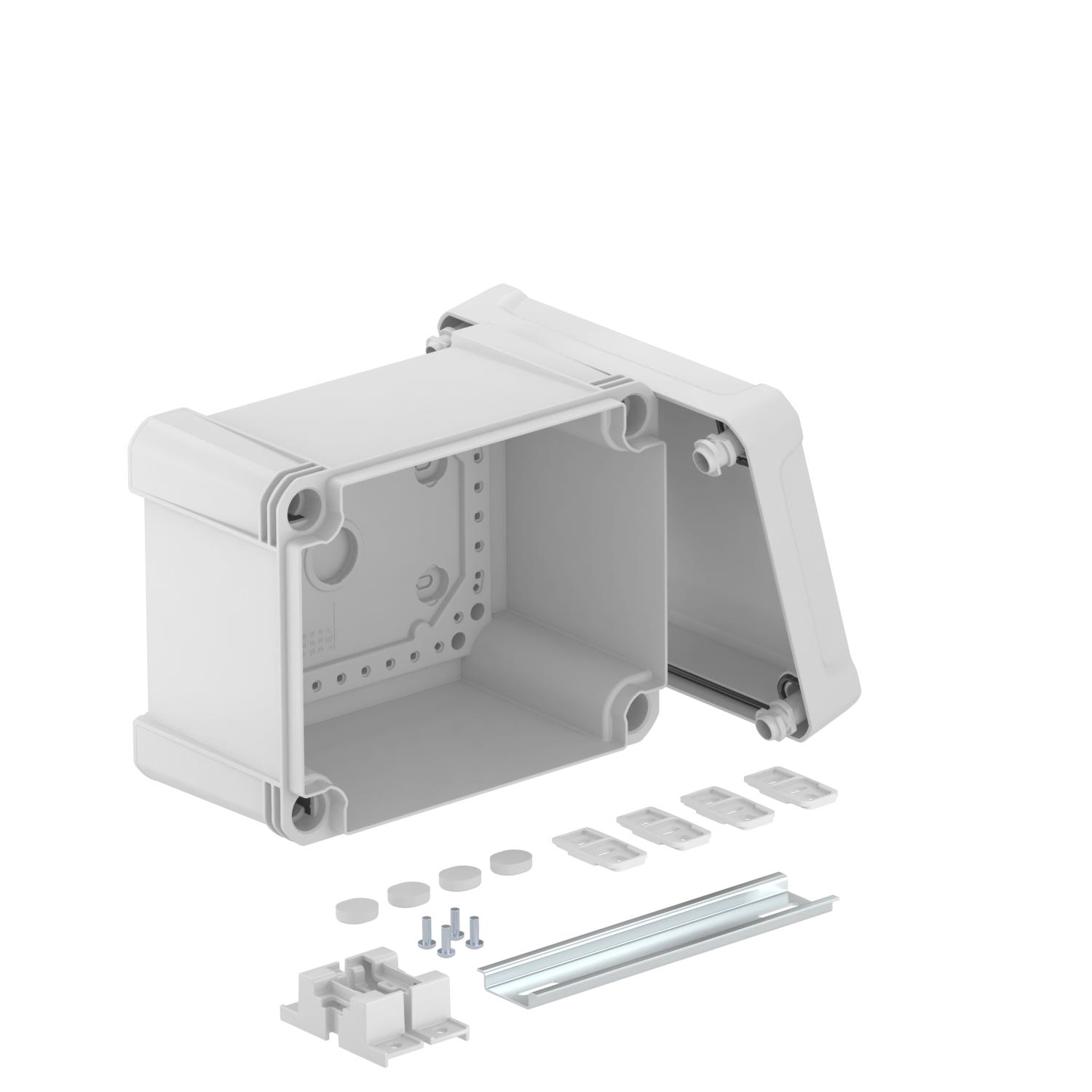

With hat profile rail, type 2069, and fastening set.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.

Technical data

Dimensions

Clear internal dimensions	177x137x110 mm
Colour	Light grey; RAL 7035
Cover fastening	Screwed

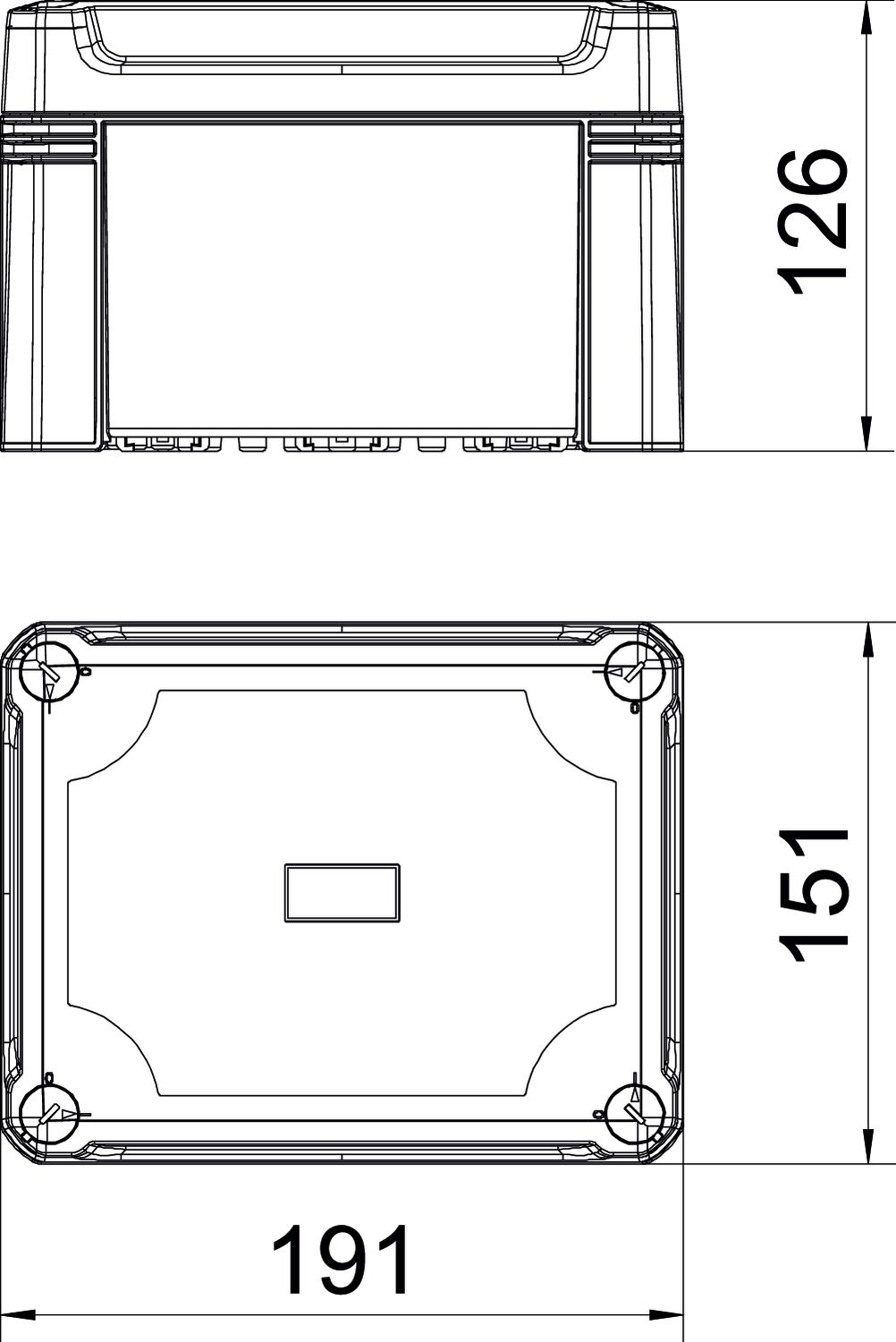

Dimension	190x150x125
Extension option	no
Height	126 mm
Length	191 mm
Material	Polycarbonate
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP67
Protection rating IK code	IK09
Shape	Square
Suitable for outdoor use	yes
Weatherproof	yes
Width	151 mm
with lid	yes
