Empty housing X 25 271x187x110 | | IP67 | | Grey / transparent

Empty housing X 25

Item no. 2005544 | EAN 4012196577804

Item no. / Types

Clear internal dimensions	271x187x110 mm

Protection rating	IP67

Colour

Product description

Product description

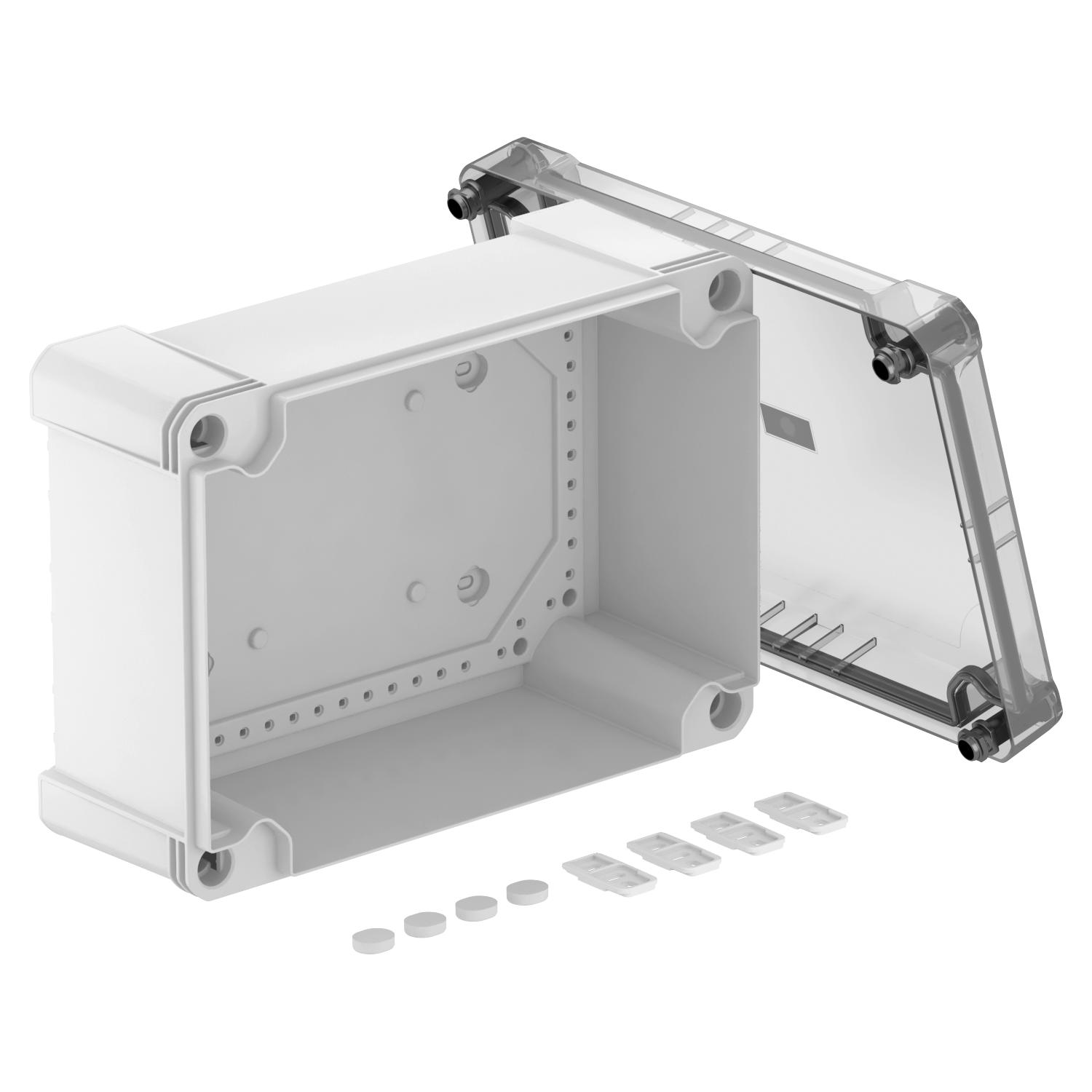

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.

Technical data

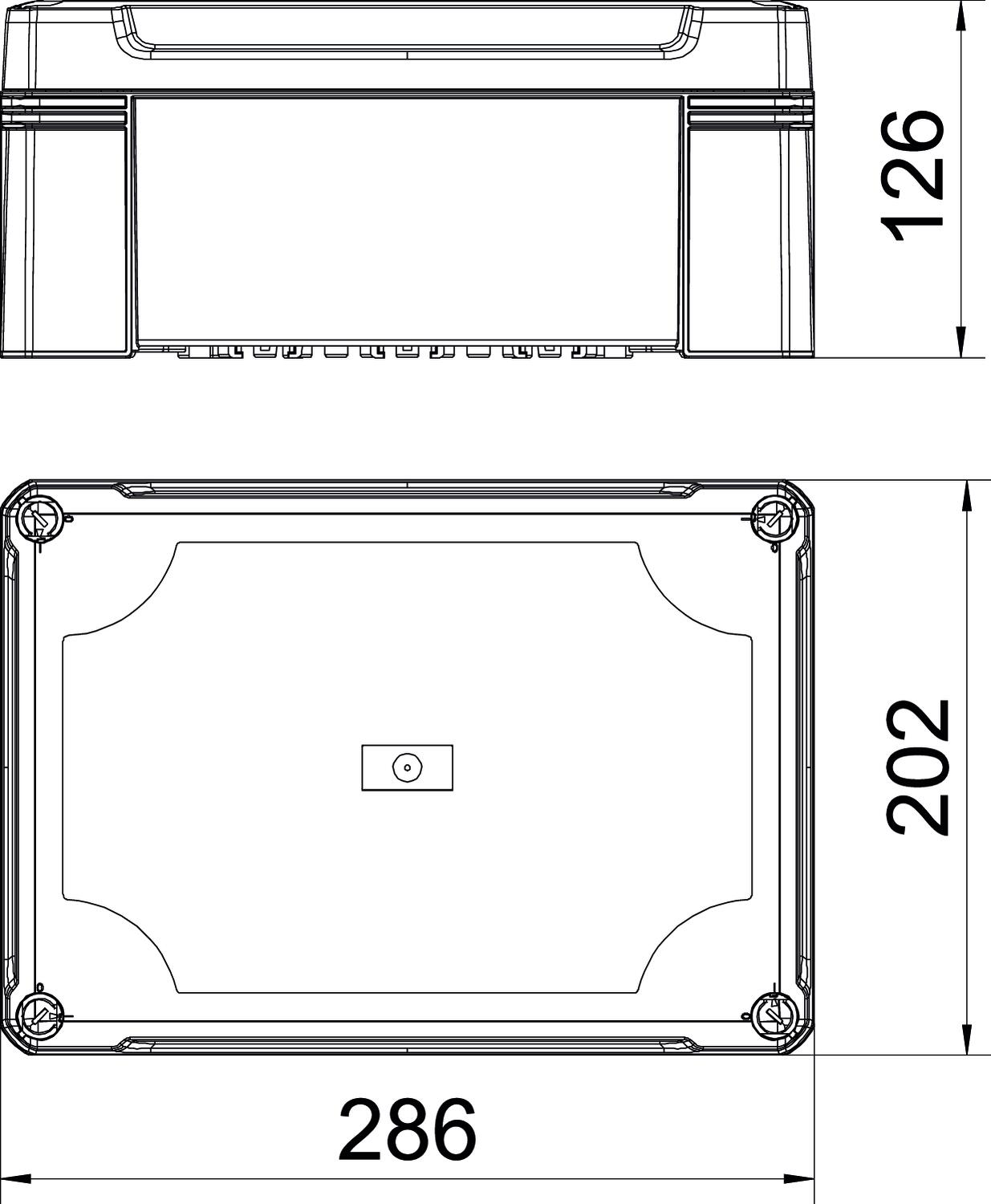

Dimensions

Clear internal dimensions	271x187x110 mm
Colour	Grey / transparent
Cover fastening	Screwed
Dimension	286x202x125
Extension option	no
Height	126 mm
Length	286 mm
Material	Polycarbonate
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP67
Protection rating IK code	IK09
Shape	Rectangular
Suitable for outdoor use	yes
Transparent lid	yes
Weatherproof	yes
Width	202 mm
with lid	yes

All types

All types

Types	Clear internal dimensions	Protection rating	Colour	Item no.	Quantity	SSU
X25C LGR	271x187x110 mm	IP67	Light grey; RAL 7035	2005474	piece	2 piece
X25C LGR-TR	271x187x110 mm	IP67	Grey / transparent	2005544	piece	2 piece
X25C SW	271x187x110 mm	IP67	Graphite black; RAL 9011	2005614	piece	2 piece
