- Product description
-
Product description

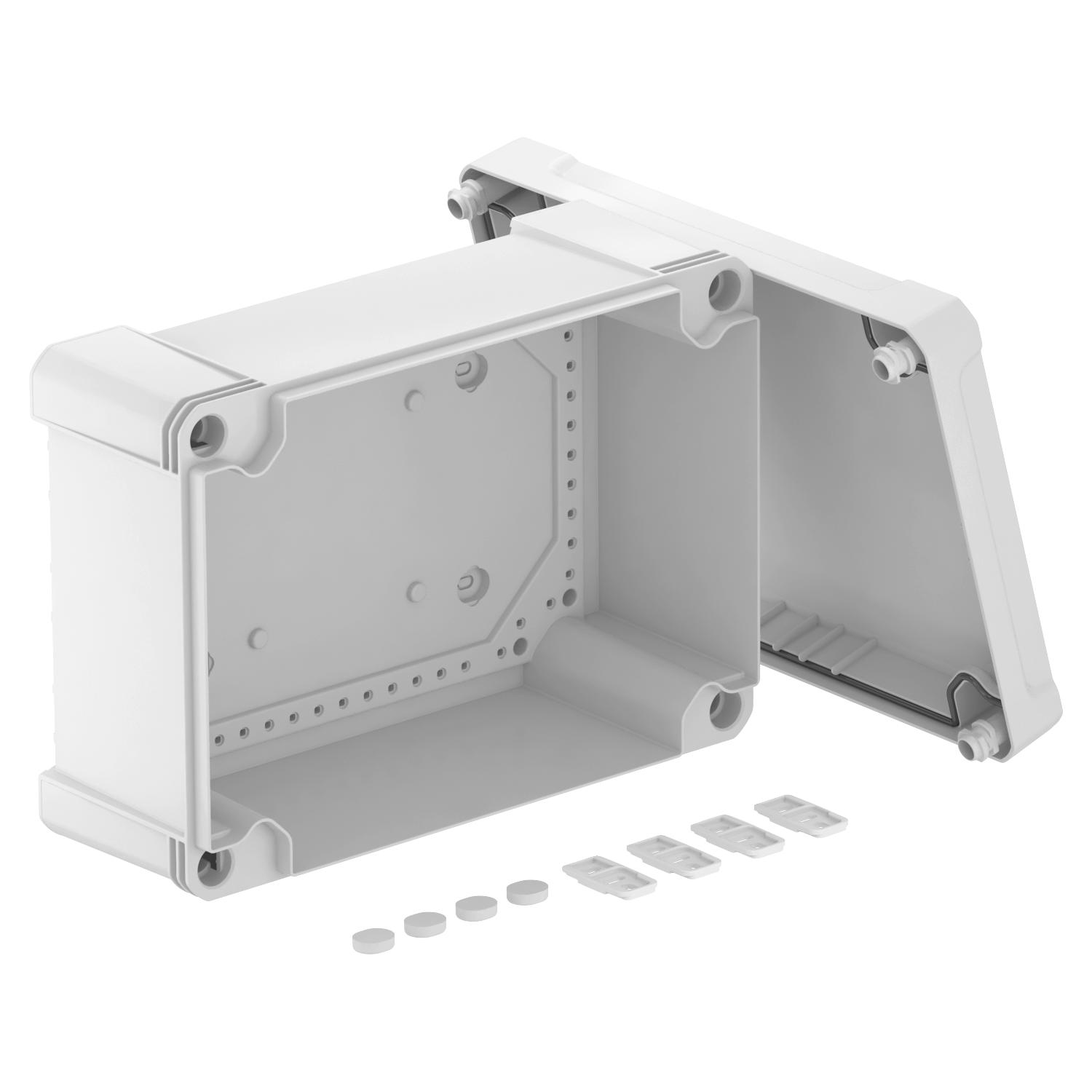

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.
- Technical data
-

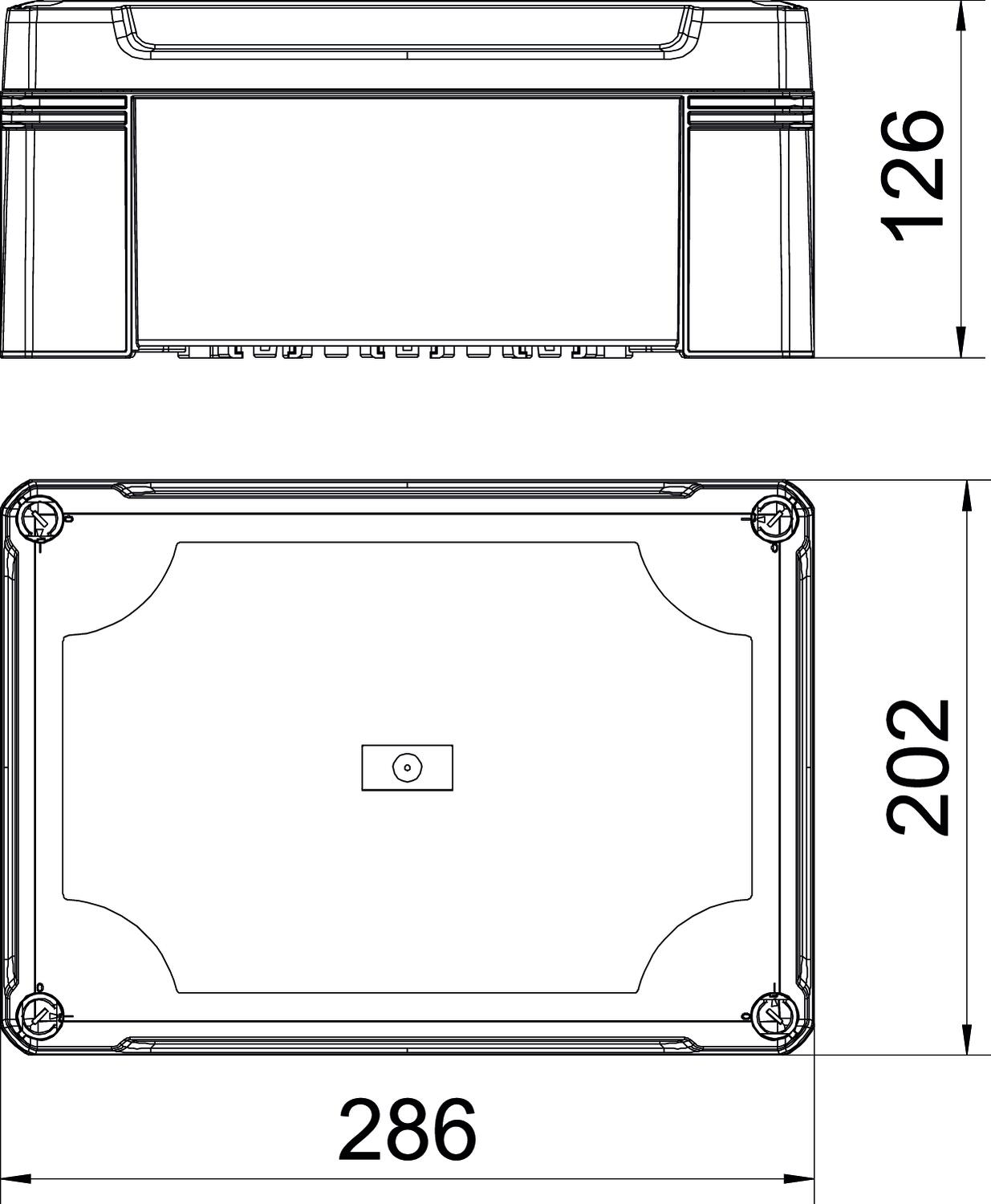

Dimensions
Clear internal dimensions 271x187x110 mm Colour Light grey; RAL 7035 Cover fastening Screwed Dimension 286x202x125 Extension option no Height 126 mm Length 286 mm Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Rectangular Suitable for outdoor use yes Weatherproof yes Width 202 mm with lid yes - All types
- Downloads
-
Data sheet X25C LGR / 2005474 , 0.33MB , pdfDeclaration of conformity X25C LGR / 2005474 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 2.29MB , pdfInstructions for use Drilling template X25, SDB12 , 0.09MB , pdf
