End cap MS4022
Item no. 1124555 | EAN 4012195785316
- Product description
-
Product description

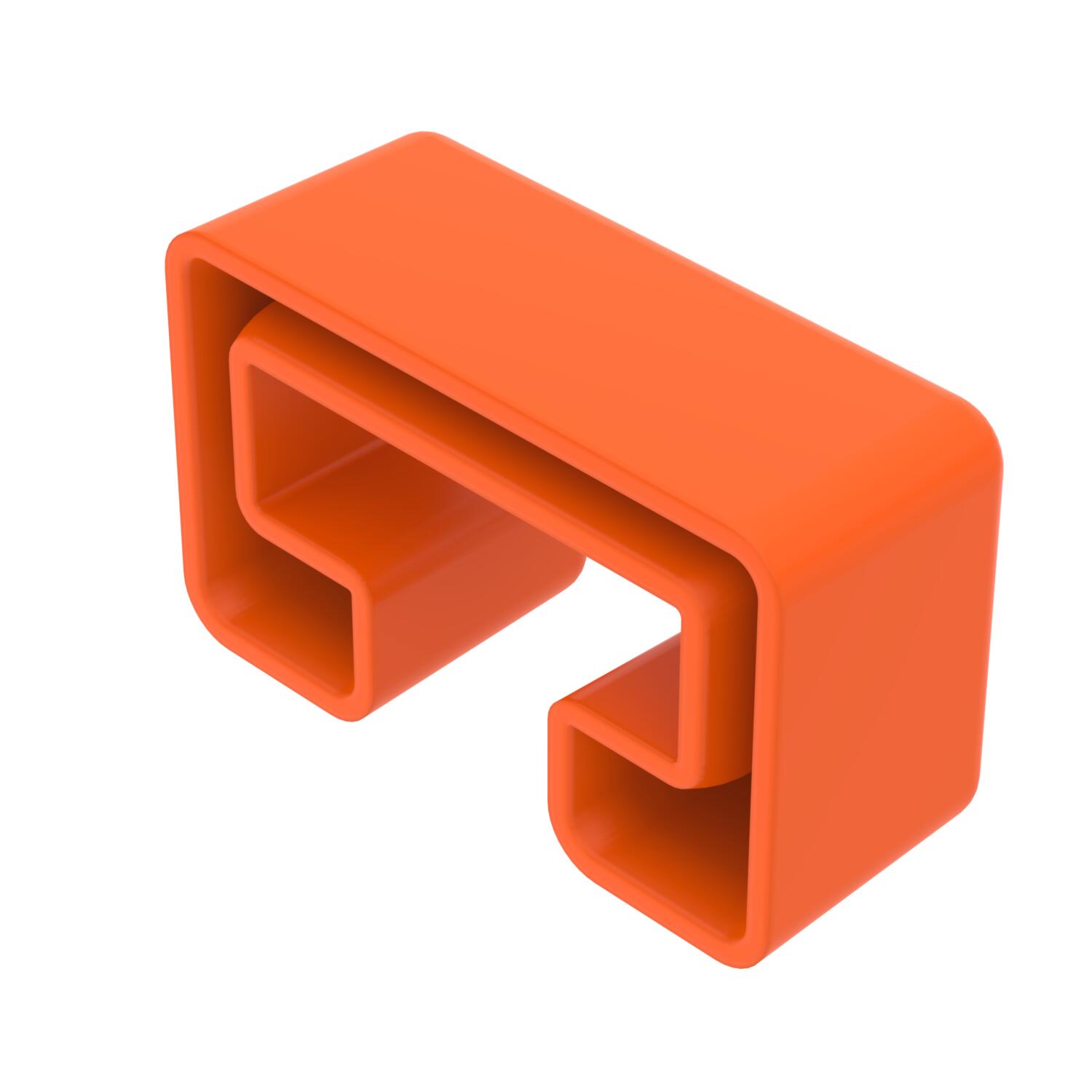

End caps for profile rail, type MS4022.
-
- Technical data
-
Technical data
Colour Pastel orange; RAL 2003 Dimension 45x18mm Halogen-free yes Material Polyethylene Suitable for profile shapes C profile Version for End cap Dimensions

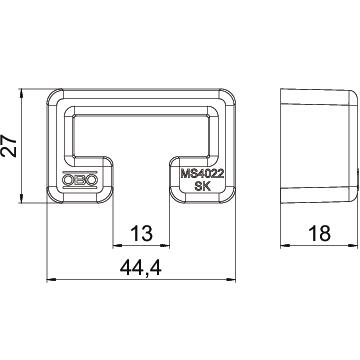

Height 18 mm Length 27 mm Width 44,4 mm - All types
- Downloads
-
Data sheet MS4022 SK / 1124555 , 0.18MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity MS4022 SK / 1124555 , 0.05MB , pdfREACH Declaration of conformity MS4022 SK / 1124555 , 0.12MB , pdfRoHS Declaration of conformity MS4022 SK / 1124555 , 0.12MB , pdf
