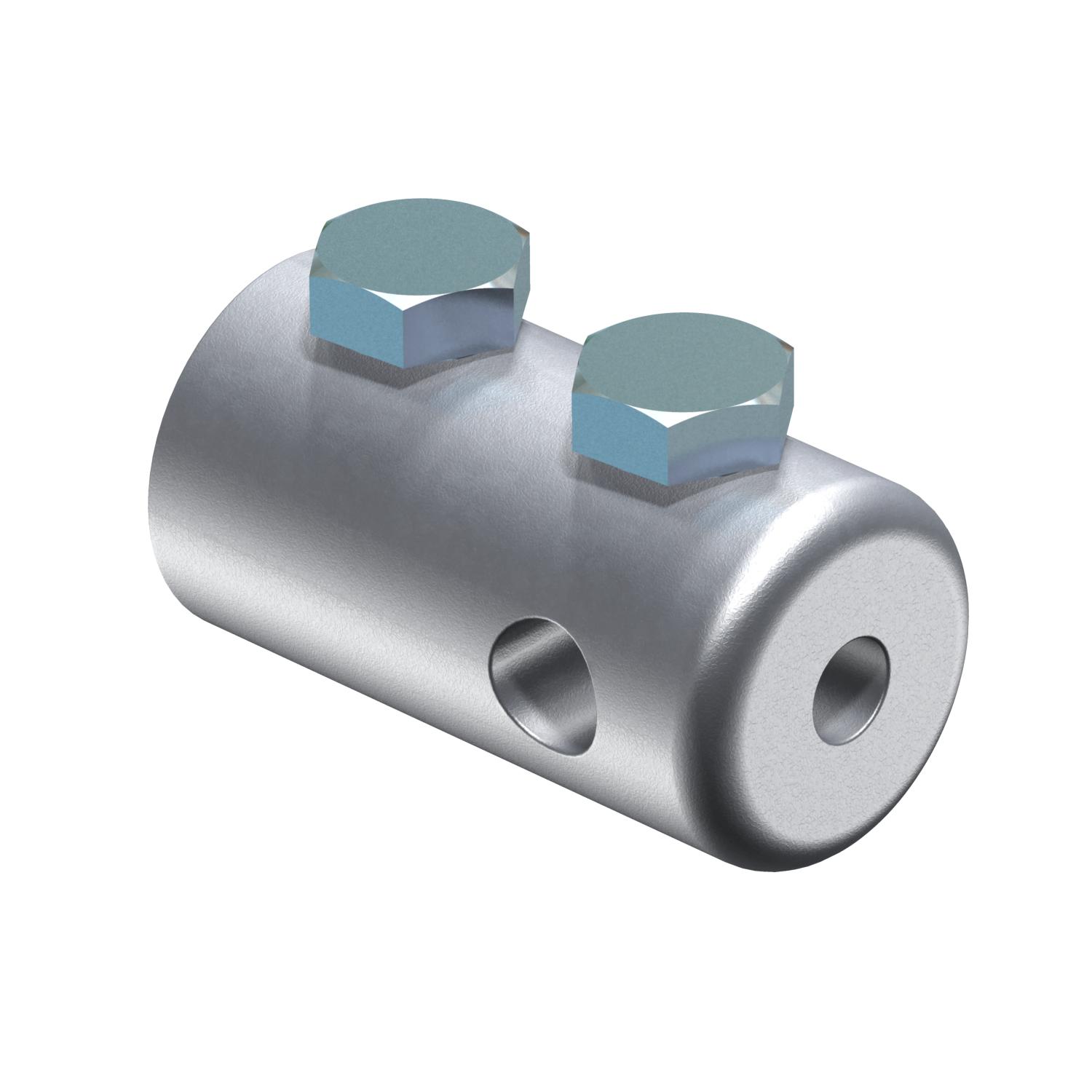

End piece

Item no. 5408395 | EAN 4012195613275

60 mm
Product description
Product description
• End piece for attaching round conductors Rd 8-10 and air-termination tips, type 101 ISP

• With M10 internal thread, e.g. for mounting a Vario quick connector for fixed conductor routing at intersections

• With M10 bolts
Technical data

Technical data

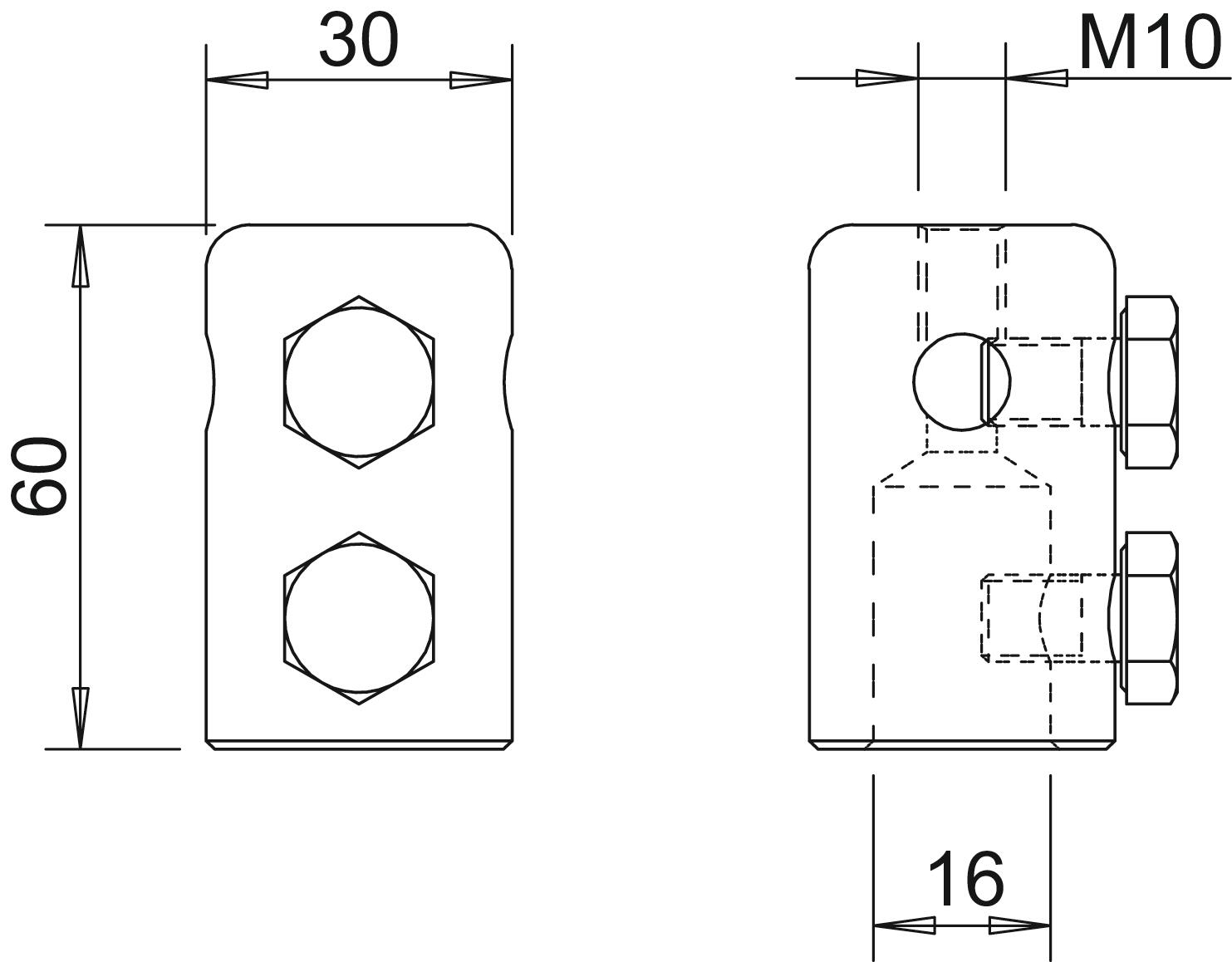

Connection Round conductor
Dimension 16mm
Dimension d min. 30 mm
Dimension d Ø 16 mm
Dimension L 60 mm
Length 60 mm
Material Aluminium
All types

All types

Types Dimension d min. Dimension d Ø Dimension L Item no. Quantity SSU

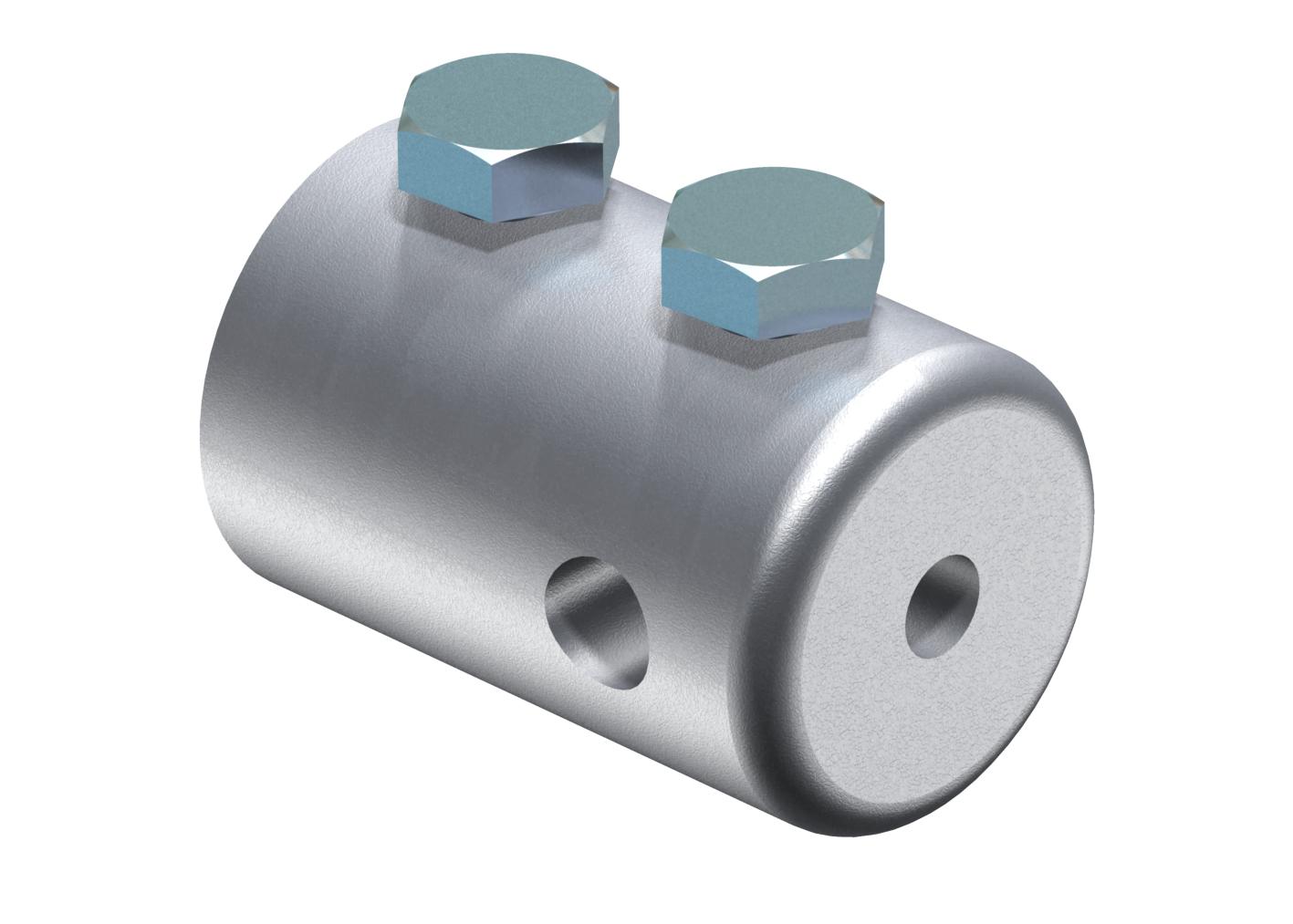

101 IES 35 mm 20 mm 60 mm 5408393
10 piece
101 IES-16 30 mm 16 mm 60 mm 5408395
10 piece
