End piece BRA ES 70130 | | | | aluminium
morepic-1 morepic-2

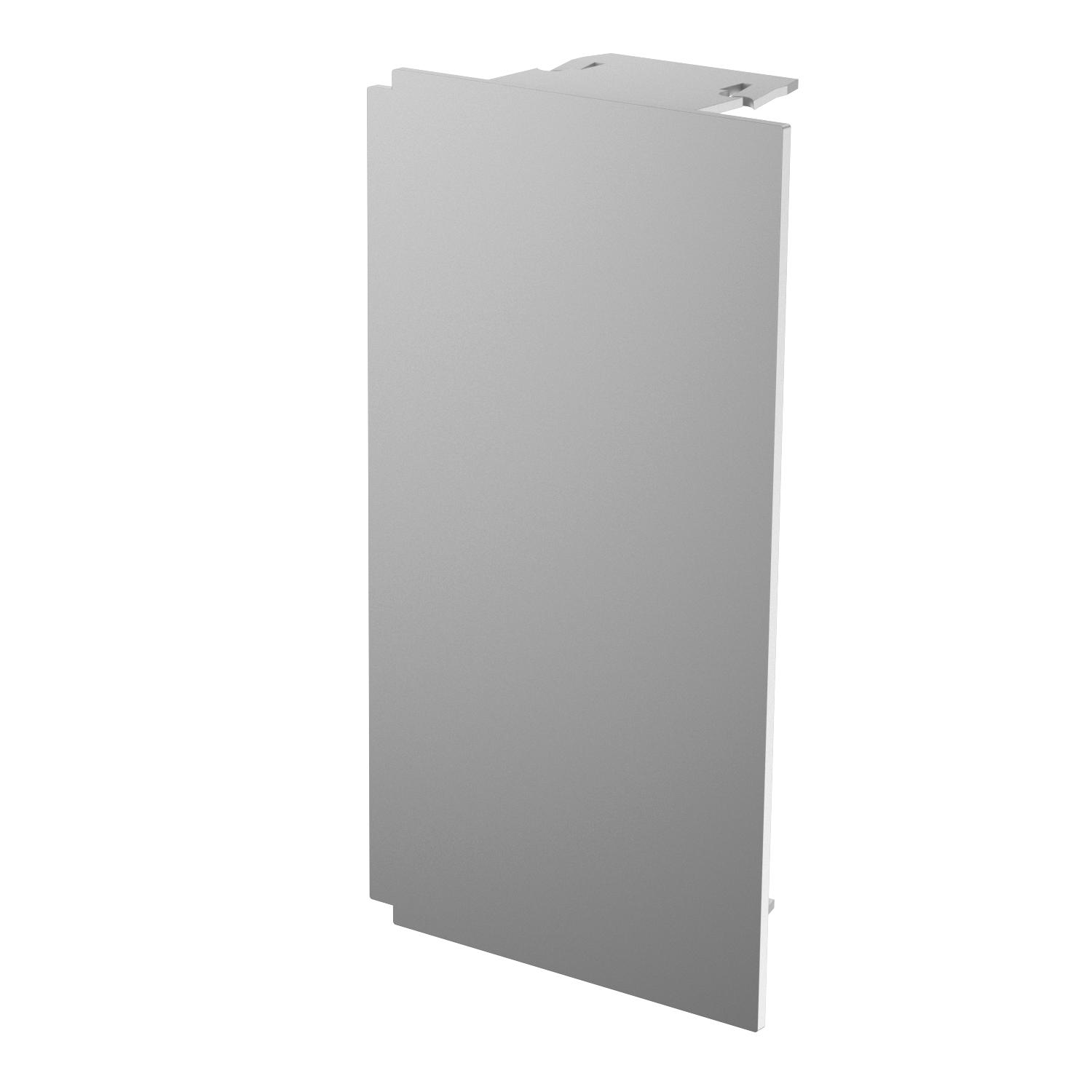

End piece BRA ES 70130

Item no. 6133292 | EAN 4012196735730

6133292 / BRA ES70130 EL
aluminium
Product description
Product description
End piece as a fitting for the Signa Style device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour aluminium
Cut lamination no

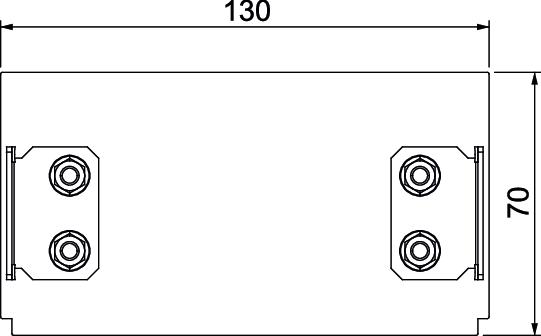

Dimension 70x130x37
Fastening type Lockable
for duct width 130 mm
for trunking height 70 mm
Halogen-free yes
Height 70 mm
Length 37 mm
Material Aluminium
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film yes
Suitable for Left/right
Surface Anodised
Version for Symmetrical
Width 130 mm
All types

All types

Types Colour Item no. Quantity SSU
BRA ES70130 EL aluminium 6133292
1 piece
Downloads

Download

EU declaration of conformity BRA ES70130 EL / 6133292 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
