End piece, duct height 40 mm, pure white 105 | 41 | Pure white; RAL 9010
morepic-1

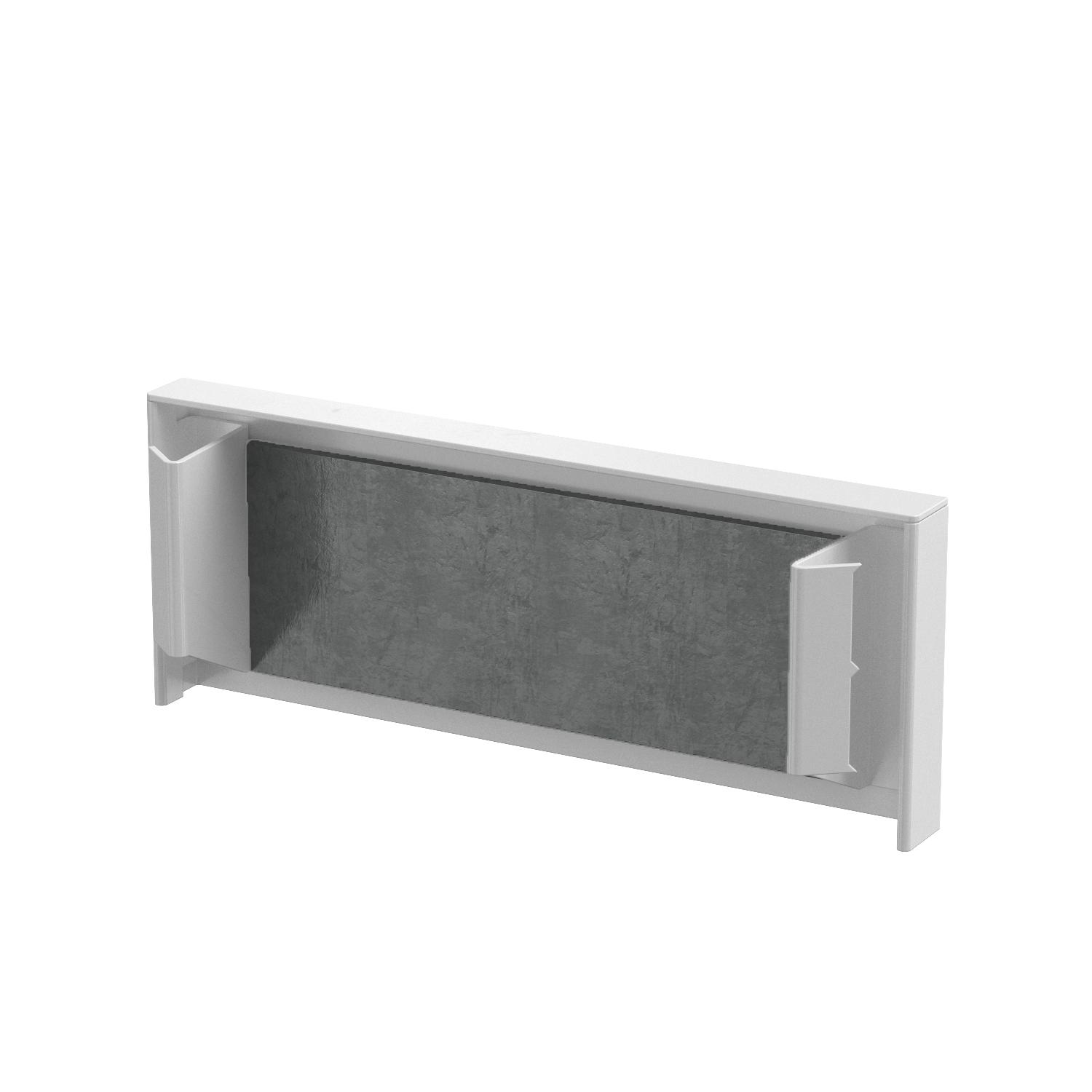

End piece, duct height 40 mm, pure white

Item no. 7218088 | EAN 4012197310264

7218088 / PLM EP 0410 RW
105 mm
41 mm
Pure white; RAL 9010
Product description
Product description
End piece with intumescent fire protection mesh to close the PYROLINE® Rapid PLM installation duct.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Pure white; RAL 9010

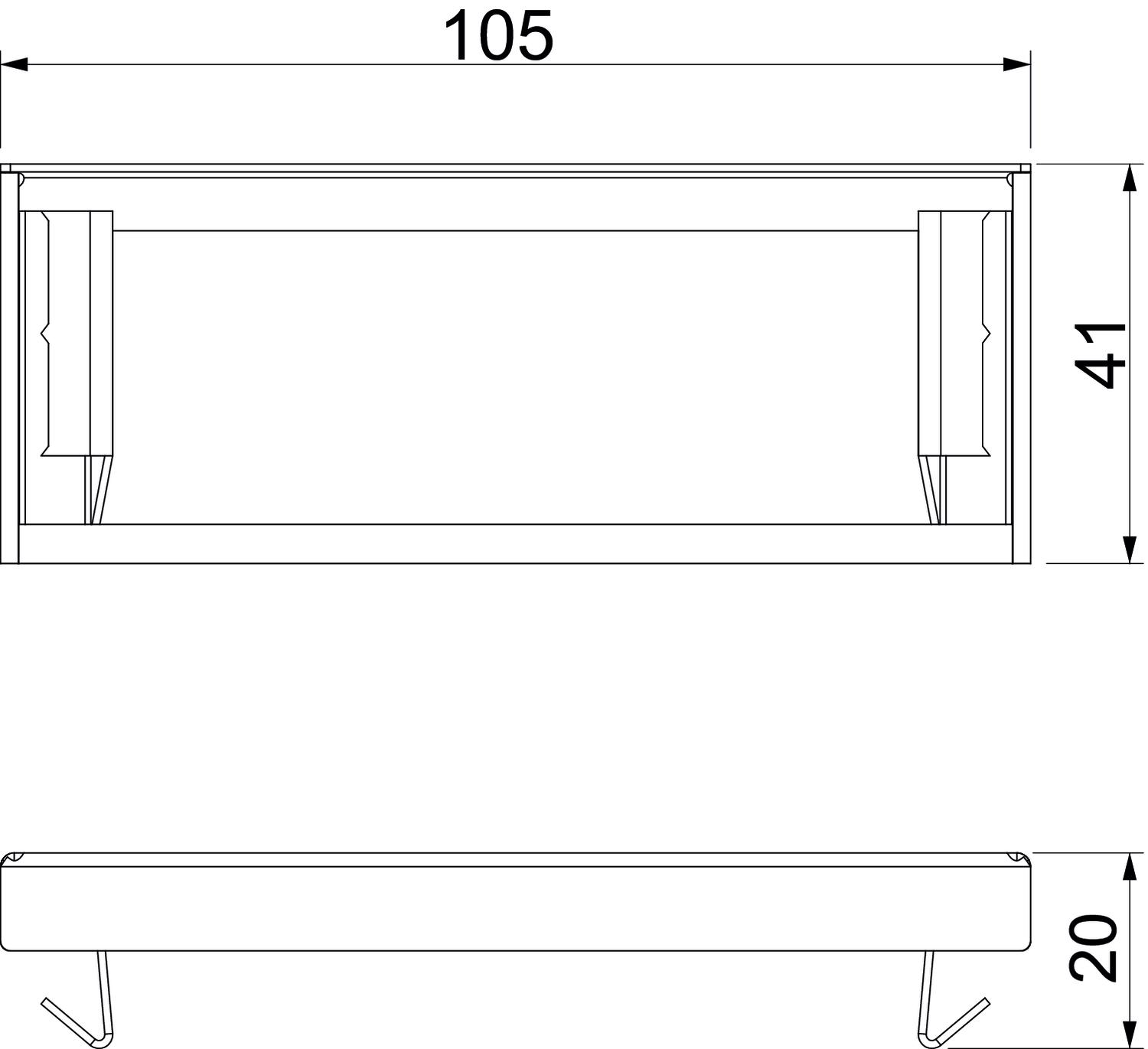

Dimension 105x20x41
Dimension B 105 mm
Dimension H 41 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Surface Powder-coated
Usable cross-section 1780 mm²
All types

All types

Types Dimension B Dimension H Colour Item no. Quantity SSU
PLM EP 0410 RW 105 mm 41 mm Pure white; RAL 9010 7218088
5 piece
Downloads

Download

Download

EU declaration of conformity PLM EP 0410 RW / 7218088 , 0.11MB , pdf
Download
Download

Download

Download

No invitation to tender text is available for this product.
