End piece, for cable trunking type LKM 20020 | | | Graphite black; RAL 9011
morepic-1 morepic-2

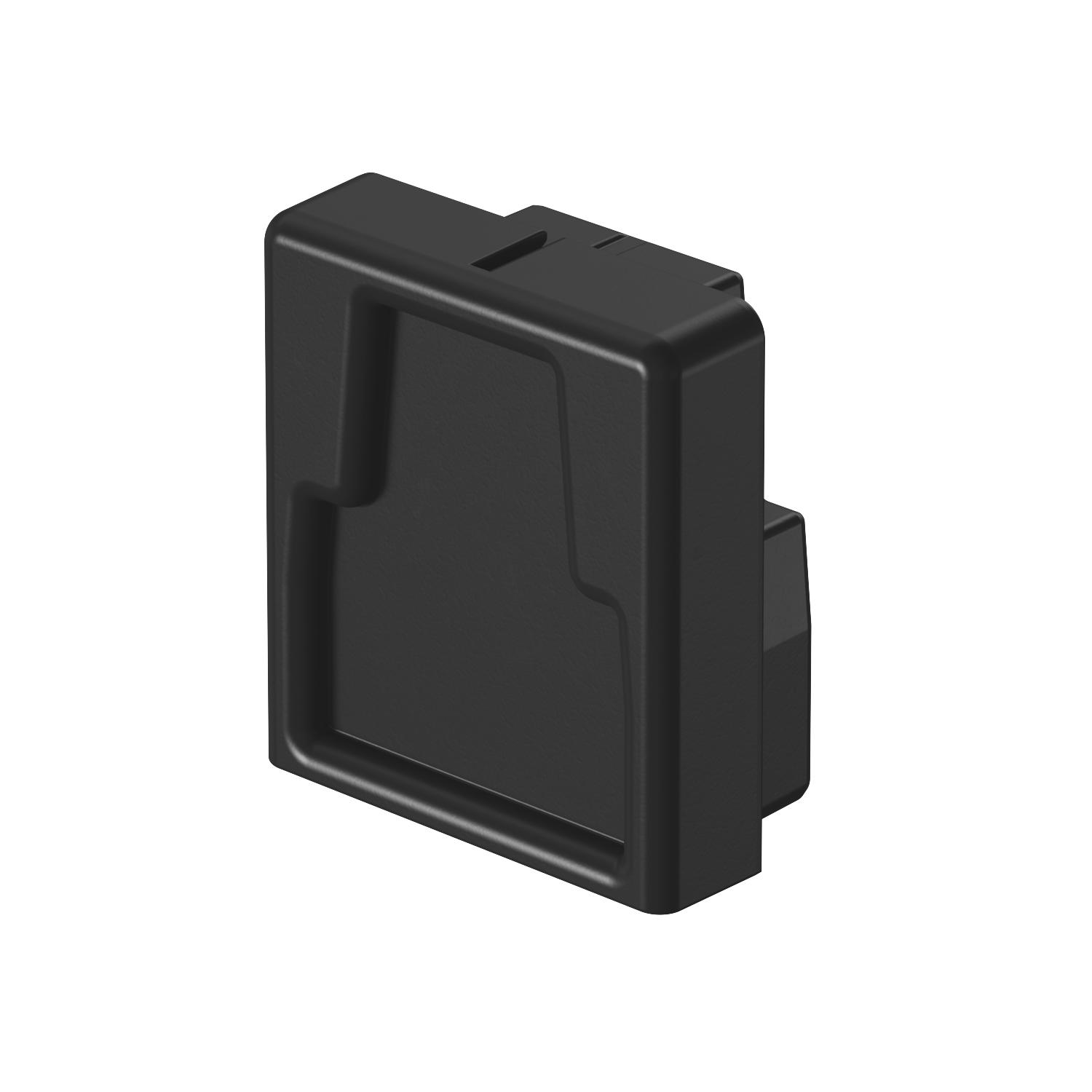

End piece, for cable trunking type LKM 20020

Item no. 6249772 | EAN 4012197377205

6249772 / LKM EK20020
Graphite black; RAL 9011
Product description
Product description
End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Graphite black; RAL 9011
Connector version Integrated connector

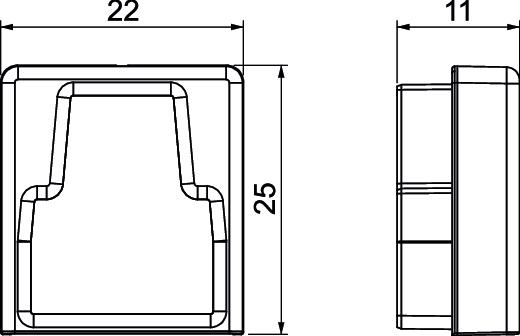

Dimension 20x20mm
Fastening type Lockable
Halogen-free yes
Height 25 mm
Length 11 mm
Maintain electrical functions no
Material Thermoplastic elastomer
Protective film no
Version for Left/right
Width 22 mm
All types

All types

Types Colour Item no. Quantity SSU
LKM EK20020 Graphite black; RAL 9011 6249772
5 piece
Downloads

Download

Download
Download

EU declaration of conformity LKM EK20020 / 6249772 , 0.10MB , pdf
Download
UK Declaration of Conformity LKM EK20020 / 6249772 , 0.14MB , pdf
Download

Mounting instructions LKM-Kanal , 0.77MB , pdf
Download

No invitation to tender text is available for this product.
