End piece, for cable trunking type LKM 30030 30 | 30 | | Pure white; RAL 9010
morepic-1 morepic-2

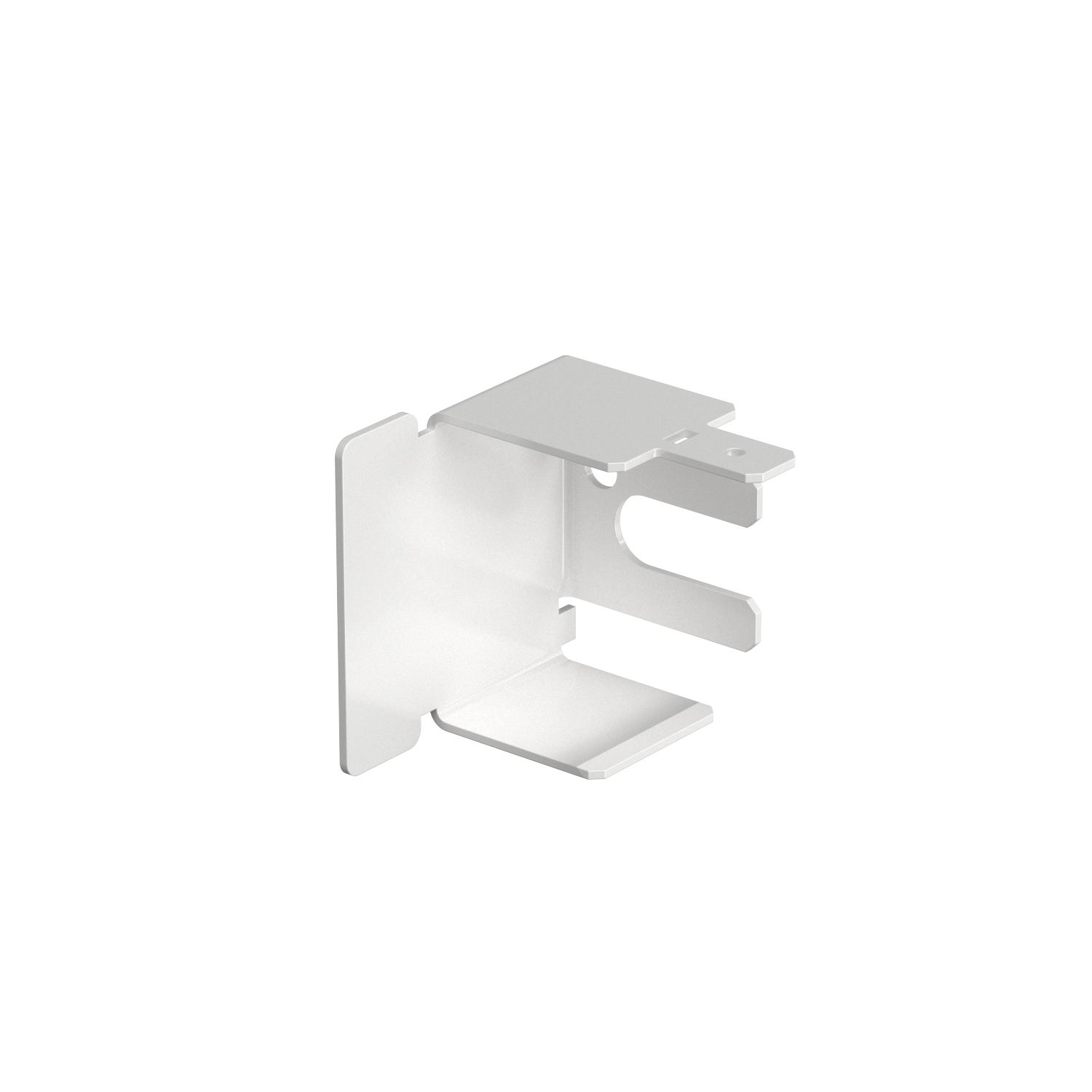

End piece, for cable trunking type LKM 30030

Item no. 6249410 | EAN 4012197269388

30 mm
30 mm
Product description
Product description
End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 30x30mm

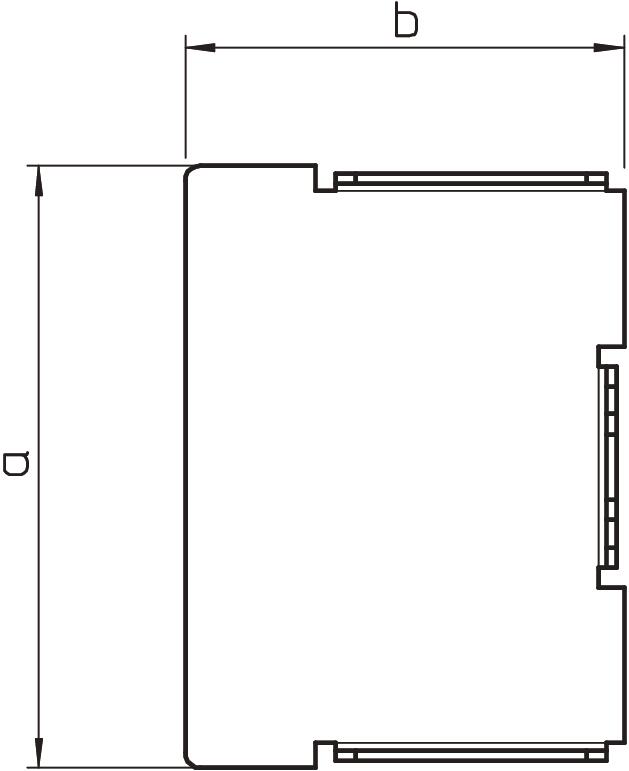

Dimension a 30 mm
Dimension b 30 mm
Fastening type Lockable
Halogen-free yes
Height 30 mm
Length 30 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Surface Strip galvanized / plastic coated
Version for Left/right
Width 30 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
LKM E30030FS 30 mm 30 mm - 6247876
10 piece
LKM E30030RW 30 mm 30 mm Pure white; RAL 9010 6249410
10 piece
Downloads

Download

Download
Download

EU declaration of conformity LKM E30030RW / 6249410 , 0.13MB , pdf
Download
UK Declaration of Conformity LKM E30030RW / 6249410 , 0.14MB , pdf
Download

Mounting instructions LKM-Kanal , 0.77MB , pdf
