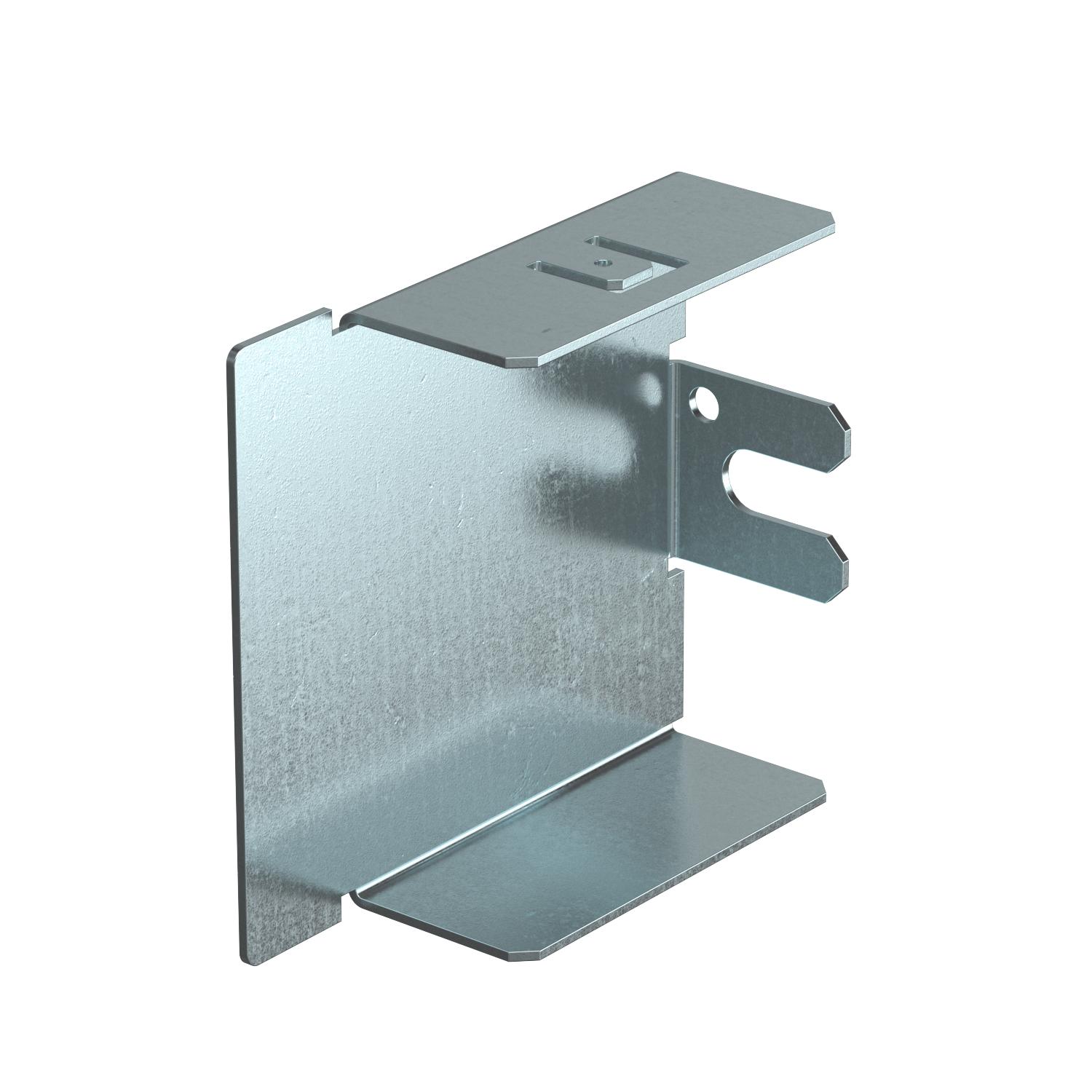

End piece, for cable trunking type LKM 60060

Item no. 6248284 | EAN 4012196503353

60 mm
64 mm
Product description
Product description
End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc
Dimension 60x60mm
Dimension a 60 mm
Dimension b 64 mm
Fastening type Lockable
Halogen-free yes
Height 64 mm
Length 21 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Surface Strip galvanized
Version for Left/right
Width 60 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
LKM E60060FS 60 mm 64 mm zinc 6248284
10 piece
LKM E60060RW 60 mm 64 mm Pure white; RAL 9010 6249795
10 piece
