End piece, for cable trunking type LKM 80080 | | | Graphite black; RAL 9011
morepic-1 morepic-2

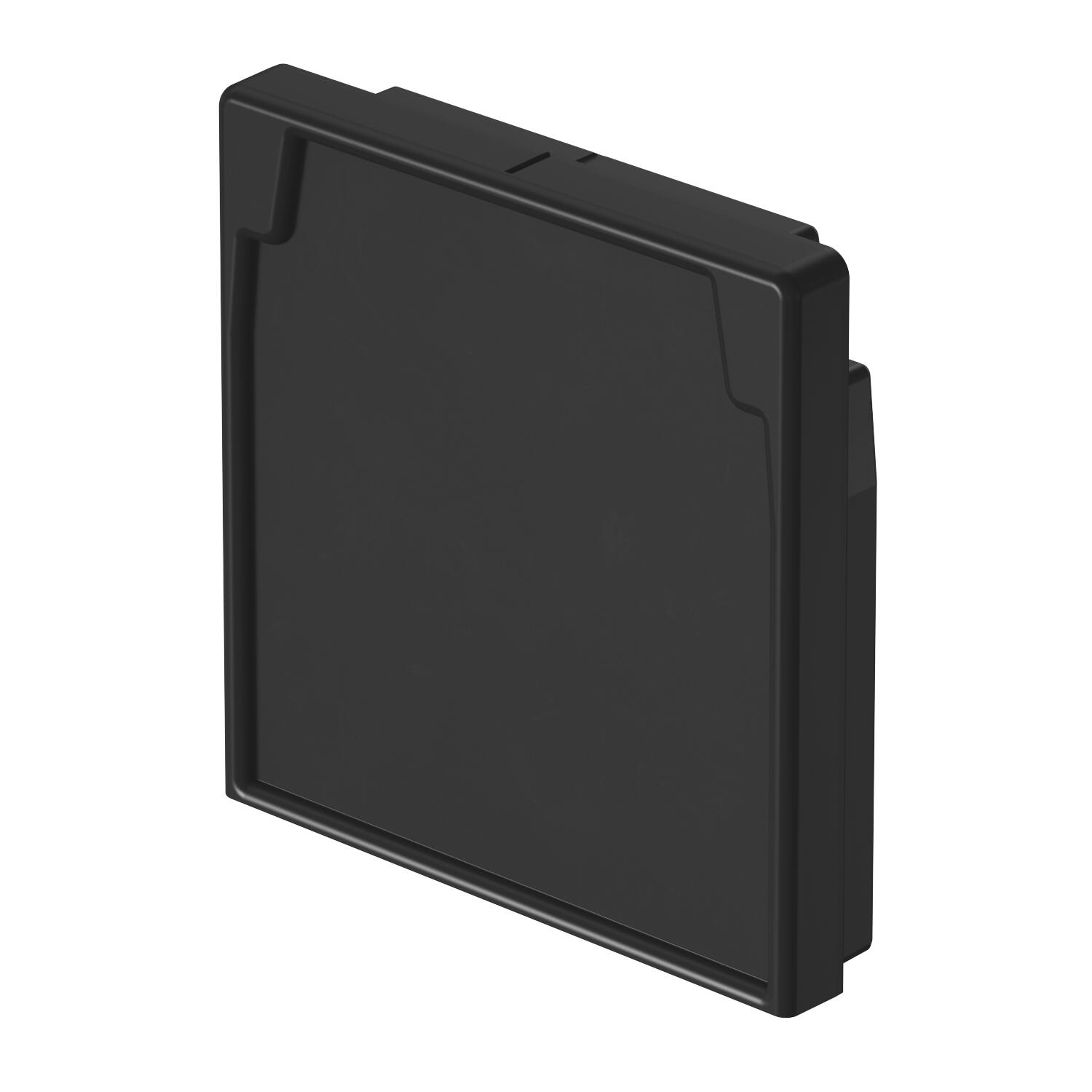

End piece, for cable trunking type LKM 80080

Item no. 6249792 | EAN 4012197377526

6249792 / LKM EK80080
Graphite black; RAL 9011
Product description

Product description

End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Graphite black; RAL 9011
Connector version Integrated connector
Dimension 80x80mm
Fastening type Lockable
Halogen-free yes
Maintain electrical functions no
Material Thermoplastic elastomer
Protective film no
Version for Left/right

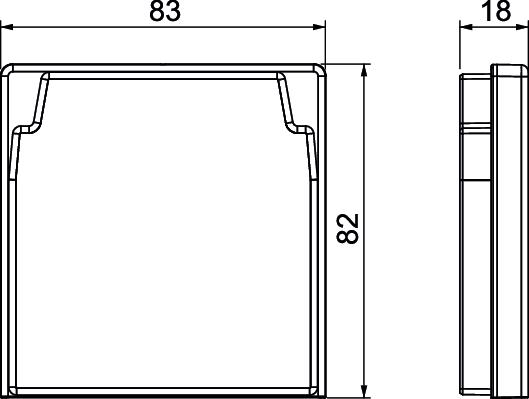

Dimensions

Height 82 mm
Length 18 mm
Width 83 mm
All types

All types

Types Colour Item no. Quantity SSU
LKM EK80080 Graphite black; RAL 9011 6249792
5 piece
Downloads

Download

Download
Download

Declaration of conformity LKM EK80080 / 6249792 , 0.17MB , pdf
Download
UK Declaration of Conformity LKM EK80080 / 6249792 , 0.14MB , pdf
