End piece, for device installation trunking Rapid 80 type GS-90110 | | | | Pure white; RAL 9010
morepic-1 morepic-2

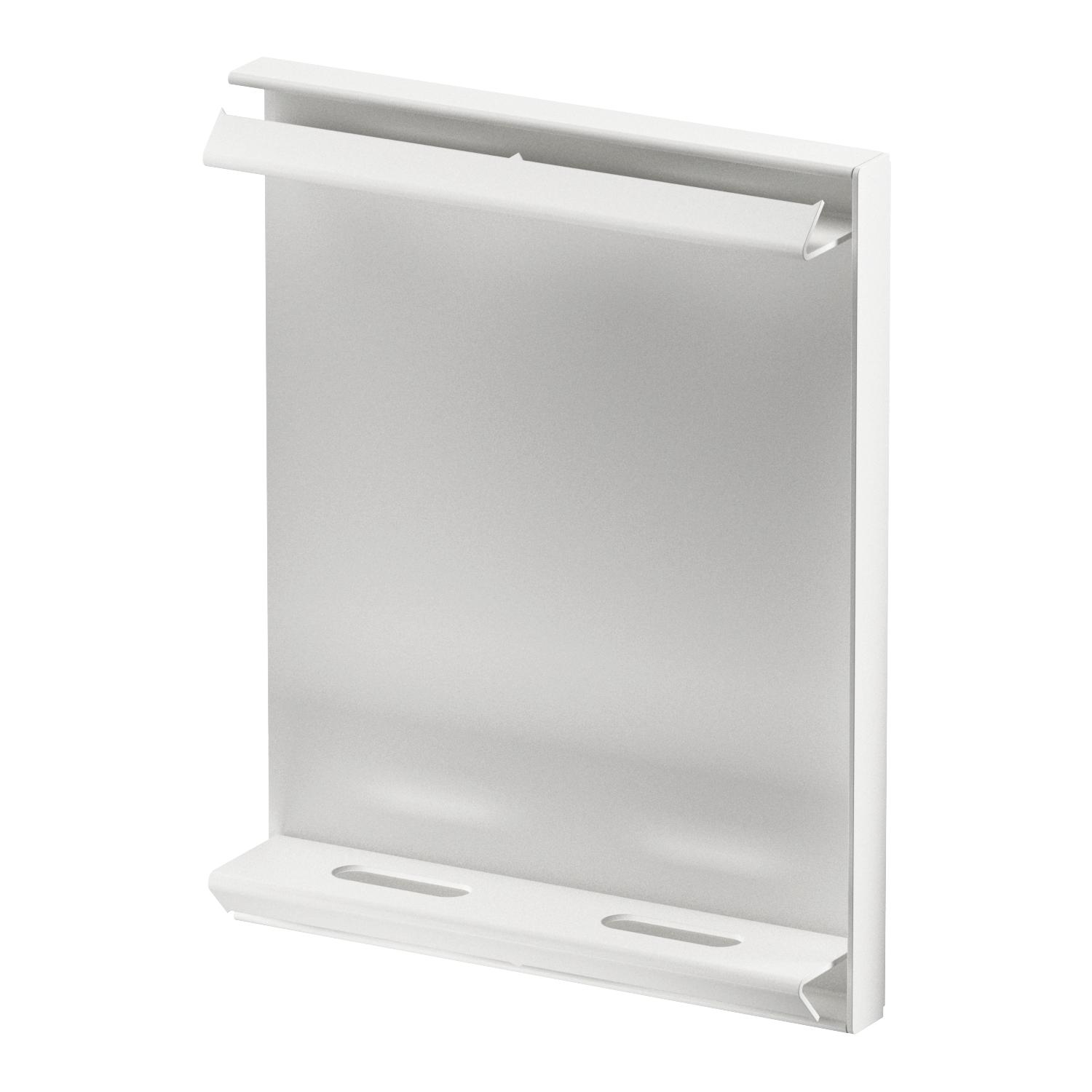

End piece, for device installation trunking Rapid 80 type GS-90110

Item no. 6277170 | EAN 4012195659921

6277170 / GS-E90110RW
Pure white; RAL 9010
Product description

Product description

End piece for GS device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Cut lamination yes
Dimension 90x110x10
Fastening type Lockable
for duct width 110 mm
for trunking height 90 mm
Halogen-free yes
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Suitable for Left/right
Version for Universal

Dimensions

Height 92 mm
Length 10 mm
Width 115 mm
All types

All types

Types Colour Item no. Quantity SSU
GS-E90110RW Pure white; RAL 9010 6277170
1 piece
Downloads

Download

Download

Declaration of conformity GS-E90110RW / 6277170 , 0.17MB , pdf
Download
UK Declaration of Conformity GS-E90110RW / 6277170 , 0.14MB , pdf
Download
REACH Declaration of conformity GS-E90110RW / 6277170 , 0.12MB , pdf
Download
RoHS Declaration of conformity GS-E90110RW / 6277170 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
