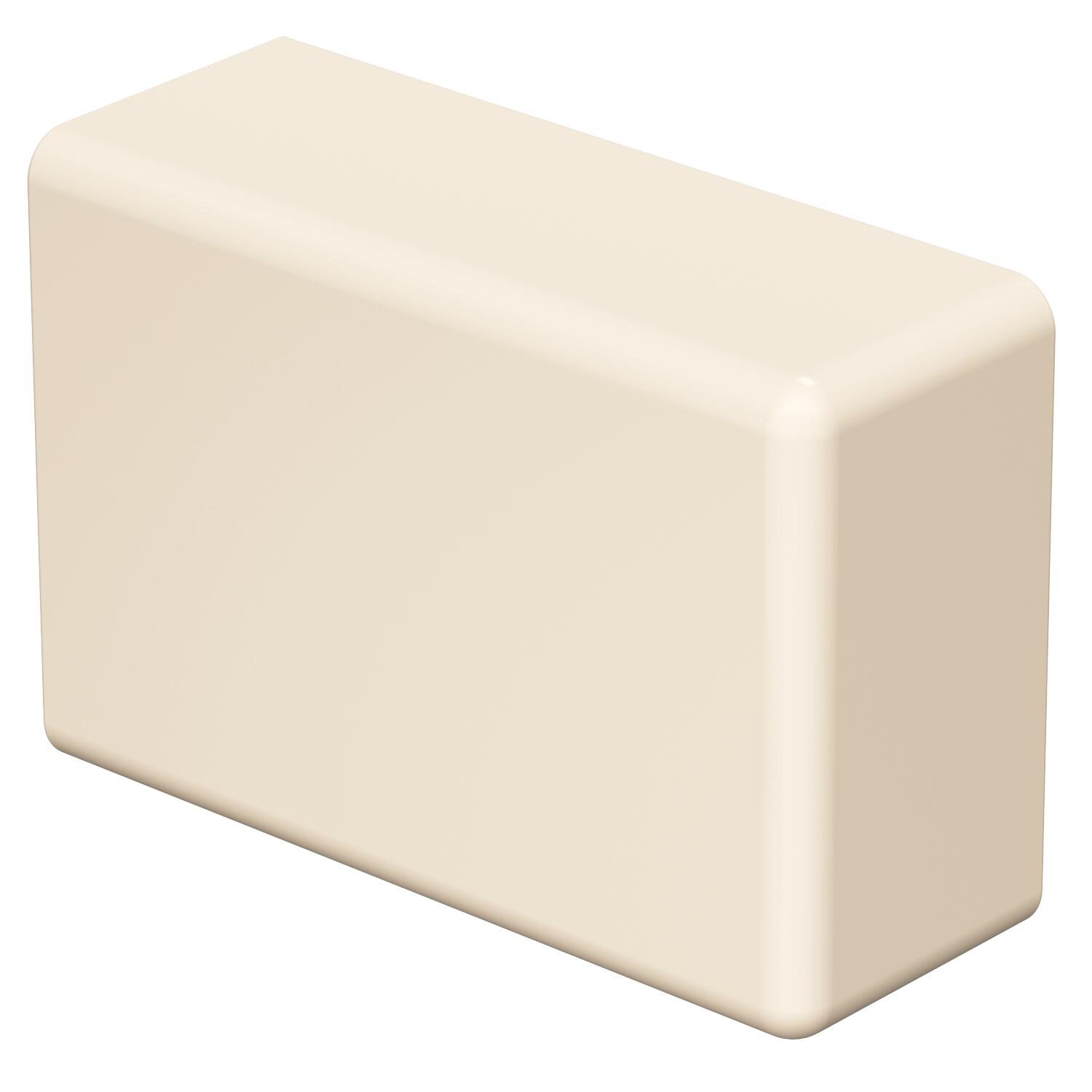

End piece, for trunking type WDK 13025
Item no. 6193088 | EAN 4012196056033
- Product description
-
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Oyster white; RAL 1013 Dimension 13x25x40 Fastening type Lockable Halogen-free no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Dimensions

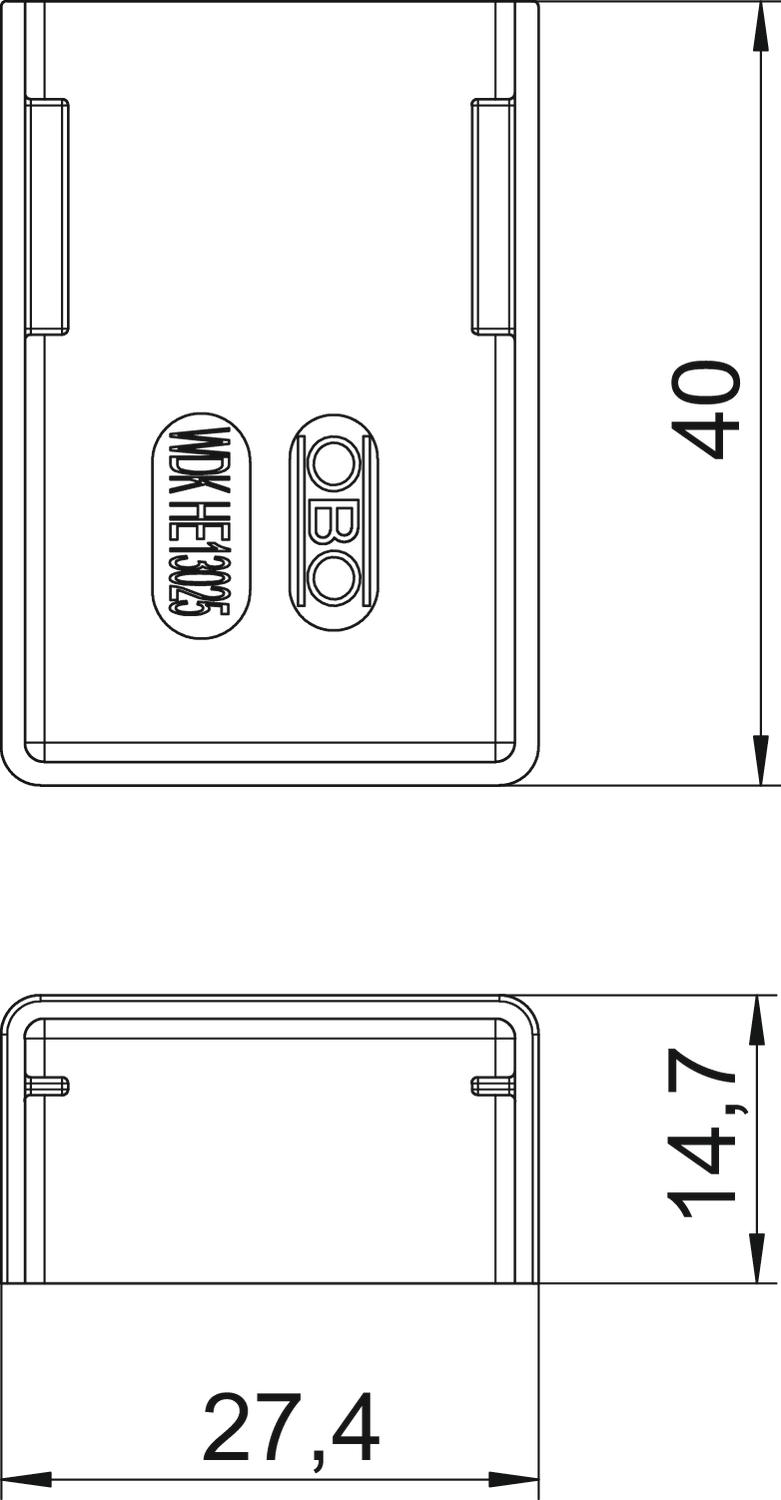

Height 13,5 mm Length 40 mm Width 25 mm - All types
- Downloads
-
Data sheet WDK HE13025PW / 6193088 , 0.22MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HE13025PW / 6193088 , 0.13MB , pdfUK Declaration of Conformity WDK HE13025PW / 6193088 , 0.14MB , pdfLabel approval VDE-Zeichengenehmigung WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
