End piece, for trunking type WDK 13025
Item no. 6193093 | EAN 4012196056026
- Product description
-

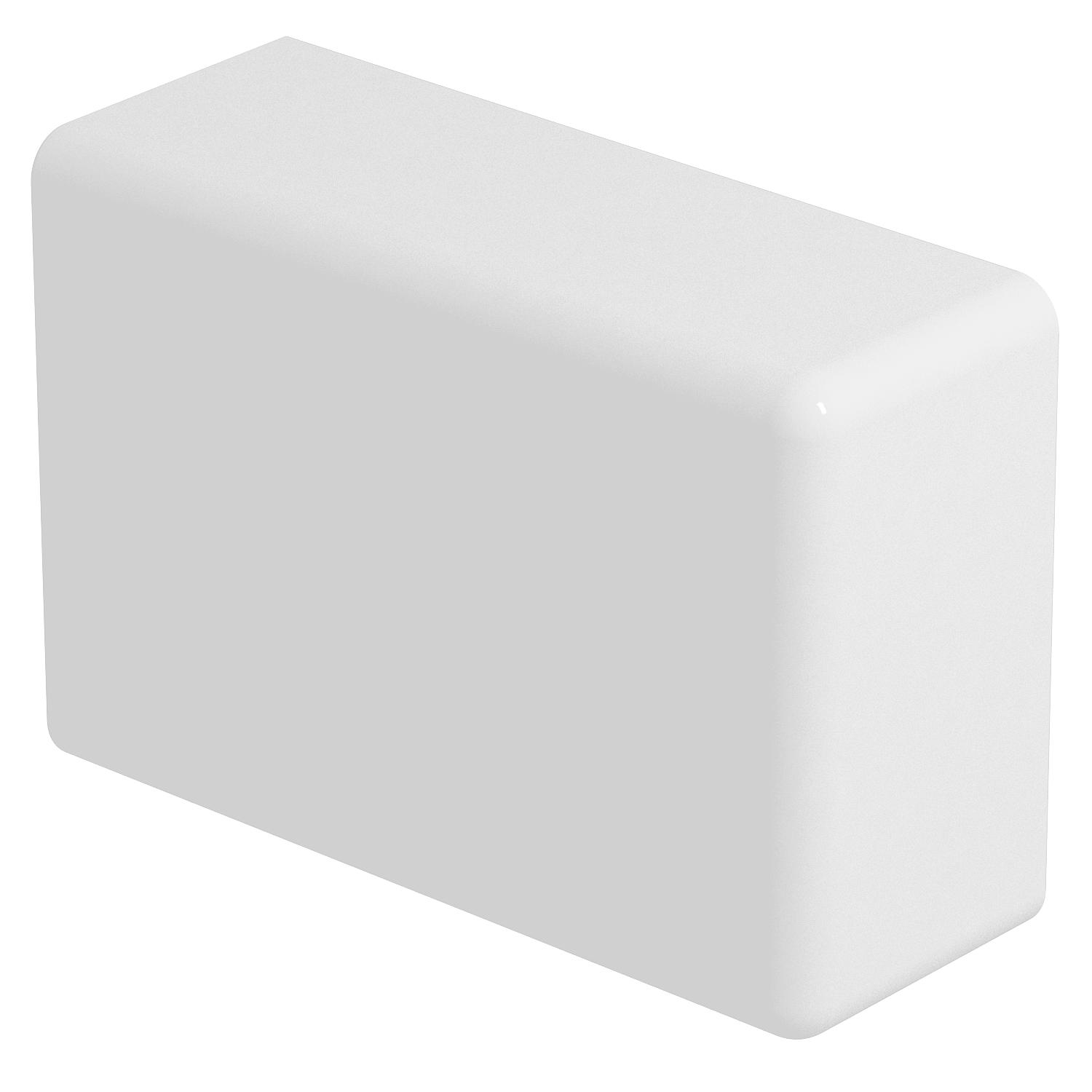

Product descriptionEnd piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data

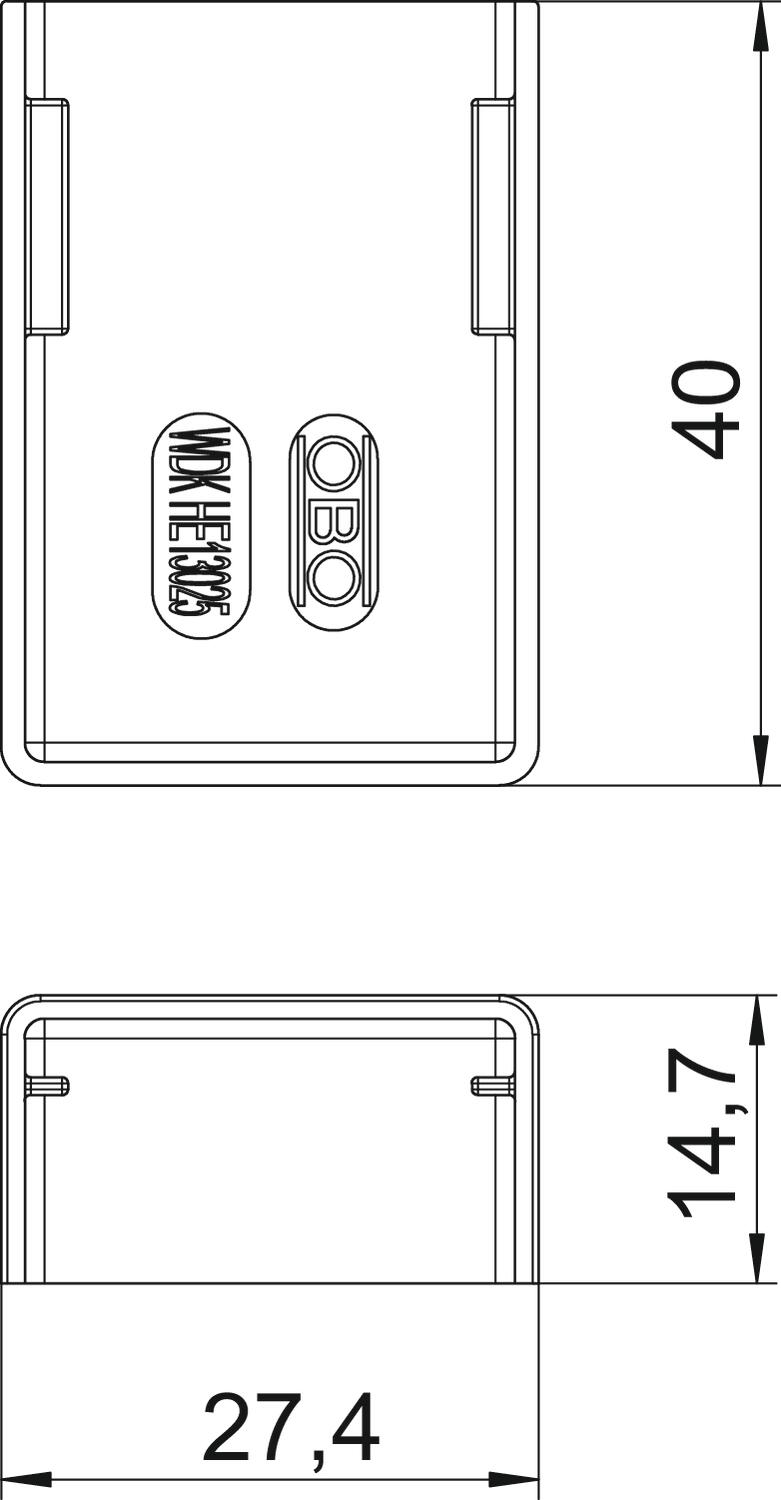

Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 13x25x40 Fastening type Lockable Halogen-free no Height 13,5 mm Length 40 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Width 25 mm - All types
- Downloads
-
Safety data sheet WDK HE13025RW / 6193093 , 0.02MB , pdfData sheet WDK HE13025RW / 6193093 , 0.20MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HE13025RW / 6193093 , 0.10MB , pdfUK Declaration of Conformity WDK HE13025RW / 6193093 , 0.09MB , pdfREACH Declaration of conformity WDK HE13025RW / 6193093 , 0.12MB , pdfRoHS Declaration of conformity WDK HE13025RW / 6193093 , 0.12MB , pdfLabel approval VDE symbol approval, WDK , 0.64MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
