End piece Signa Base ES 70170
Item no. 6132780 | EAN 4012196721887
- Product description
-
Product description

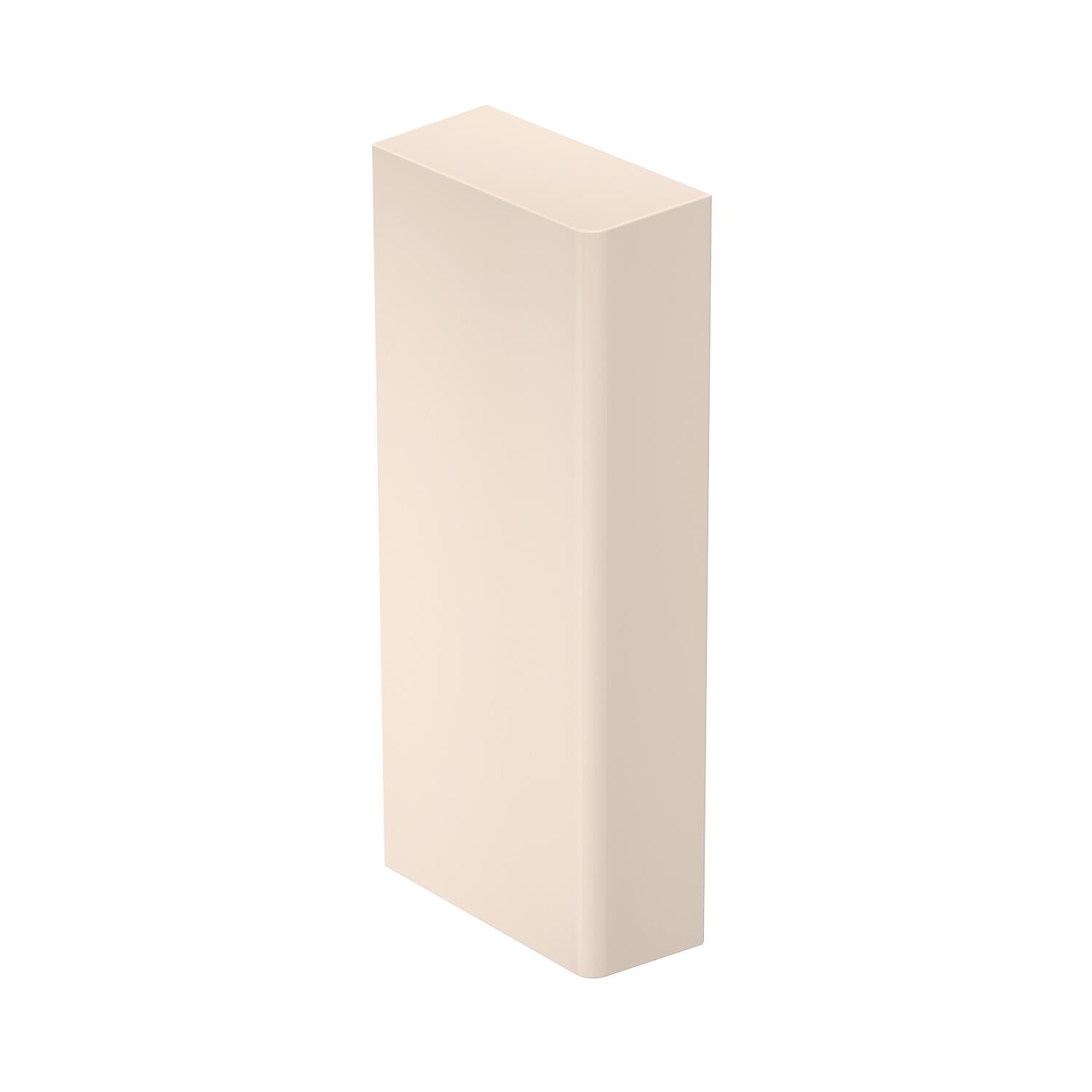

End piece as a fitting for the Signa Base device installation trunking.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Cut lamination yes Fastening type Lockable for duct width 170 mm for trunking height 70 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Protective film no Suitable for Left/right Version for Symmetrical Dimensions

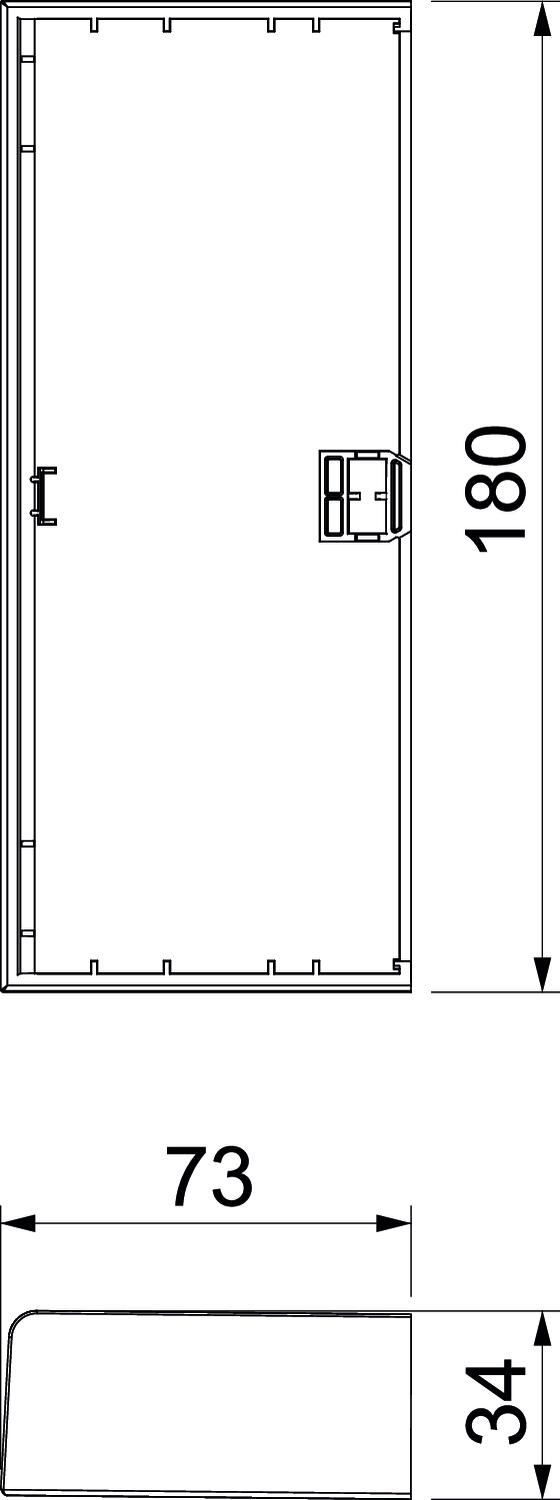

Height 73 mm Length 34 mm Width 180 mm - All types
- Downloads
-
Data sheet BRK ES70170 cws / 6132780 , 0.25MB , pdfDeclaration of conformity BRK ES70170 cws / 6132780 , 0.17MB , pdfREACH Declaration of conformity BRK ES70170 cws / 6132780 , 0.12MB , pdfRoHS Declaration of conformity BRK ES70170 cws / 6132780 , 0.12MB , pdfMounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdfNo invitation to tender text is available for this product.
