End piece Signa Base ES 70170 | | | | Pure white; RAL 9010
morepic-1 morepic-2

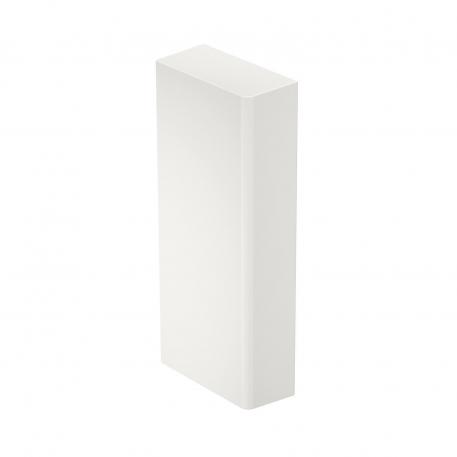

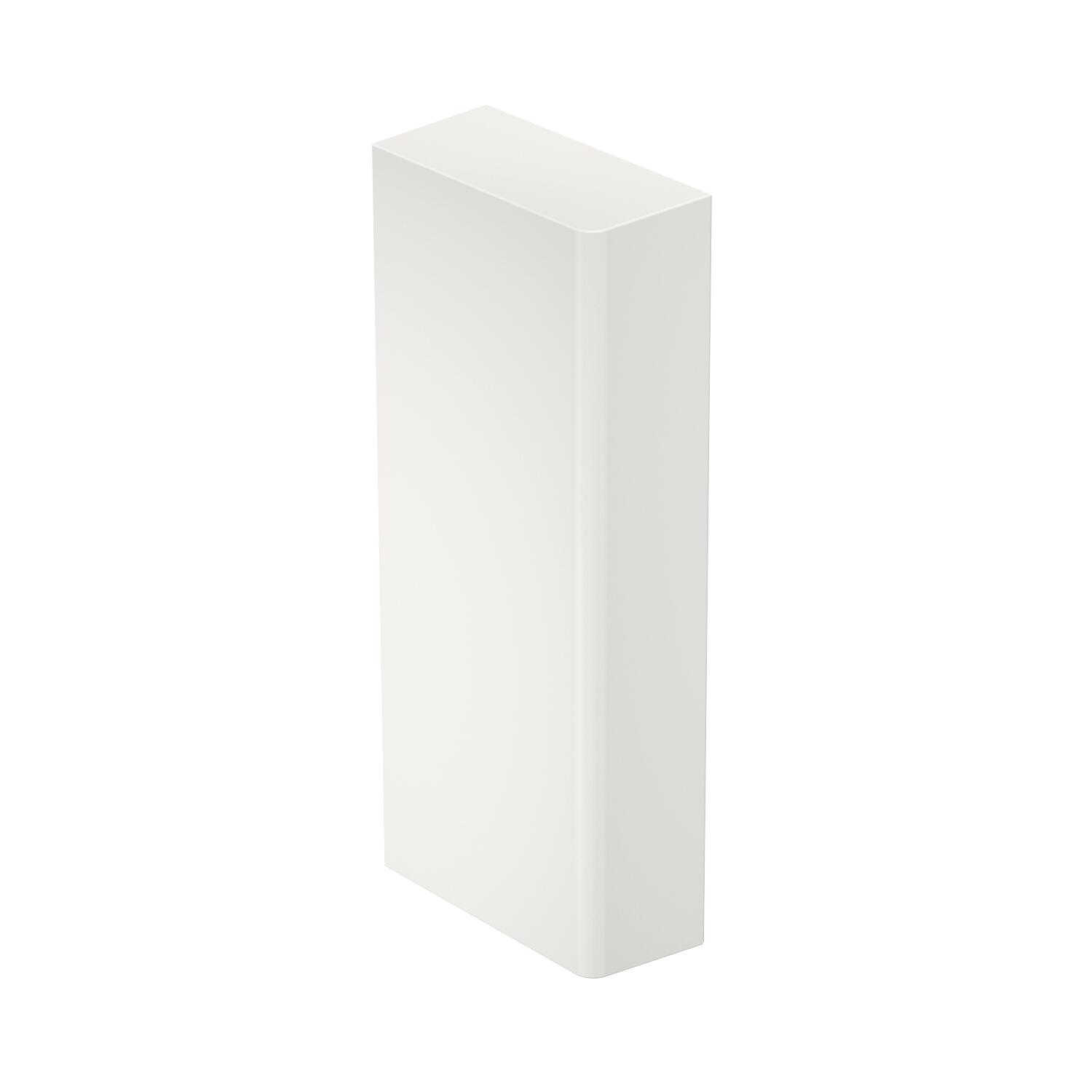

End piece Signa Base ES 70170

Item no. 6132781 | EAN 4012196721894

Product description
Product description
End piece as a fitting for the Signa Base device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Cut lamination yes

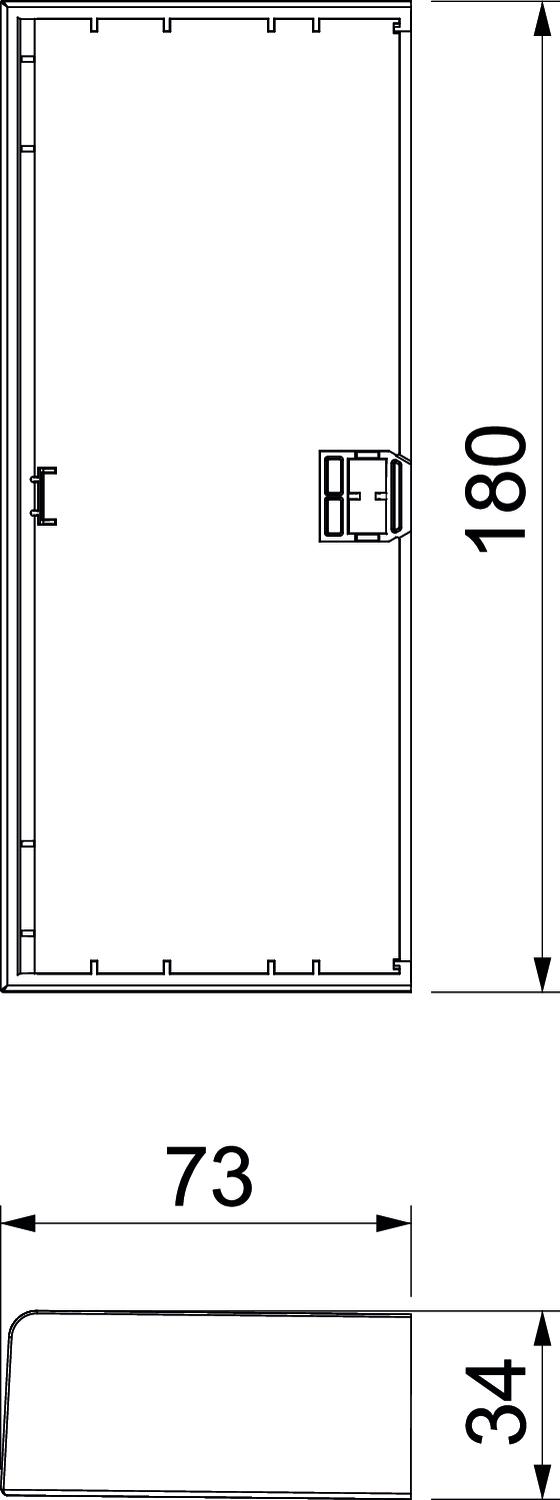

Dimension 34x180x73
Fastening type Lockable
for duct width 170 mm
for trunking height 70 mm
Halogen-free yes
Height 73 mm
Length 34 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK07.
Protective film no
Suitable for Left/right
Version for Symmetrical
Width 180 mm
All types

All types

Types Colour Item no. Quantity SSU
BRK ES70170 cws Cream; RAL 9001 6132780
10 piece
BRK ES70170 rws Pure white; RAL 9010 6132781
10 piece
BRK ES70170 lgr Light grey; RAL 7035 6132782
10 piece
Downloads

Download

Download

EU declaration of conformity BRK ES70170 rws / 6132781 , 0.10MB , pdf
Download
REACH Declaration of conformity BRK ES70170 rws / 6132781 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRK ES70170 rws / 6132781 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
