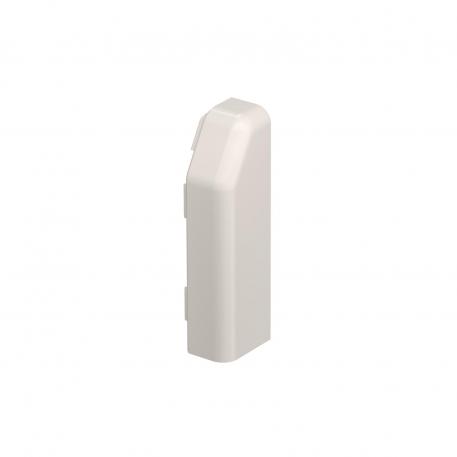

End piece SL ESre2070 Cream; RAL 9001

morepic-1

morepic-2

End piece SL ESre2070

Item no. 6132282 | EAN 4012196723454

Item no. / Types

Colour

Product description

Product description

End piece (right) as a fitting for the skirting trunking.

Technical data

Technical data

Colour	Cream; RAL 9001
Cover sealing lip	Without
Decoration	Without
Halogen-free	no
Height	72 mm
Length	22 mm
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Pre-markings	no
Protection rating	IP40
Protection rating IK code	IK06
Version for	Right
Width	18 mm
With carpet strip	no

All types

All types

Types	Colour	Item no.	Quantity	SSU
SL ESre2070 rws	Pure white; RAL 9010	6132281	piece	10 piece
SL ESre2070 cw	Cream; RAL 9001	6132282	piece	10 piece
SL ESre2070 lgr	Light grey; RAL 7035	6132283	piece	10 piece

Downloads

Data sheet SL ESre2070 cw / 6132282 , 0.27MB , pdf

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

EU declaration of conformity SL ESre2070 cw / 6132282 , 0.13MB , pdf

Label approval VDE symbol approval, SL skirting trunking , 0.27MB , pdf

Download

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

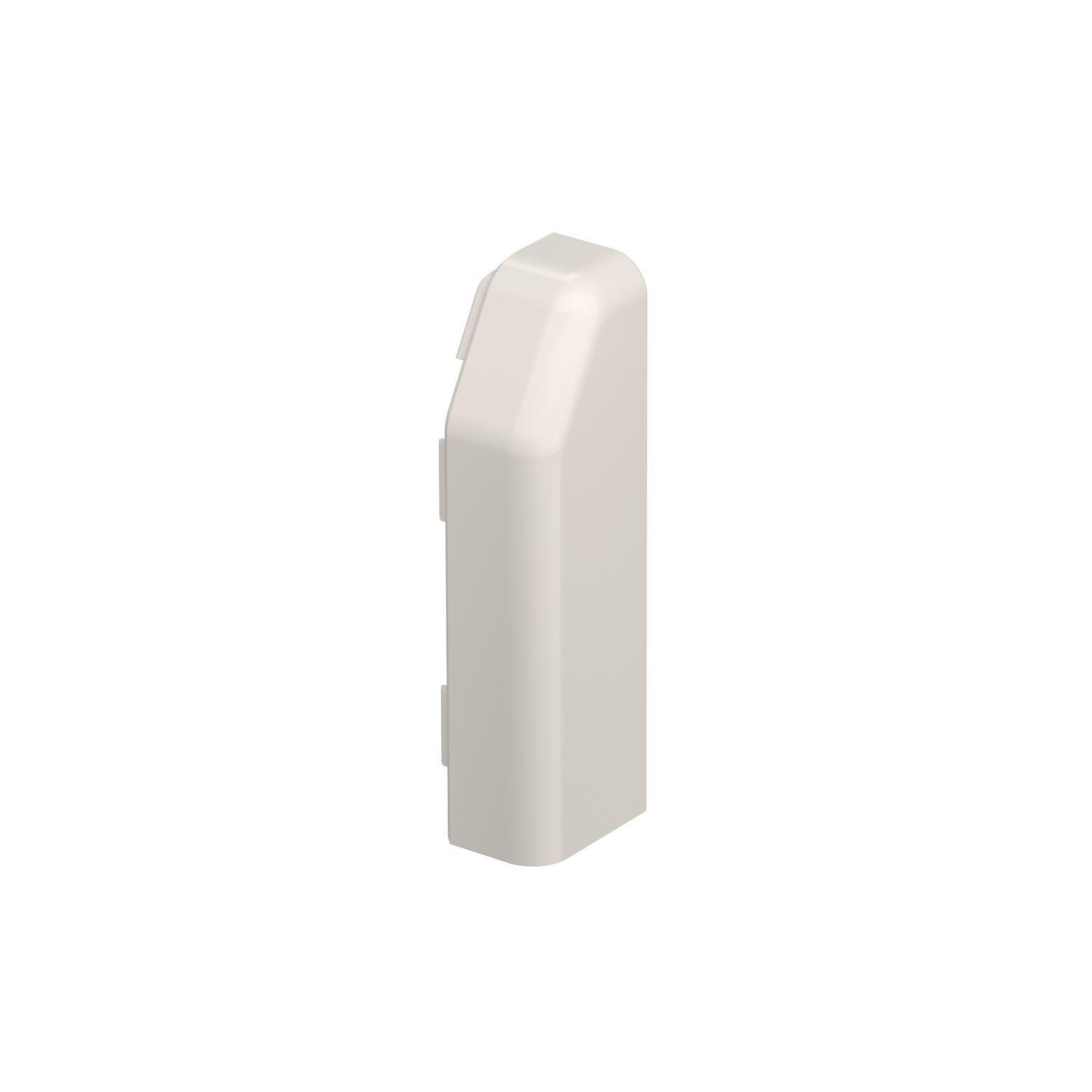

Product graphic SL ESre2070 cw / 6132282, 22.21 kB, jpg

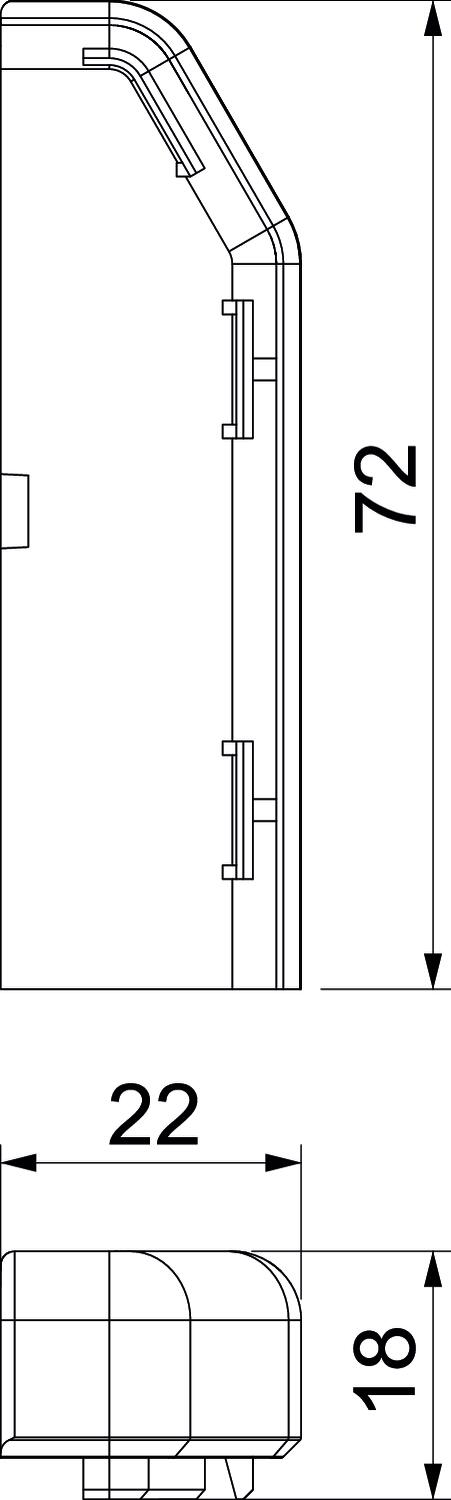

Scale drawing SL ESre2070 cw / 6132282, 42.25 kB, jpg

No invitation to tender text is available for this product.
