End piece, Style, right | | | | aluminium
morepic-1 morepic-2

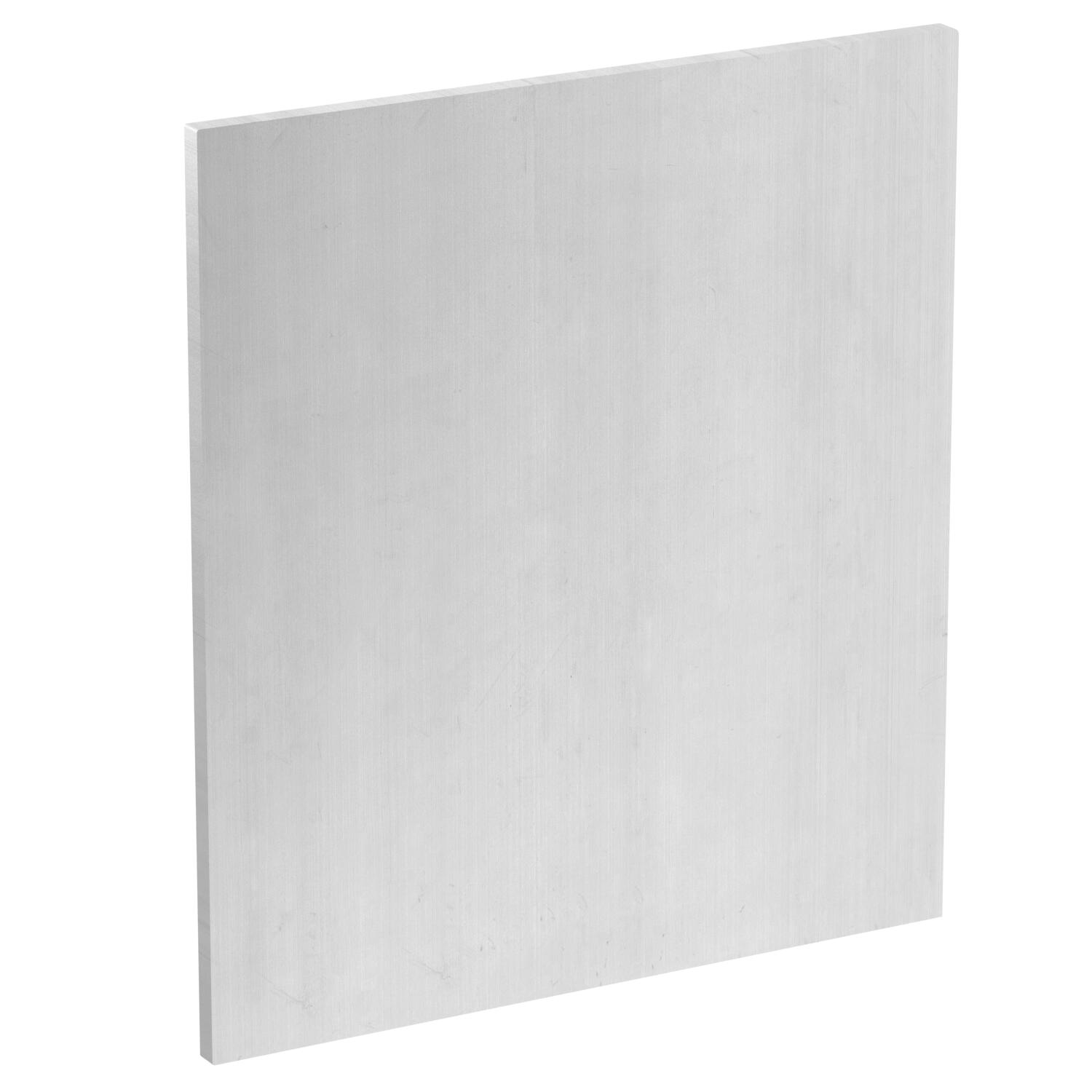

End piece, Style, right

Item no. 6115965 | EAN 4012195914471

6115965 / GAD ER Style EL
aluminium
Product description
Product description
End piece for design device installation trunking of the GAD series. "Style" design version. The end piece can only be used for closing on the right side.
Standard version in anodised aluminium, different decoration on request.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour aluminium
Cut lamination no

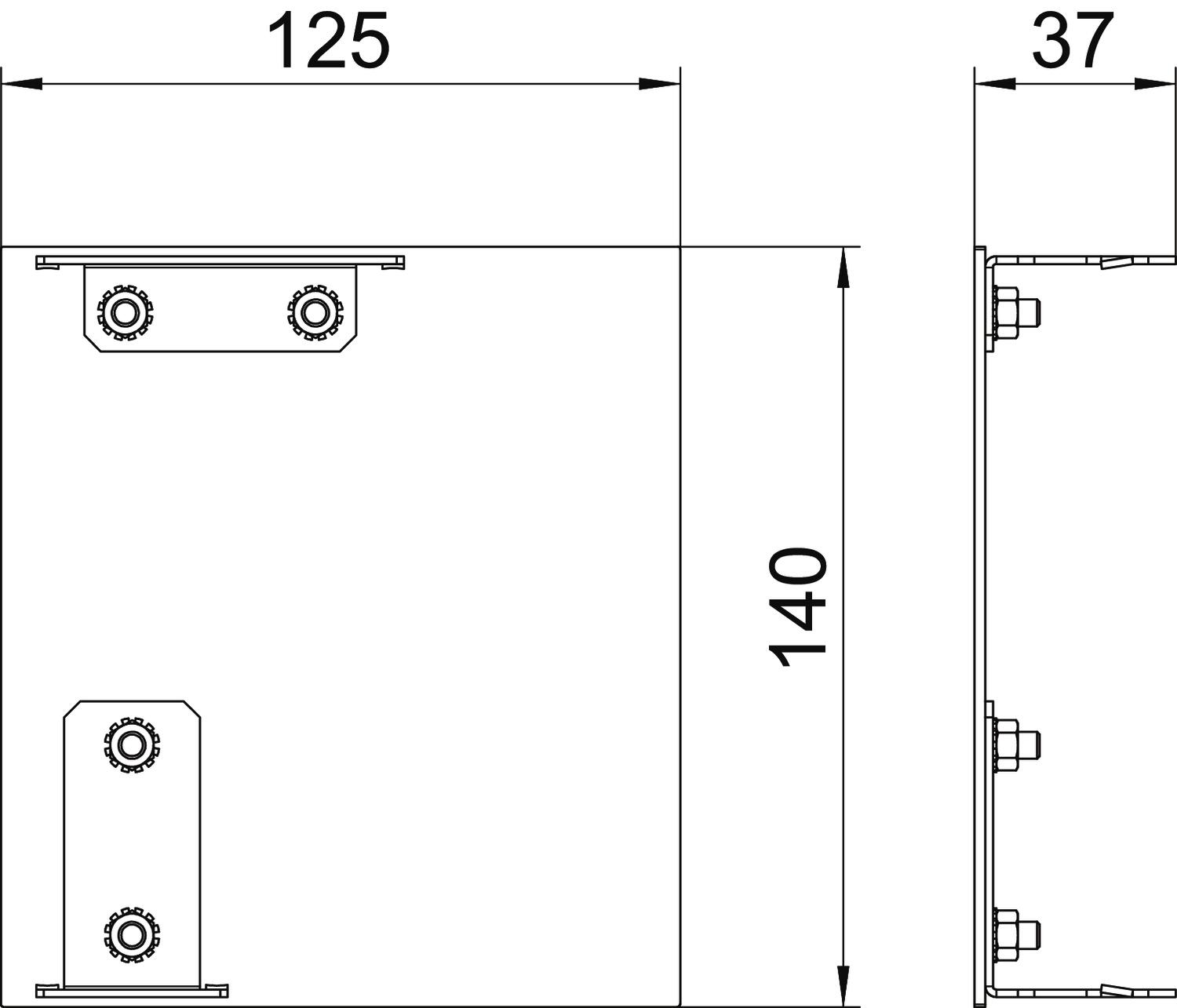

Dimension 125x140x37
Fastening type Lockable
for duct width 140 mm
for trunking height 114 mm
Halogen-free yes
Height 125 mm
Length 37 mm
Material Aluminium
Protective film yes
Suitable for Right
Surface Anodised
Version for Asymmetrical
Width 140 mm
All types

All types

Types Colour Item no. Quantity SSU
GAD ER Style EL aluminium 6115965
1 piece
Downloads

Download

Download
Download

EU declaration of conformity GAD ER Style EL / 6115965 , 0.13MB , pdf
Download
UK Declaration of Conformity GAD ER Style EL / 6115965 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
