End piece, trunking type WDK 10020 22 | 11 | 20 | Pure white; RAL 9010
morepic-1 morepic-2

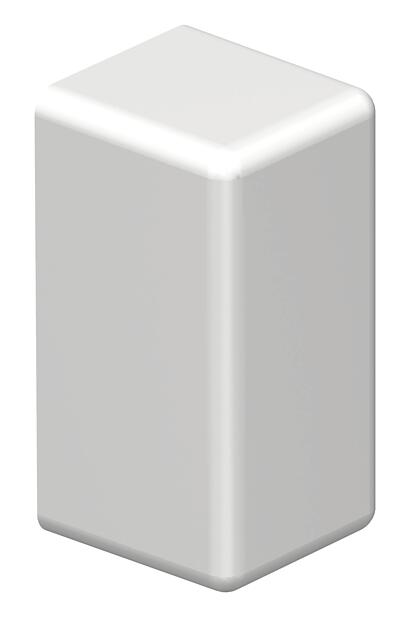

End piece, trunking type WDK 10020

Item no. 6154514 | EAN 4012196491834

22 mm
11 mm
20 mm
Product description
Product description
End piece for closing the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 10x20mm
Dimension a 22 mm
Dimension b 11 mm
Dimension H 20 mm
Fastening type Lockable
Halogen-free no
Height 10 mm
Length 11 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 22 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE10020CW 22 mm 11 mm 20 mm Cream; RAL 9001 6153593
10 piece
WDK HE10020RW 22 mm 11 mm 20 mm Pure white; RAL 9010 6154514
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE10020RW / 6154514 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE10020RW / 6154514 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE10020RW / 6154514 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE10020RW / 6154514 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
