- Product description
-
Product description

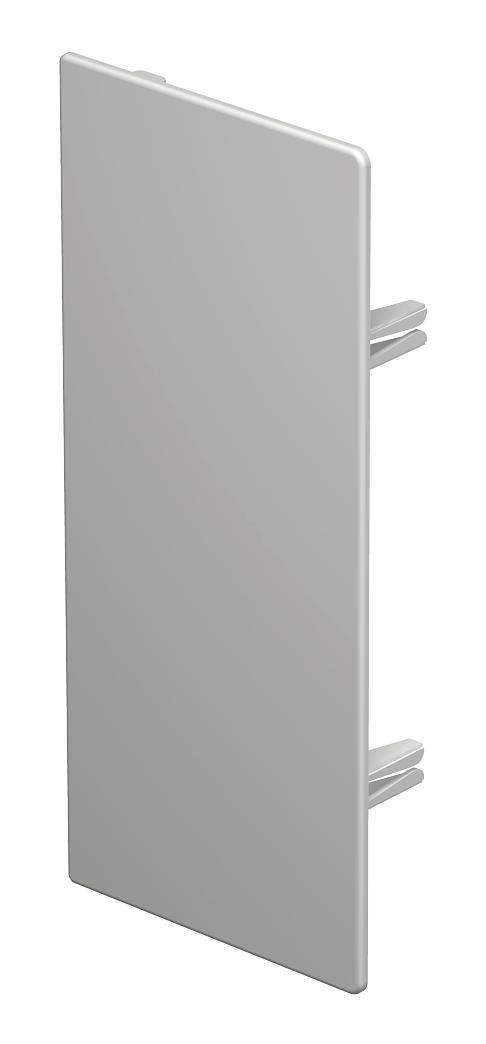

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 100x230mm Fastening type Lockable Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Dimensions
Dimension a 230 mm Dimension b 100 mm Dimension H 230 mm Height 100 mm Length 25 mm Width 230 mm - All types
-
All types
