End piece, trunking type WDK 10030 32 | 11 | 30 | Pure white; RAL 9010
morepic-1 morepic-2

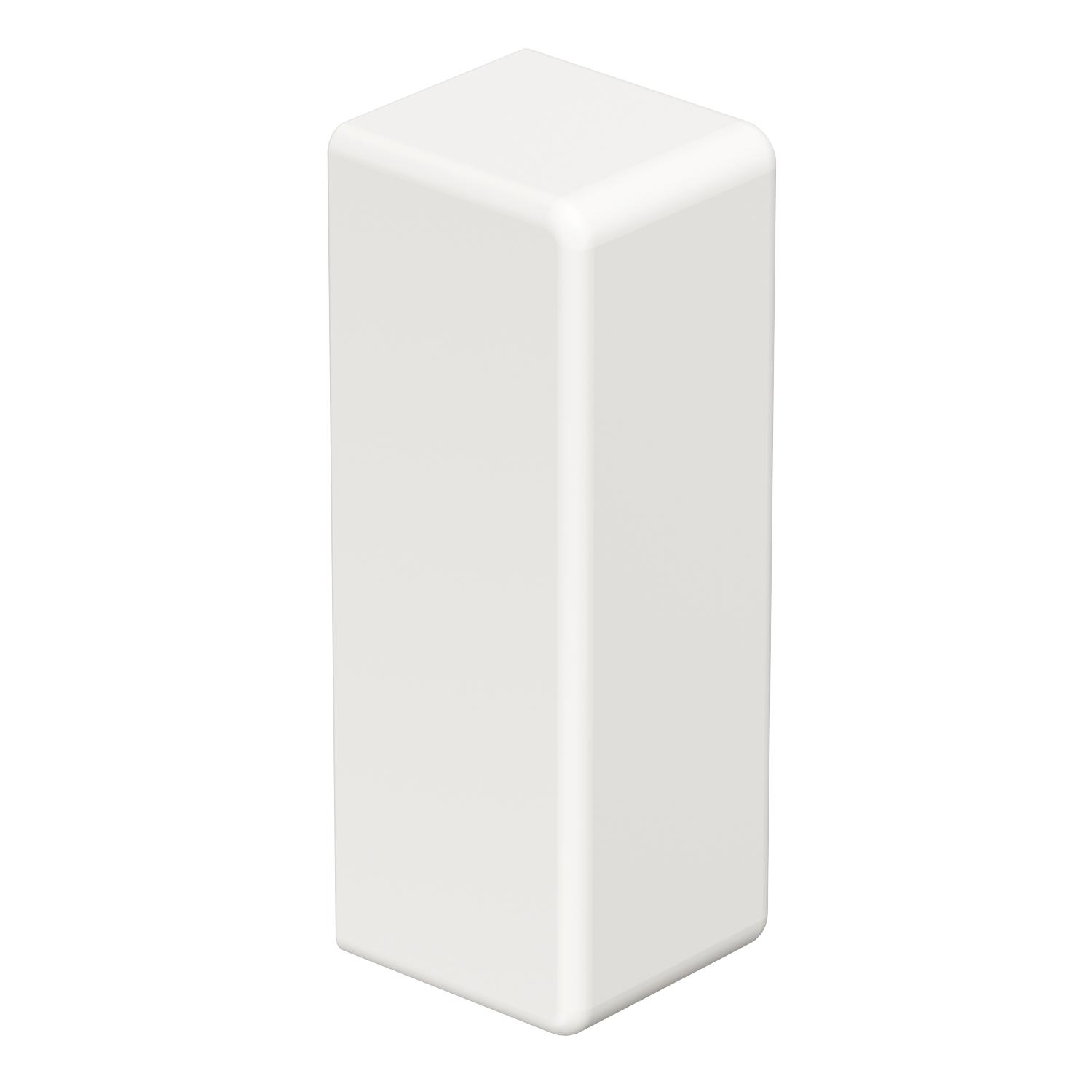

End piece, trunking type WDK 10030

Item no. 6154522 | EAN 4012196491353

32 mm
11 mm
30 mm
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 10x30mm
Dimension a 32 mm
Dimension b 11 mm
Dimension H 30 mm
Fastening type Lockable
Halogen-free no
Height 10 mm
Length 11 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 32 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE10030CW 32 mm 11 mm 30 mm Cream; RAL 9001 6153607
10 piece
WDK HE10030RW 32 mm 11 mm 30 mm Pure white; RAL 9010 6154522
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HE10030RW / 6154522 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE10030RW / 6154522 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE10030RW / 6154522 , 0.12MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
