End piece, trunking type WDK 30030 30 | 30 | 30 | Cream; RAL 9001
morepic-1 morepic-2

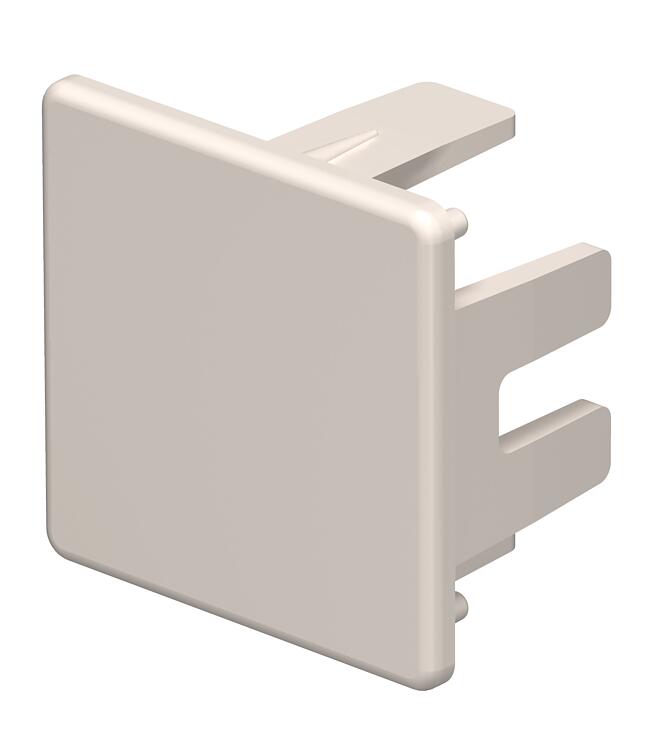

End piece, trunking type WDK 30030

Item no. 6162576 | EAN 4012196584239

30 mm
30 mm
30 mm
Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 30x30mm
Dimension a 30 mm
Dimension b 30 mm
Dimension H 30 mm
Fastening type Lockable
Halogen-free no
Height 30 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 30 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE30030GR 30 mm 30 mm 30 mm Stone grey; RAL 7030 6158765
10 piece
WDK HE30030CW 30 mm 30 mm 30 mm Cream; RAL 9001 6162576
10 piece
WDK HE30030LGR 30 mm 30 mm 30 mm Light grey; RAL 7035 6183697
10 piece
WDK HE30030RW 30 mm 30 mm 30 mm Pure white; RAL 9010 6193188
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HE30030CW / 6162576 , 0.14MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
