End piece, trunking type WDK 40040 40 | 40 | 40 | Light grey; RAL 7035
morepic-1 morepic-2

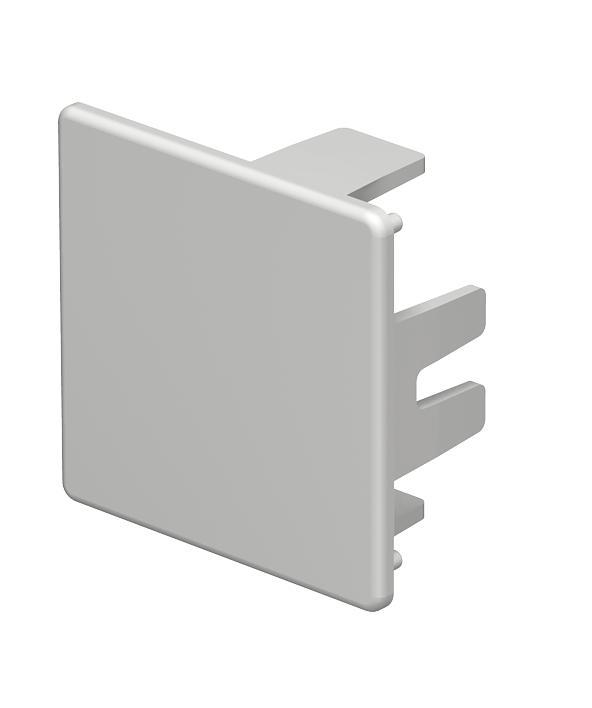

End piece, trunking type WDK 40040

Item no. 6183727 | EAN 4012196674299

40 mm
40 mm
40 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 40x40mm
Dimension a 40 mm
Dimension b 40 mm
Dimension H 40 mm
Fastening type Lockable
Halogen-free no
Height 40 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 40 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE40040GR 40 mm 40 mm 40 mm Stone grey; RAL 7030 6158773
10 piece
WDK HE40040CW 40 mm 40 mm 40 mm Cream; RAL 9001 6162592
10 piece
WDK HE40040LGR 40 mm 40 mm 40 mm Light grey; RAL 7035 6183727
10 piece
WDK HE40040RW 40 mm 40 mm 40 mm Pure white; RAL 9010 6193218
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE40040LGR / 6183727 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE40040LGR / 6183727 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE40040LGR / 6183727 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE40040LGR / 6183727 , 0.28MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
