End piece, trunking type WDK 40090 90 | 40 | 90 | Light grey; RAL 7035
morepic-1 morepic-2

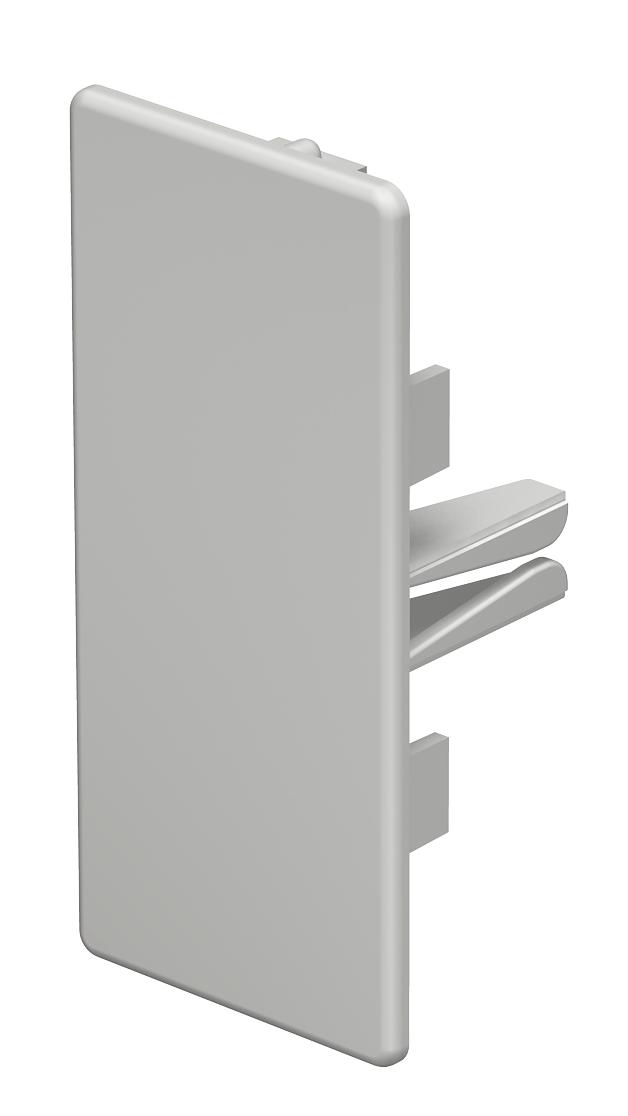

End piece, trunking type WDK 40090

Item no. 6183743 | EAN 4012196674411

90 mm
40 mm
90 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 40x90mm
Dimension a 90 mm
Dimension b 40 mm
Dimension H 90 mm
Fastening type Lockable
Halogen-free no
Height 40 mm
Length 27,5 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 90 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE40090GR 90 mm 40 mm 90 mm Stone grey; RAL 7030 6021506
10 piece
WDK HE40090CW 90 mm 40 mm 90 mm Cream; RAL 9001 6162614
10 piece
WDK HE40090LGR 90 mm 40 mm 90 mm Light grey; RAL 7035 6183743
10 piece
WDK HE40090RW 90 mm 40 mm 90 mm Pure white; RAL 9010 6193234
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE40090LGR / 6183743 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE40090LGR / 6183743 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE40090LGR / 6183743 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE40090LGR / 6183743 , 0.28MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
