- Product description
-
Product description

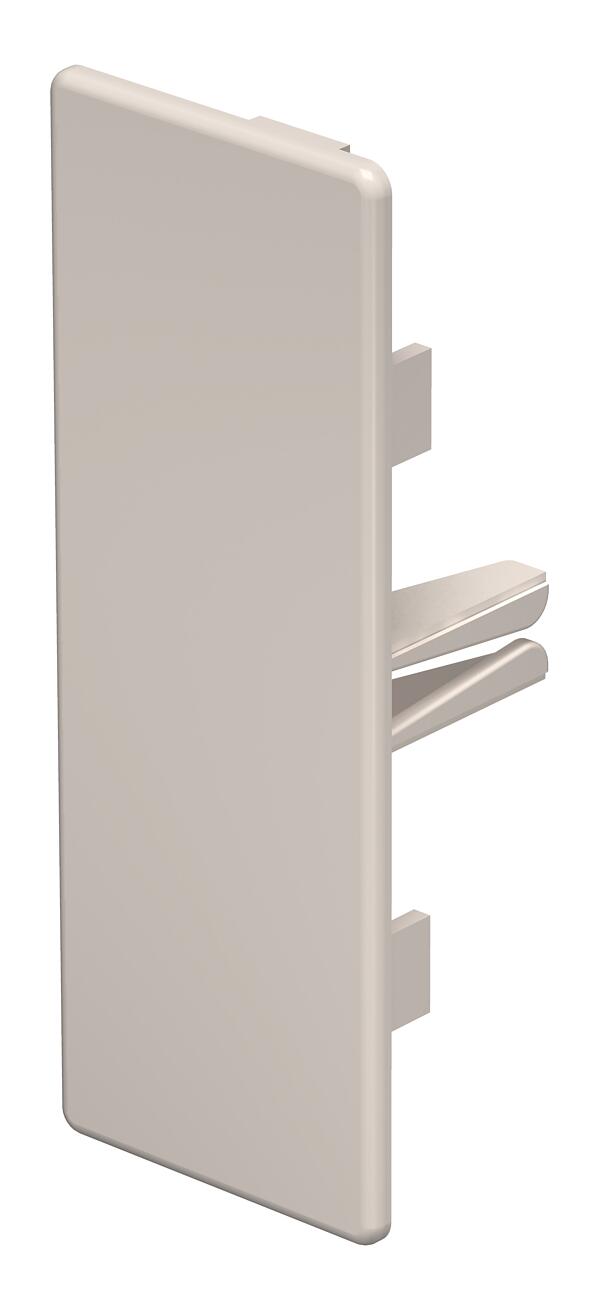

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Dimension 40x110mm Fastening type Lockable Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Dimensions
Dimension a 110 mm Dimension b 40 mm Dimension H 110 mm Height 40 mm Length 27,5 mm Width 110 mm - All types
-
All types
- Downloads
-
Data sheet WDK HE40110CW / 6162622 , 0.22MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HE40110CW / 6162622 , 0.13MB , pdfUK Declaration of Conformity WDK HE40110CW / 6162622 , 0.14MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
