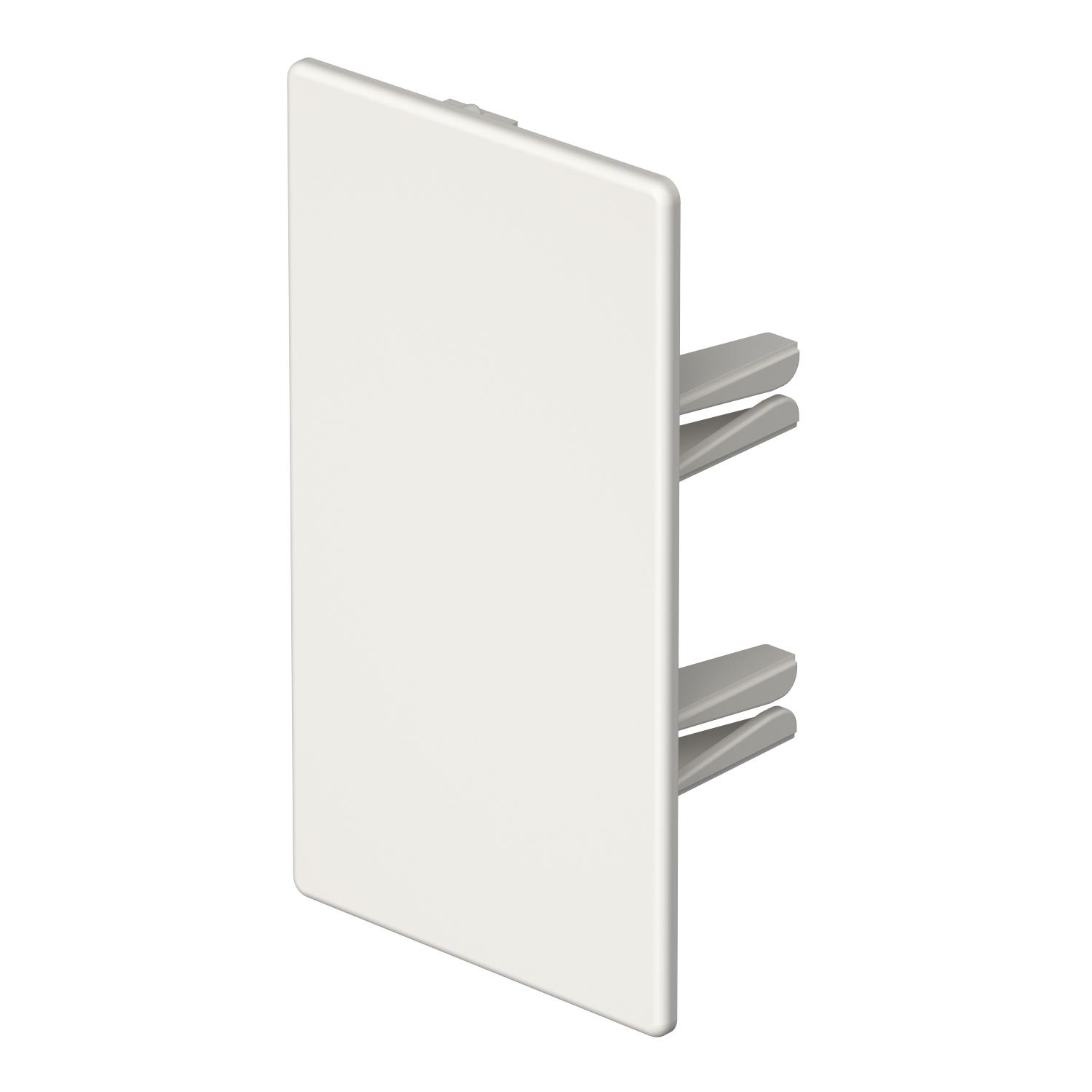

End piece, trunking type WDK 60110
Item no. 6193307 | EAN 4012196713059
- Product description
-
Product descriptionEnd piece for closing the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,1053 kg CO₂e / 1 Piece Dimension 60x110mm Dimension a 110 mm Dimension b 60 mm Dimension H 110 mm Fastening type Lockable Halogen-free no Height 60 mm Length 27,5 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Width 110 mm - All types
-
All types
- Downloads
-
Data sheet WDK HE60110RW / 6193307 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HE60110RW / 6193307 , 0.13MB , pdfUK Declaration of Conformity WDK HE60110RW / 6193307 , 0.14MB , pdfREACH Declaration of conformity WDK HE60110RW / 6193307 , 0.12MB , pdfRoHS Declaration of conformity WDK HE60110RW / 6193307 , 0.28MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
