End piece, trunking type WDKH 10020 22 | 11 | | Pure white; RAL 9010
morepic-1 morepic-2

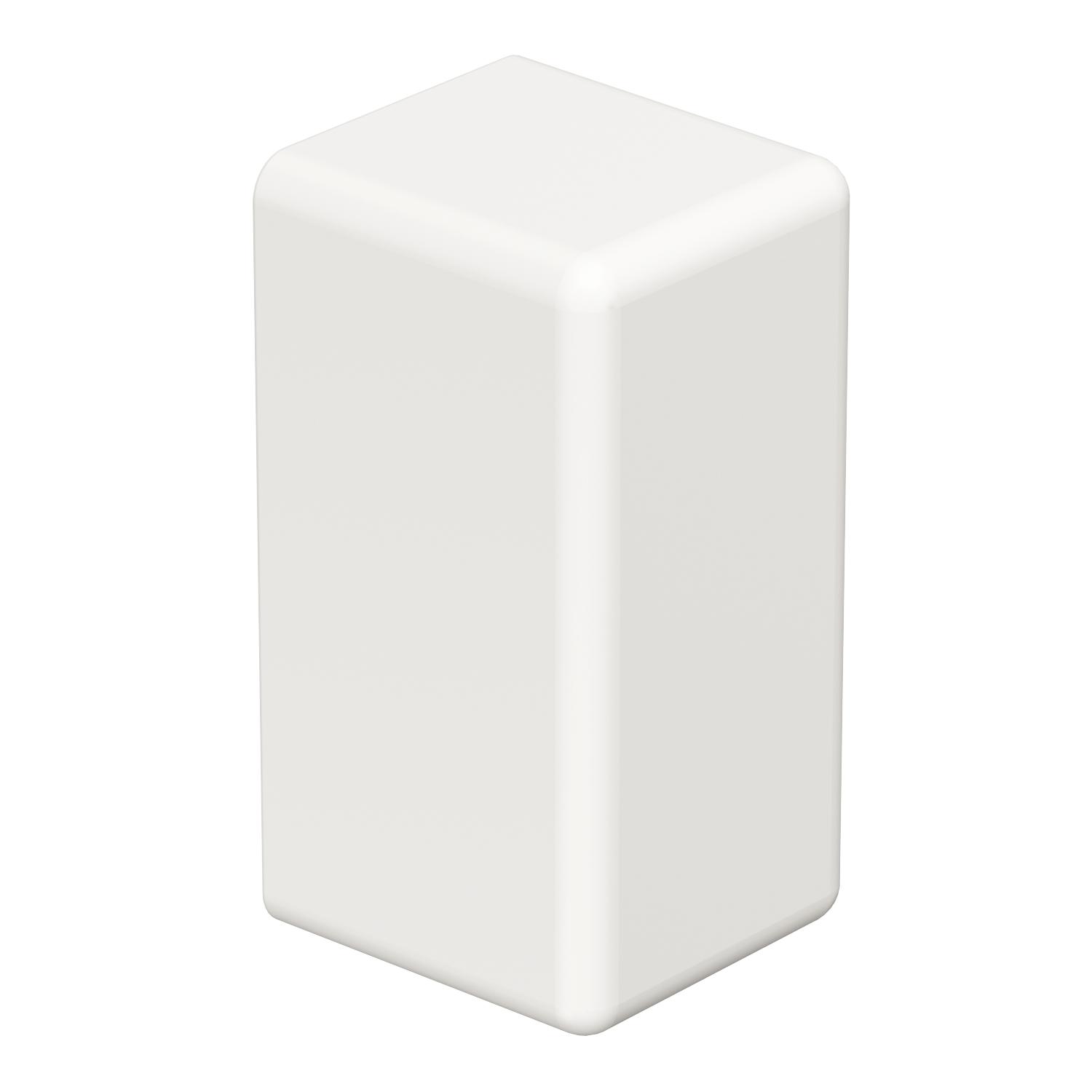

End piece, trunking type WDKH 10020

Item no. 6175540 | EAN 4012195933946

6175540 / WDKH-E10020RW
22 mm
11 mm
Pure white; RAL 9010
Product description

Product description

End piece for closing the WDKH trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010

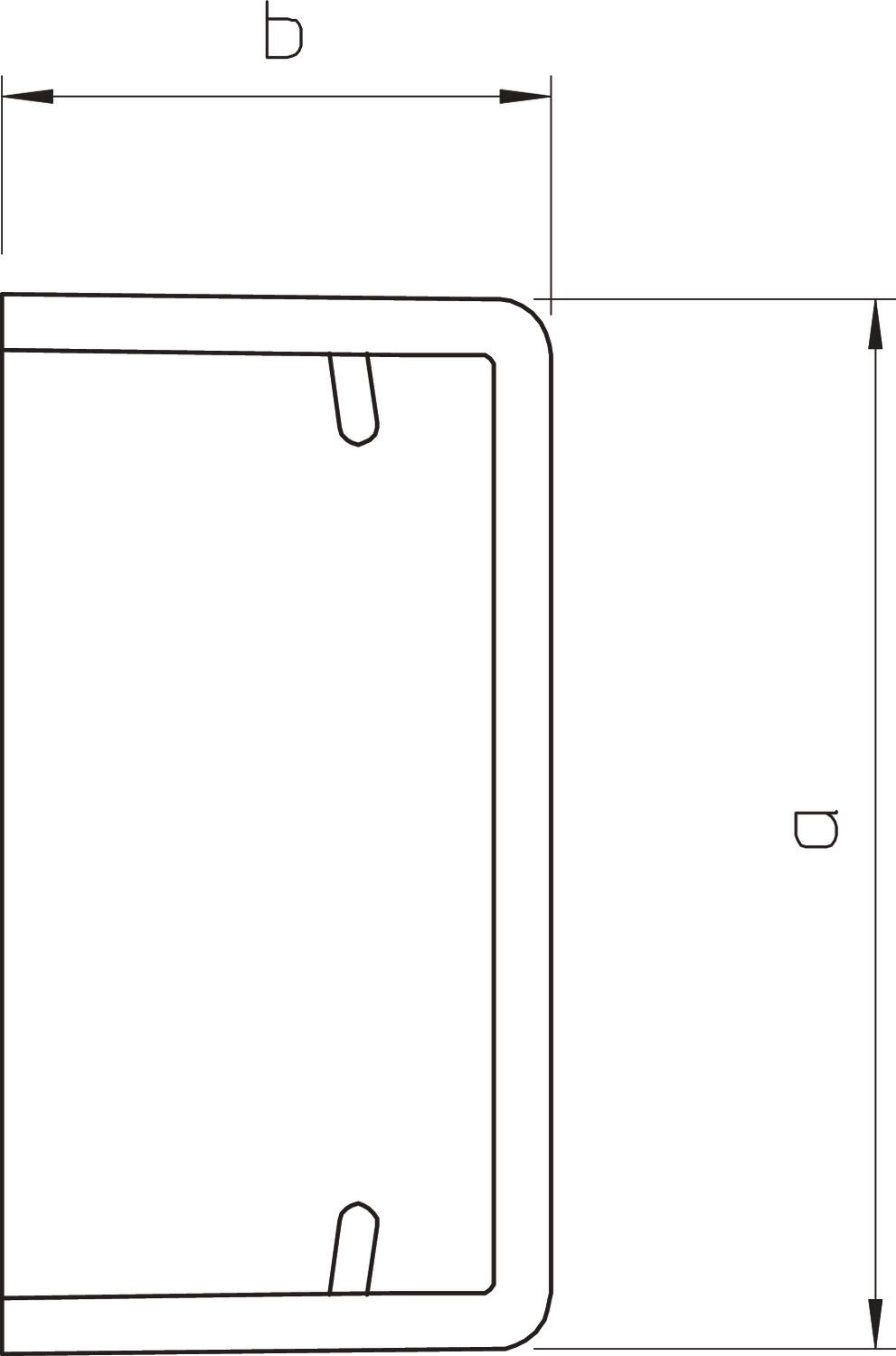

Dimension 10x20mm
Dimension a 22 mm
Dimension b 11 mm
Fastening type Lockable
Halogen-free yes
Height 10 mm
Length 11 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right
Width 22 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E10020RW 22 mm 11 mm Pure white; RAL 9010 6175540
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDKH-E10020RW / 6175540 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-E10020RW / 6175540 , 0.20MB , pdf
Download
RoHS Declaration of conformity WDKH-E10020RW / 6175540 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
