End piece, trunking type WDKH 15030 30 | 17 | | Pure white; RAL 9010
morepic-1 morepic-2

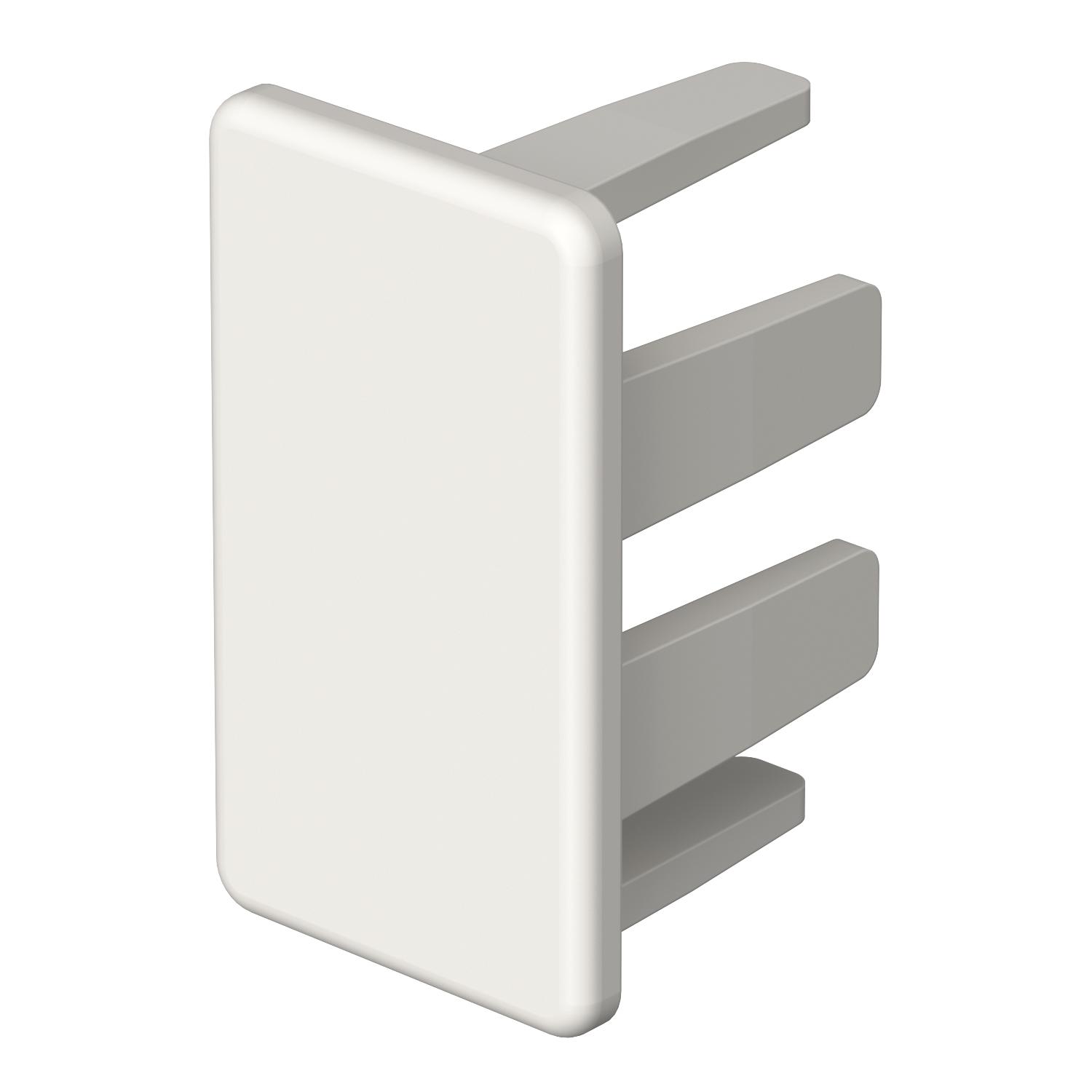

End piece, trunking type WDKH 15030

Item no. 6175546 | EAN 4012195934233

6175546 / WDKH-E15030RW
30 mm
17 mm
Pure white; RAL 9010
Product description
Product description
End piece for closing the WDK-H trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 15x30mm
Dimension a 30 mm
Dimension b 17 mm
Fastening type Lockable
Halogen-free yes
Height 17 mm
Length 17 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right
Width 30 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E15030RW 30 mm 17 mm Pure white; RAL 9010 6175546
10 piece
Downloads

Download

Download

EU declaration of conformity WDKH-E15030RW / 6175546 , 0.13MB , pdf
Download
UK Declaration of Conformity WDKH-E15030RW / 6175546 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-E15030RW / 6175546 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-E15030RW / 6175546 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
