End piece, trunking type WDKH 20020 19 | 18 | | Pure white; RAL 9010
morepic-1 morepic-2

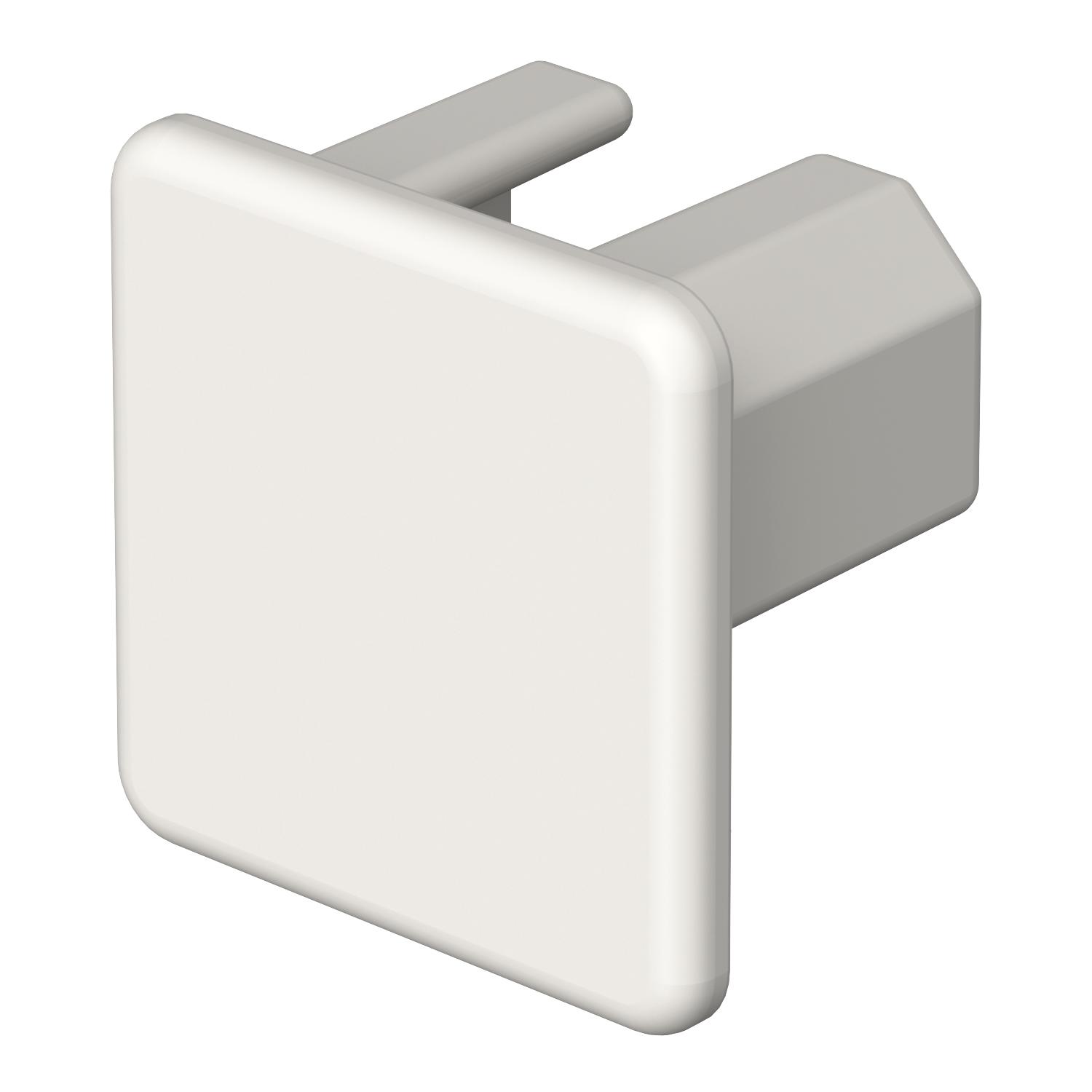

End piece, trunking type WDKH 20020

Item no. 6175550 | EAN 4012195813910

19 mm
18 mm
Product description

Product description

End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 20x20mm
Fastening type Lockable
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right

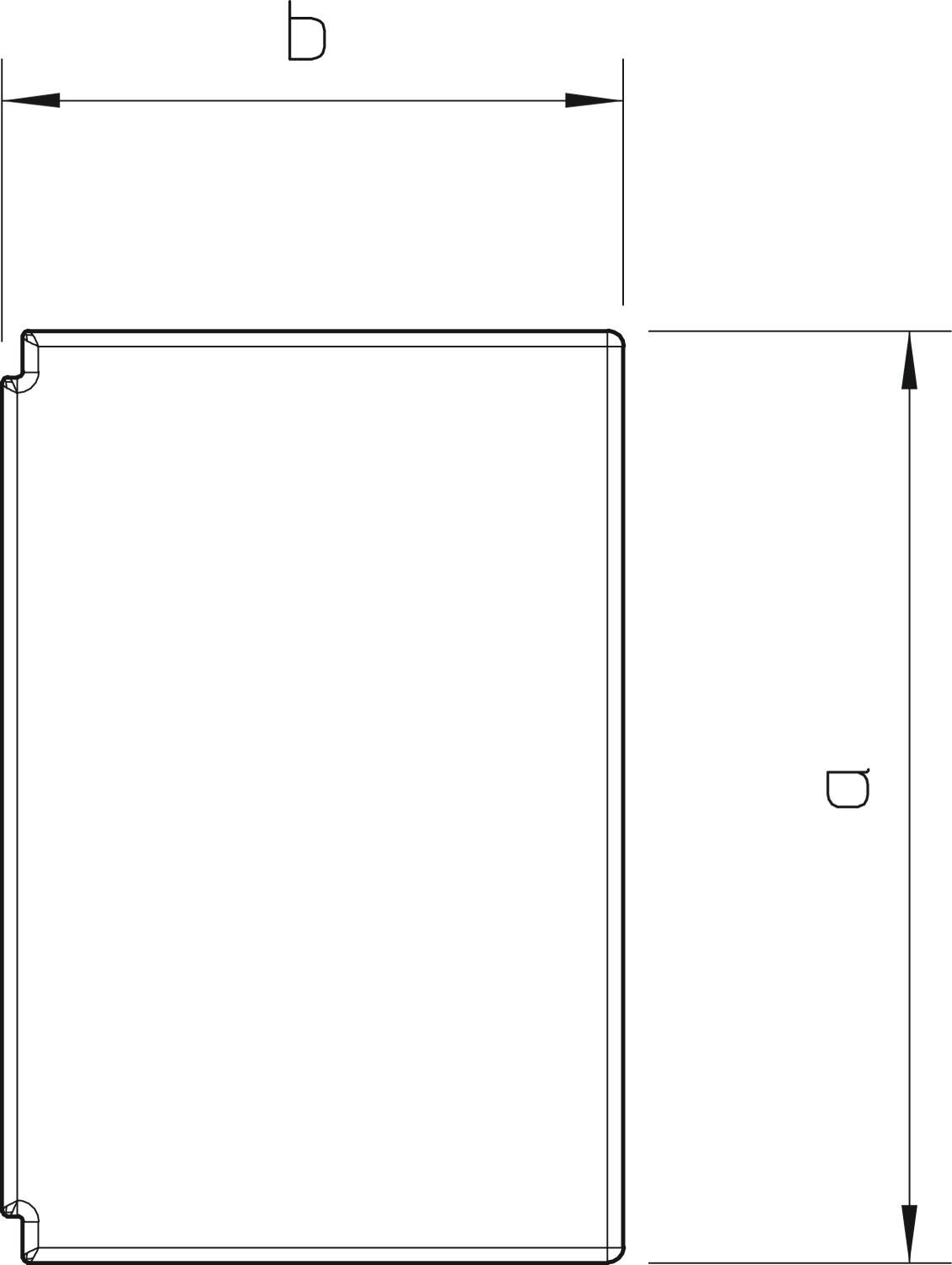

Dimensions

Dimension a 19 mm
Dimension b 18 mm
Height 17 mm
Length 11,5 mm
Width 17 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E20020RW 19 mm 18 mm Pure white; RAL 9010 6175550
10 piece
WDKH-E20020LGR 19 mm 18 mm Light grey; RAL 7035 6175928
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDKH-E20020RW / 6175550 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-E20020RW / 6175550 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-E20020RW / 6175550 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
