End piece, trunking type WDKH 40060 40 | 60 | | Light grey; RAL 7035
morepic-1 morepic-2

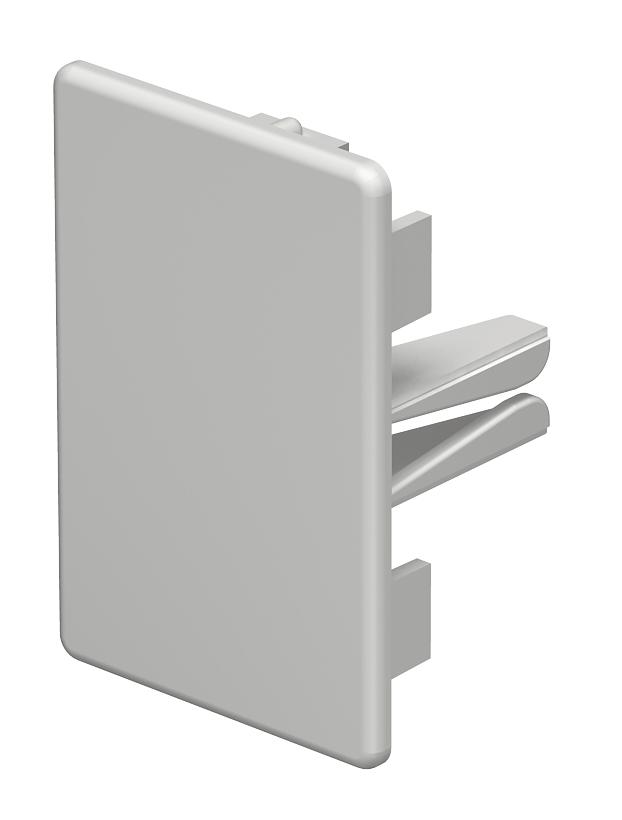

End piece, trunking type WDKH 40060

Item no. 6175936 | EAN 4012195814610

40 mm
60 mm
Product description

Product description

End piece for closing the WDK-H trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 40x60mm
Dimension a 40 mm
Dimension b 60 mm
Fastening type Lockable
Halogen-free yes
Height 40 mm
Length 27,5 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right
Width 60 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E40060RW 40 mm 60 mm Pure white; RAL 9010 6175558
10 piece
WDKH-E40060LGR 40 mm 60 mm Light grey; RAL 7035 6175936
10 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDKH-E40060LGR / 6175936 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-E40060LGR / 6175936 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDKH-E40060LGR / 6175936 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
