End piece, trunking type WDKH 60110 110 | 60 | | Pure white; RAL 9010
morepic-1 morepic-2

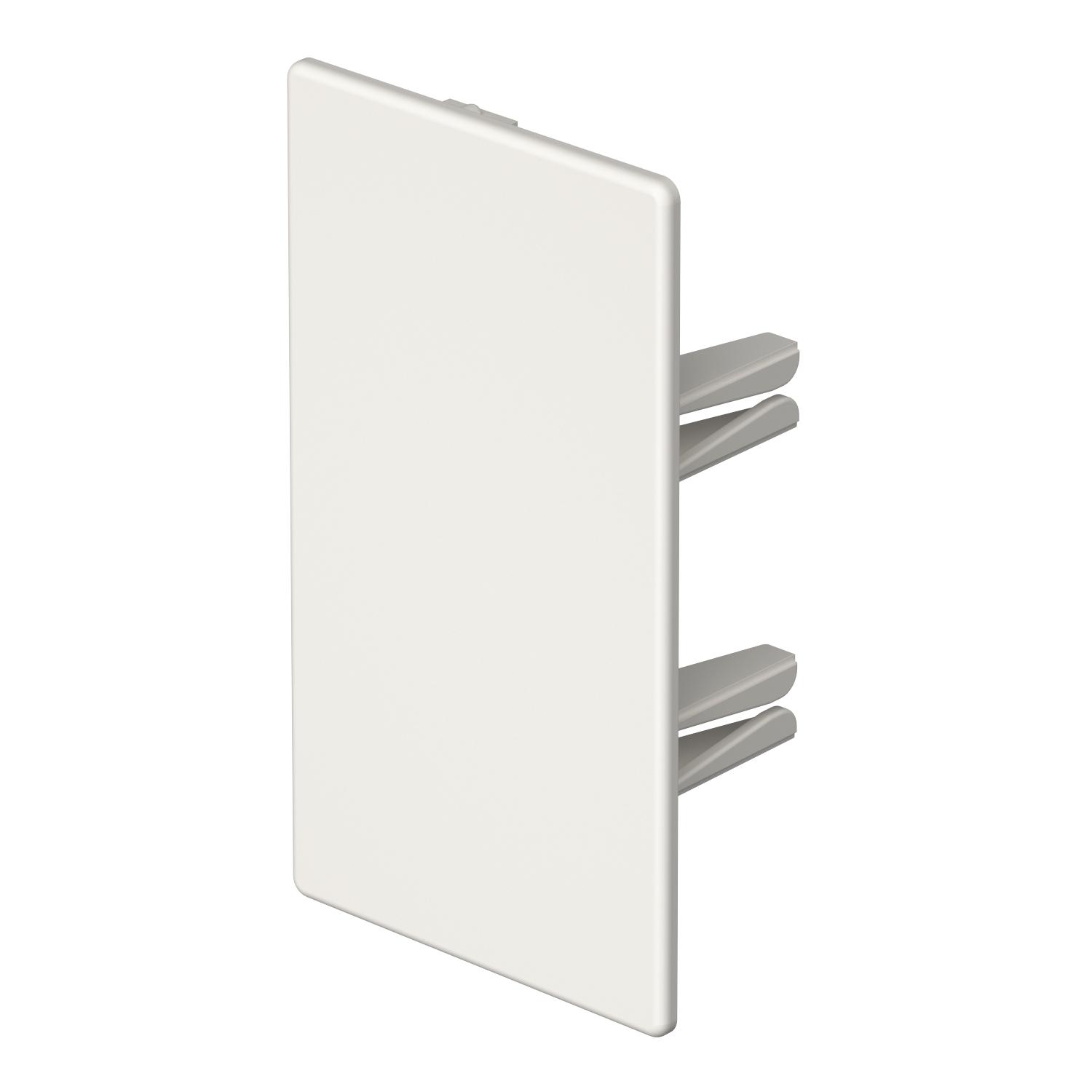

End piece, trunking type WDKH 60110

Item no. 6175566 | EAN 4012195813958

110 mm
60 mm
Product description
Product description
End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 60x110mm
Dimension a 110 mm
Dimension b 60 mm
Fastening type Lockable
Halogen-free yes
Height 60 mm
Length 27,5 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right
Width 110 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E60110RW 110 mm 60 mm Pure white; RAL 9010 6175566
10 piece
WDKH-E60110LGR 110 mm 60 mm Light grey; RAL 7035 6175944
10 piece
Downloads

Download

Download

EU declaration of conformity WDKH-E60110RW / 6175566 , 0.13MB , pdf
Download
UK Declaration of Conformity WDKH-E60110RW / 6175566 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-E60110RW / 6175566 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-E60110RW / 6175566 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
