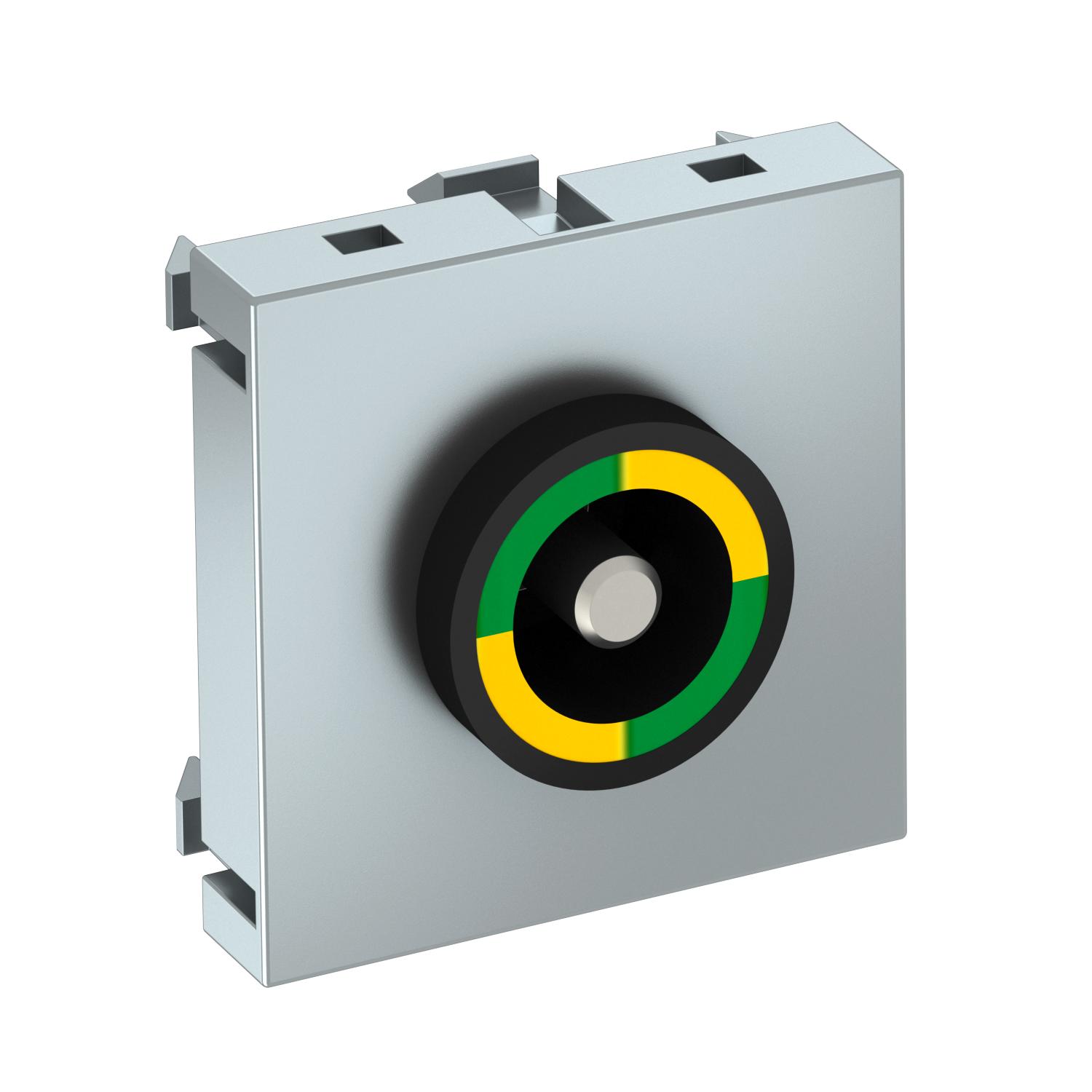

Equipotential bonding socket, 1 module, straight outlet, aluminium-painted
Item no. 6120005 | EAN 4012196049189
- Product description
-
Product descriptionEquipotential bonding socket to DIN 42801, socket in black with green-yellow colour ring, cable connection to rear with M6 screw bolt, including two nuts, washers and a serrated washer.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
-
- Technical data
-
Technical data

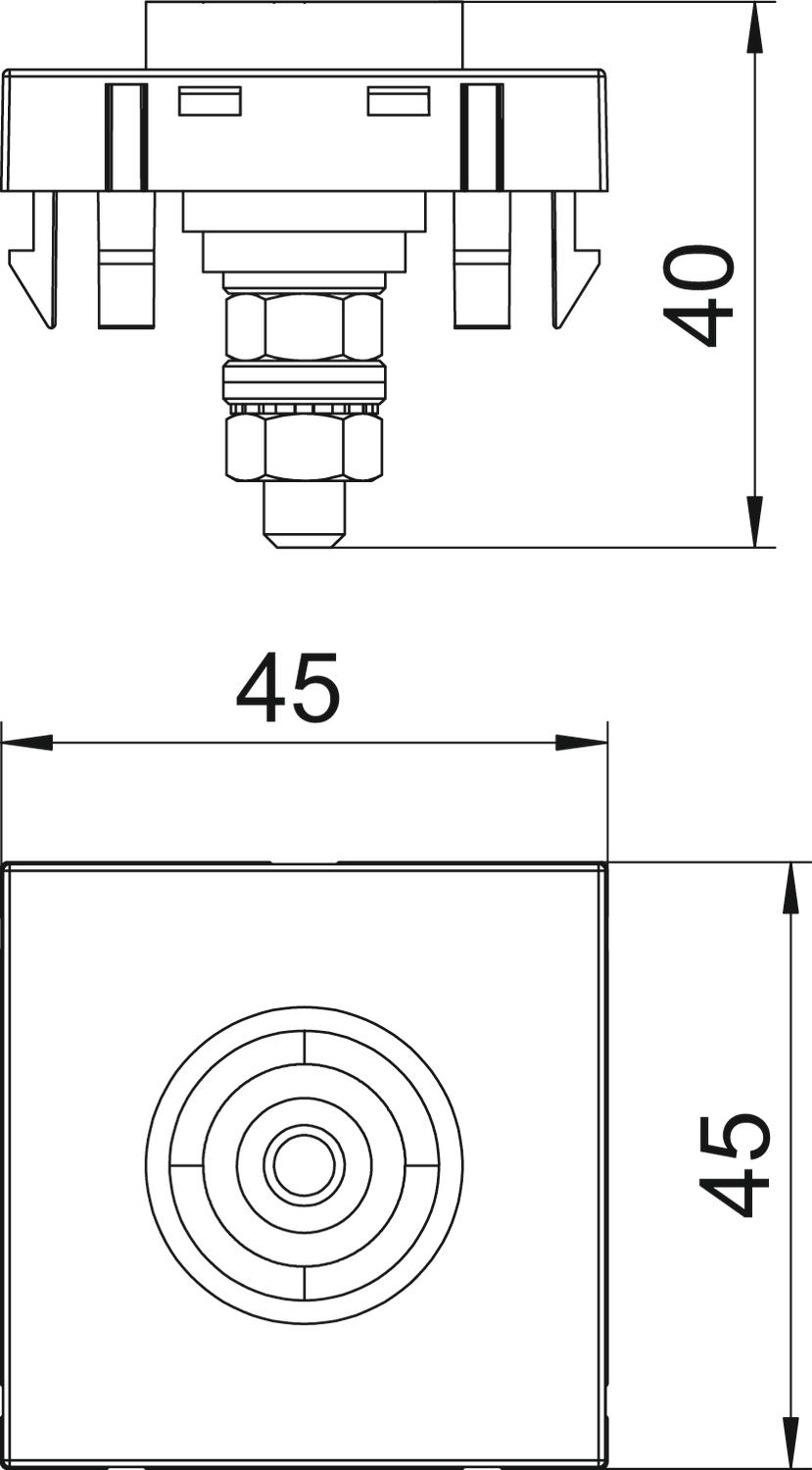

Colour Aluminium painted Combination Basic element with central cover plate CO₂ Footprint (GWP) Cradle-to-Gate 0,084 kg CO₂e / 1 Piece Dimension 45x45mm Dimension 45 x 45 Halogen-free yes Material Polycarbonate Mounting type Installation Surface version Matt Transparent no Version for Socket, single - All types
- Downloads
-
Data sheet PAD-ID6 AL1 / 6120005 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfNo invitation to tender text is available for this product.
