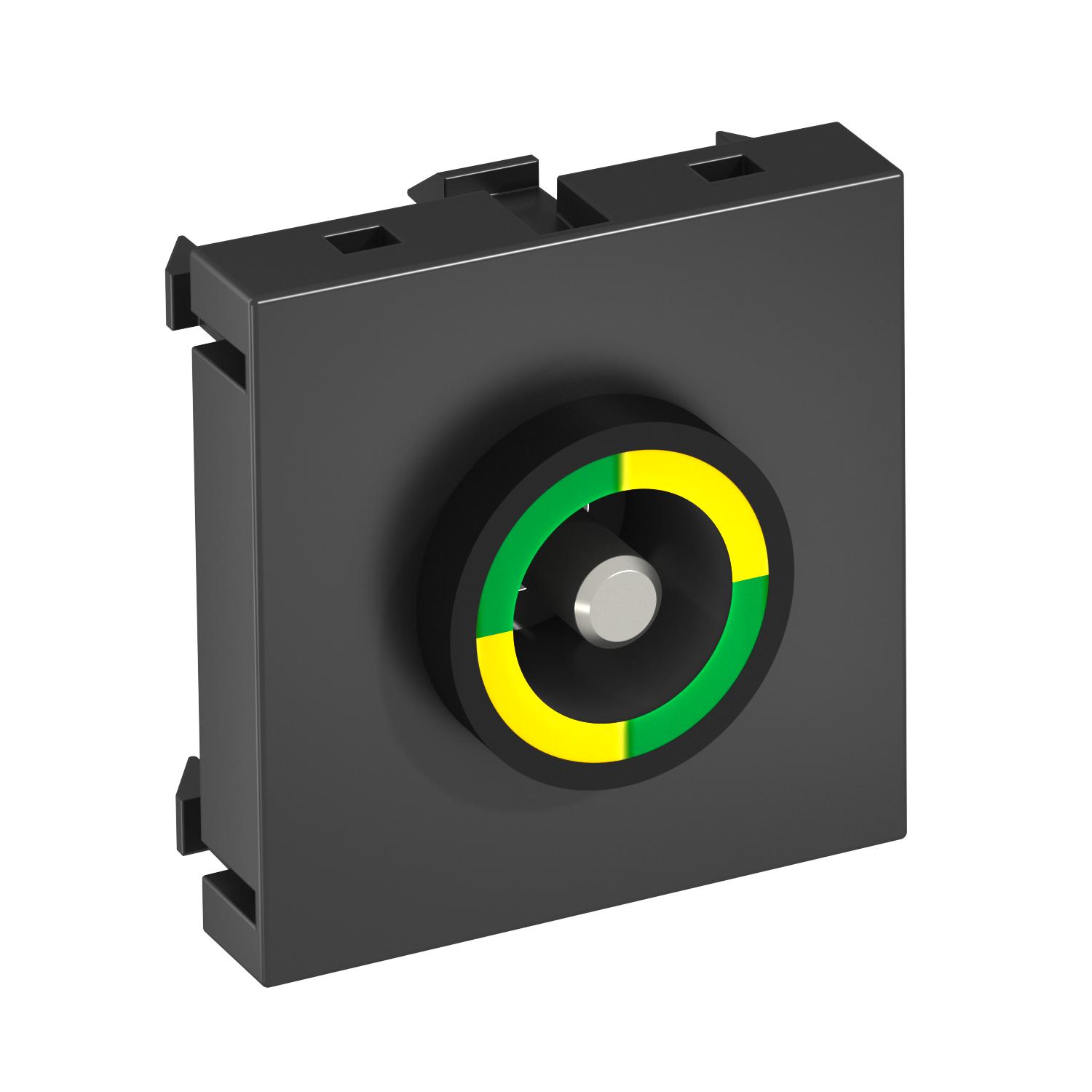

Equipotential bonding socket, 1 module, straight outlet, black-grey

Item no. 6120001 | EAN 4012196049134

Product description
Product description
Equipotential bonding socket to DIN 42801, socket in black with green-yellow colour ring, cable connection to rear with M6 screw bolt, including two nuts, washers and a serrated washer.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • Installation electrotechnical expertise
Technical data

Technical data

Colour Black-grey; RAL 7021
Combination Basic element with central cover plate
CO₂ Footprint (GWP) Cradle-to-Gate 0,113 kg CO₂e / 1 Piece
Dimension 45 x 45
Dimension 45x45mm
Halogen-free yes
Material Polycarbonate
Mounting type Installation
Surface version Matt
Transparent no
Version for Socket, single
All types

All types

Types Colour Item no. Quantity SSU
PAD-ID6 SWGR1 Black-grey; RAL 7021 6120001
10 piece
PAD-ID6 RW1 Pure white; RAL 9010 6120003
10 piece
PAD-ID6 AL1 Aluminium painted 6120005
10 piece
