Equipotential busbar 1804 for concealed mounting

Item no. 5015545 | EAN 4012195378433

5015545 / 1804 UP

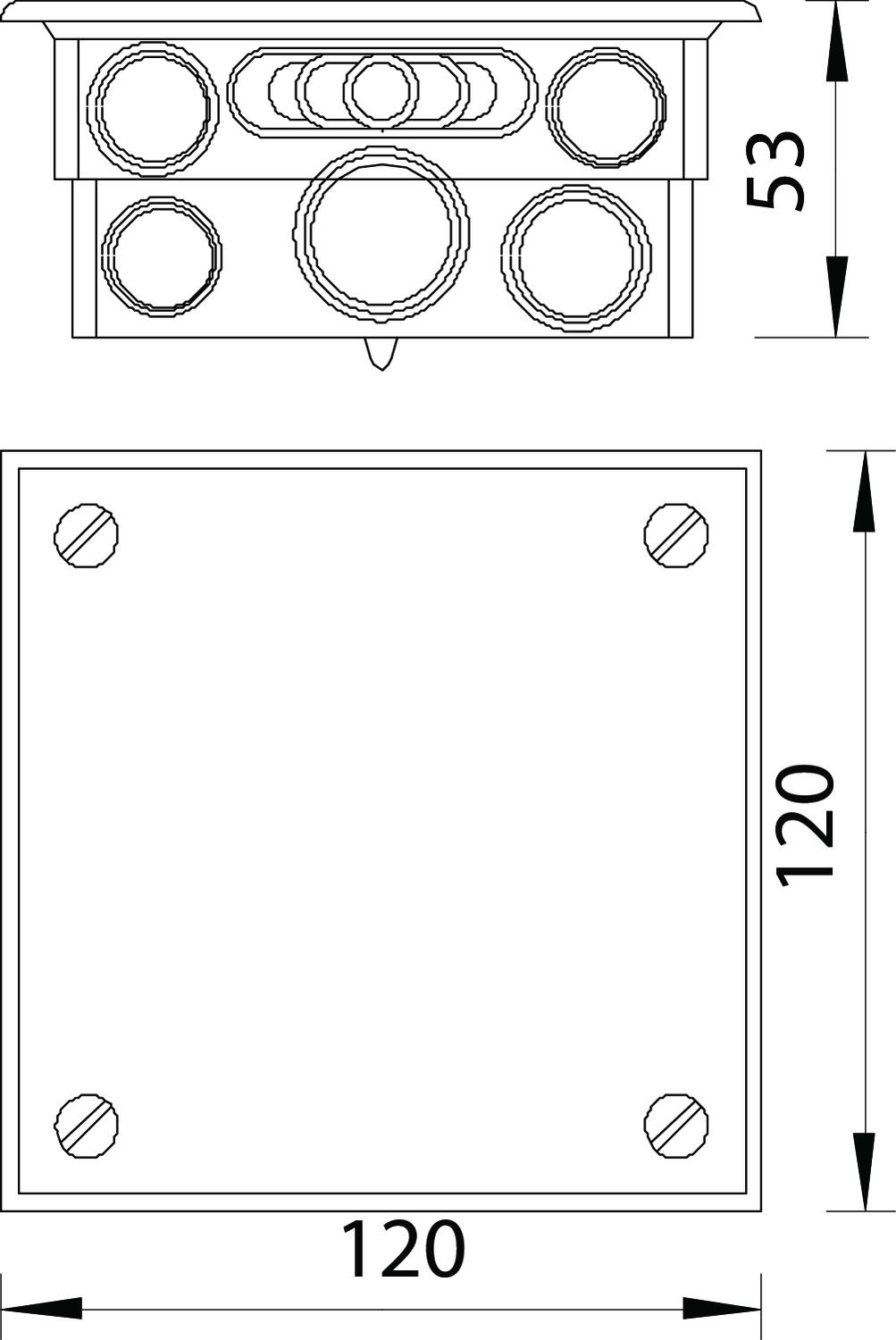

120 mm
120 mm
53 mm
Product description

Product description

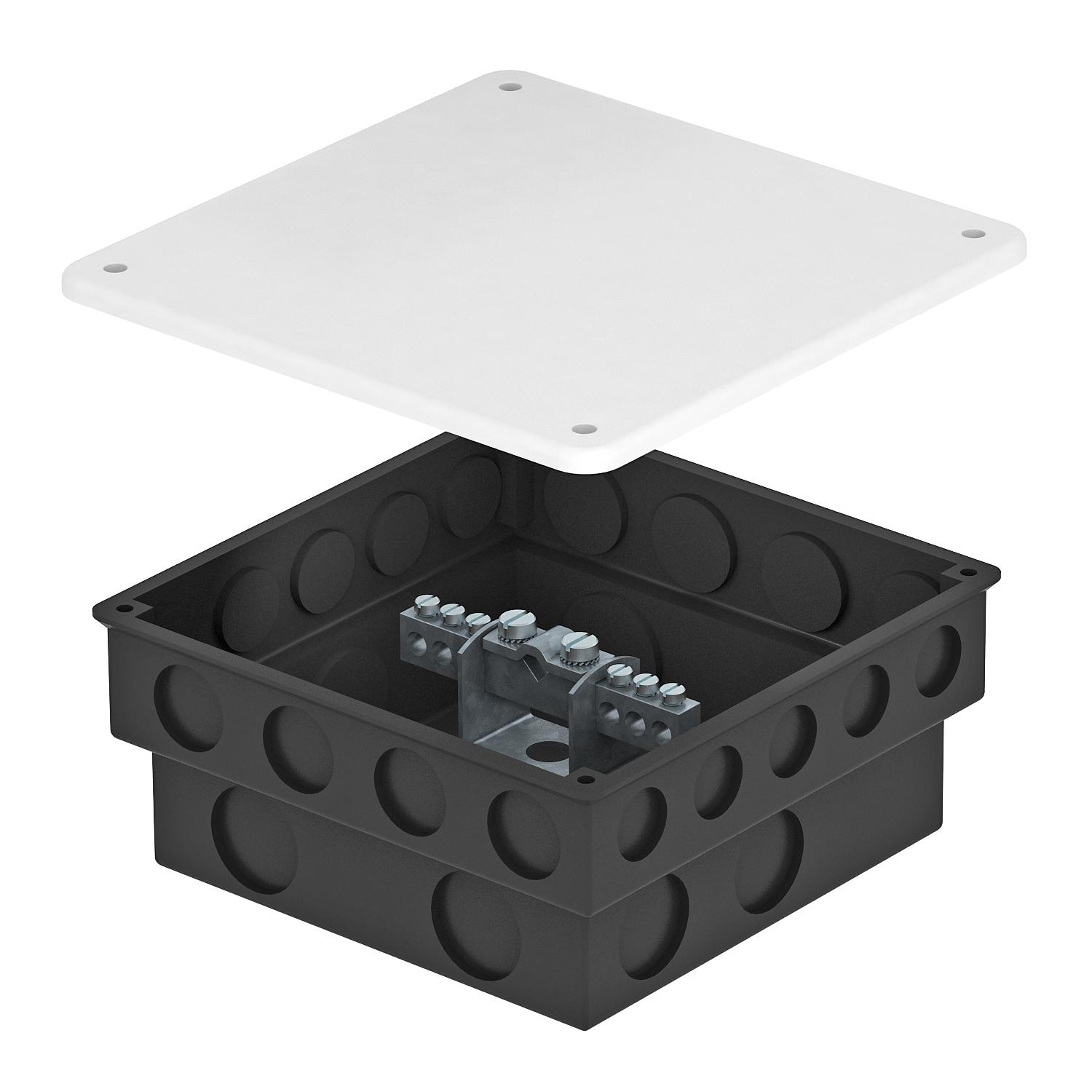

• Mounted equipotential busbar 1804 in concealed housing

• Pre-marked concealed housing for inserting required cables and covers

• Contact strip made of nickel-plated brass

• Bolts and crossbar made of electrogalvanised steel


Connection options:

• 6x cables 1.5–10 mm²

• 1x cable 6–16 mm²
Technical data

Technical data

Dimension 50x5mm
Height 53 mm
Insulator yes
Length 120 mm
Material Brass
Material of the contact rail Brass
Material of the terminal Steel
Quantity of cable connections up to 16 mm², rigid 7
Quantity of flat conductor connections up to 30 mm 1
Quantity of round conductor connections 8-10 mm 1
Quantity of round conductor connections, total 7
Surface of the contact rail Nickel-plated
Surface of the terminal Electrogalvanised
Type Fixed structure
Version for In the housing
Width 120 mm
All types

All types

Types Length Width Height Item no. Quantity SSU
1804 UP 120 mm 120 mm 53 mm 5015545
5 piece
Downloads

Download

Download

Declaration of conformity 1804 UP / 5015545 , 0.10MB , pdf
Download
REACH Declaration of conformity 1804 UP / 5015545 , 0.12MB , pdf
RoHS Declaration of conformity 1804 UP / 5015545 , 0.12MB , pdf
