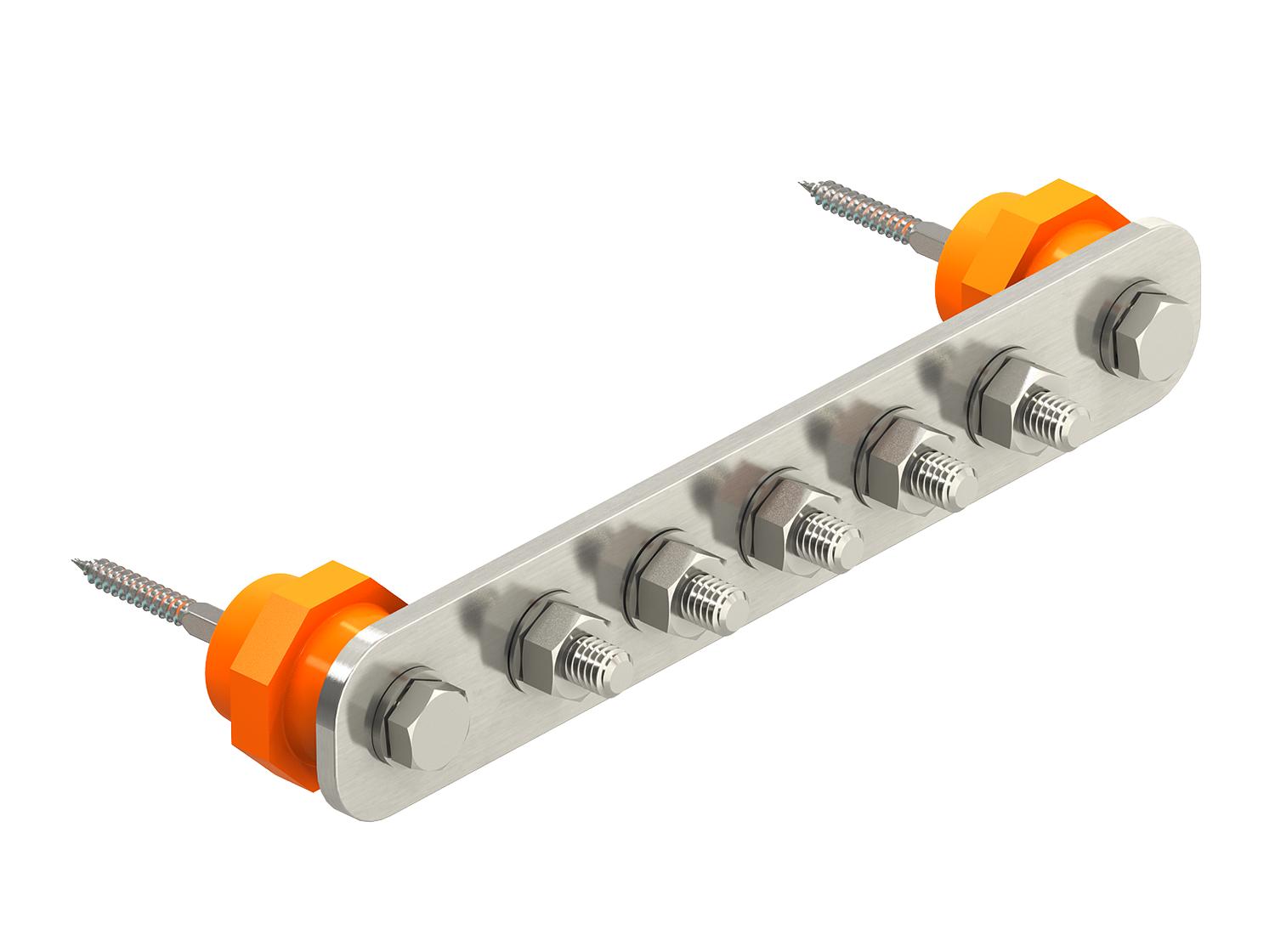

Equipotential busbar BigBar for industrial application
Item no. 5015854 | EAN 4012195002277
- Product description
-
Product description• Main potential equalisation to VDE 0100 Part 410 and Part 540, and also lightning protection potential equalisation to VDE 0185-305 (IEC 62305)
• Insulation feet
• Quick, simple assembly of connection conductors to the contact rail using lock bolts M10
• The high-grade stainless steel versions (V2A) are suitable for outdoor use
• Complete with anchors and bolts for wall mounting
• With lock washer (DIN 137) for bolt locking against loosening (e.g. required in industry and Ex areas)
-
- Technical data
-
Technical data

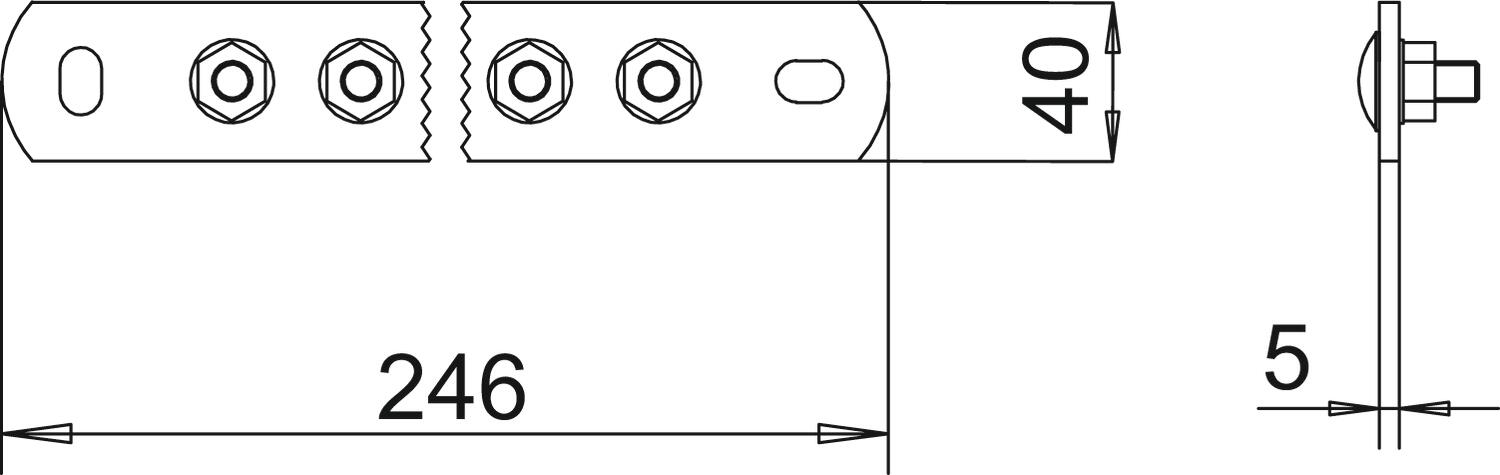

Dimension 5xM10 Height 5 mm Insulator yes Length 246 mm Lightning current carrying capacity H/100 kA Material Stainless steel Material of the contact rail Rustproof steel (V2A) Material of the terminal Rustproof steel (V2A) Number of connections 5 Quantity of round conductor connections, total 5 Type Modular structure Version for Only terminal Width 40 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

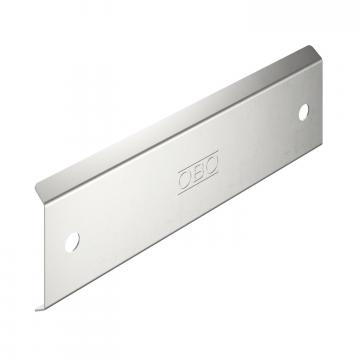

Cover for BigBar equipotential busbar
1802 AH 5 5015880 25 piece - Downloads
-
Data sheet 1802 5 VA / 5015854 , 0.20MB , pdfEU declaration of conformity 1802 5 VA / 5015854 , 0.13MB , pdfREACH Declaration of conformity 1802 5 VA / 5015854 , 0.12MB , pdfRoHS Declaration of conformity 1802 5 VA / 5015854 , 0.12MB , pdfInstallation instructions Mounting and installation instructions, equipotential busbar 1802... , 2.00MB , pdf
