Equipotential busbar BigBar for industrial applications

Item no. 5015832 | EAN 4012195699330

40 mm
Product description
Product description
Main equipotential busbar to VDE 0100 Part 410 and Part 540, and also lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)


• Insulation feet

• Quick, simple mounting of connection cables using lock bolts M10

• Complete with anchors and bolts for wall mounting

• With lock washer (DIN 137) for bolt locking against loosening (e.g. required in industry and explosion-protected areas)
  • Lightning current-tested
Technical data

Technical data

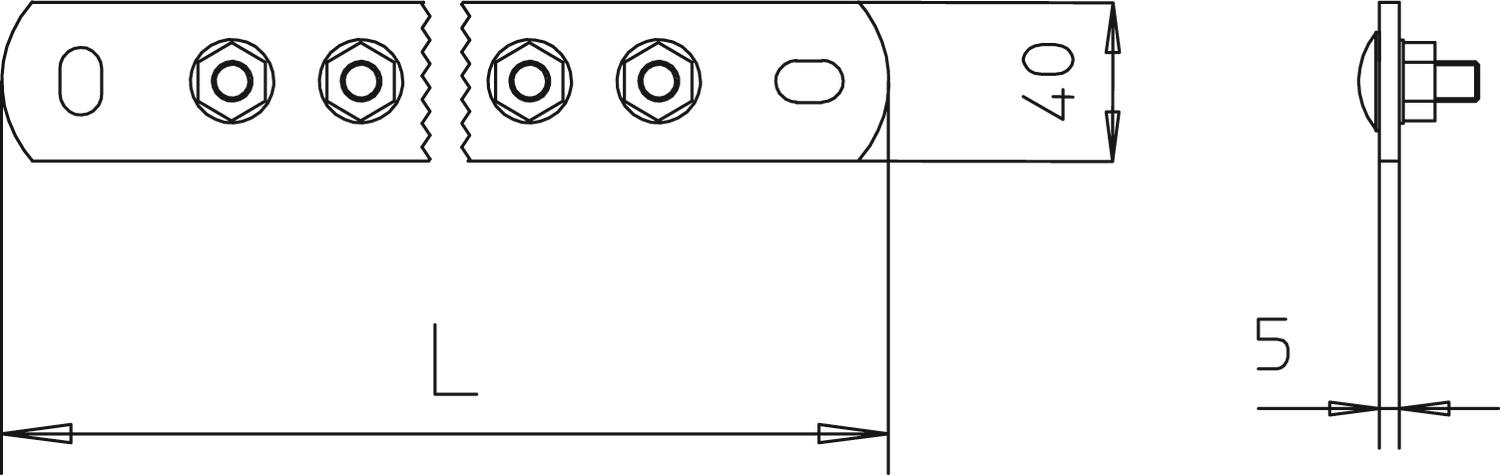

Dimension 6xM10
Height 5 mm
Insulator yes
Length 278,5 mm
Lightning current carrying capacity H/100 kA
Material Copper
Material of the contact rail Copper
Material of the terminal Copper
Number of connections 6
Quantity of round conductor connections, total 6
Type Fixed structure
Version for Only terminal
Width 40 mm
All types

All types

Types Length Width Height Number of connections Item no. Quantity SSU
1802 5 CU 246 mm 40 mm 5 mm 5 5015830
6 piece
1802 6 CU 278.5 mm 40 mm 5 mm 6 5015832
6 piece
1802 8 CU 343.5 mm 40 mm 5 mm 8 5015836
10 piece
1802 10 CU 408.5 mm 40 mm 5 mm 10 5015842
12 piece
1802 12 CU 473.5 mm 40 mm 5 mm 12 5015844
8 piece
1802 14 CU 538.5 mm 40 mm 5 mm 14 5015847
8 piece
1802 20 CU 733.5 mm 40 mm 5 mm 20 5015849
1 piece
1802 DC 5+1 CU 505 mm 40 mm 85 mm 6 5015870
1 piece
1802 DC 5+5 CU 605 mm 40 mm 85 mm 10 5015874
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Crossbar for equipotential busbar Crossbar for equipotential busbar 1802 KL 5015890
75 piece
