Equipotential busbar BigBar for industrial applications 408.5 | 40 | 5 | 10 |

Equipotential busbar BigBar for industrial applications

Item no. 5015842 | EAN 4012195002260

Item no. / Types

Length

Width	40 mm

Height

Number of connections

Product description

Product description

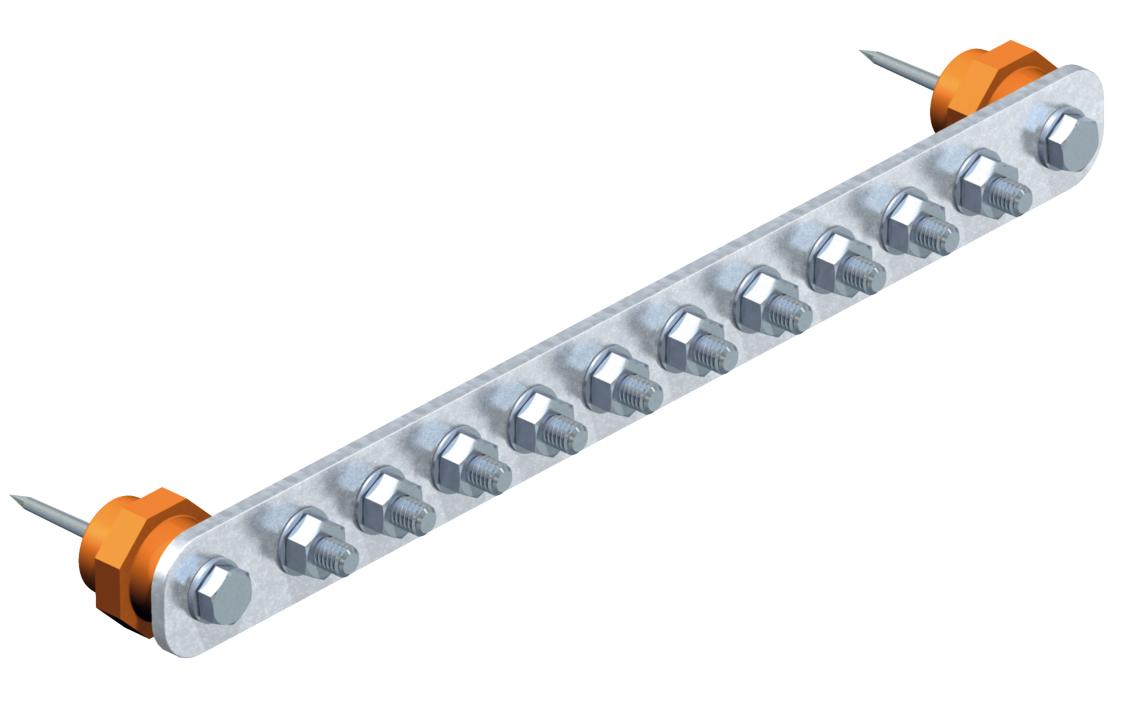

Main equipotential busbar to VDE 0100 Part 410 and Part 540, and also lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

• Insulation feet

• Quick, simple mounting of connection cables using lock bolts M10

• Complete with anchors and bolts for wall mounting

• With lock washer (DIN 137) for bolt locking against loosening (e.g. required in industry and explosion-protected areas)

Technical data

Technical data

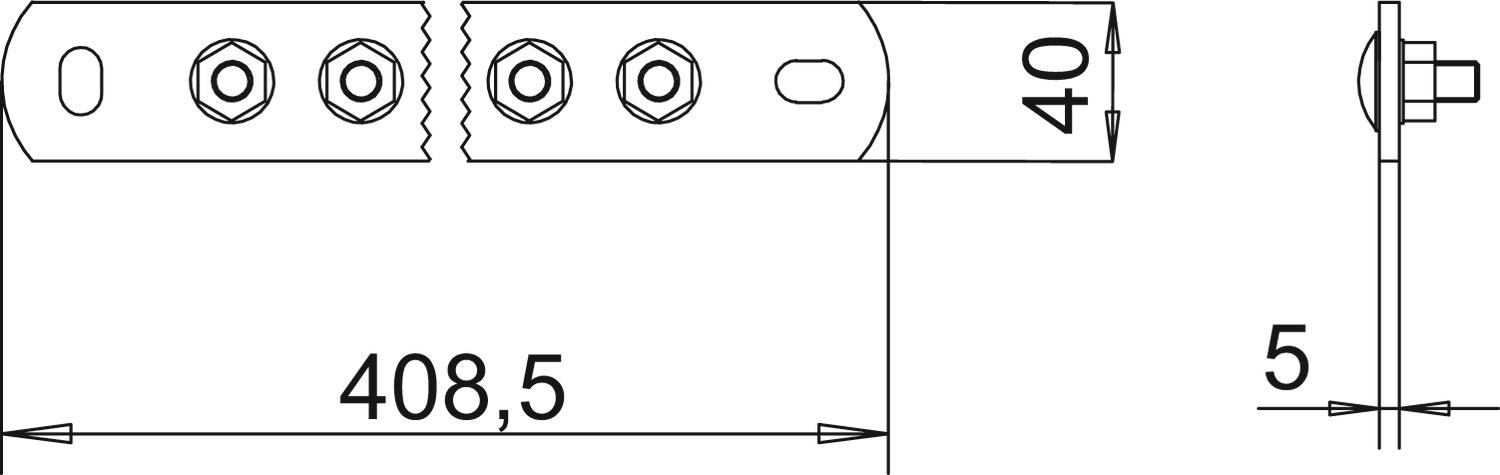

Dimension	10xM10
Height	5 mm
Insulator	yes
Length	408,5 mm
Lightning current carrying capacity	H/100 kA
Material	Copper
Material of the contact rail	Copper

Material of the terminal	Copper
Number of connections	10
Quantity of round conductor connections, total	10
Type	Fixed structure
Version for	Only terminal
Width	40 mm

All types

All types

Types	Length	Width	Height	Number of connections	Item no.	Quantity	SSU

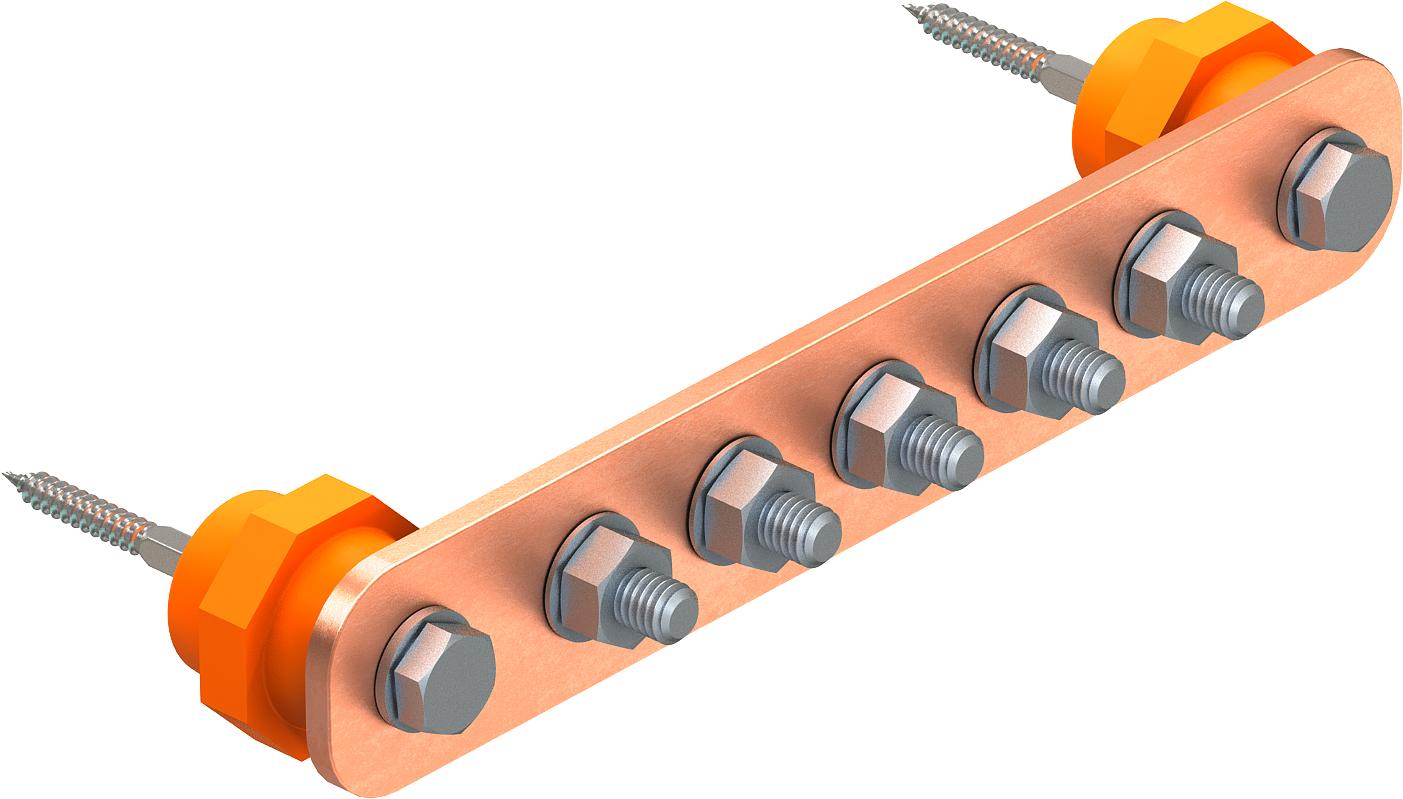

1802 5 CU	246 mm	40 mm	5 mm	5	5015830	piece	6 piece
1802 6 CU	278.5 mm	40 mm	5 mm	6	5015832	piece	6 piece
1802 8 CU	343.5 mm	40 mm	5 mm	8	5015836	piece	10 piece
1802 10 CU	408.5 mm	40 mm	5 mm	10	5015842	piece	12 piece
1802 12 CU	473.5 mm	40 mm	5 mm	12	5015844	piece	8 piece
1802 14 CU	538.5 mm	40 mm	5 mm	14	5015847	piece	8 piece
1802 20 CU	733.5 mm	40 mm	5 mm	20	5015849	piece	1 piece
1802 DC 5+1 CU	505 mm	40 mm	85 mm	6	5015870	piece	1 piece
1802 DC 5+5 CU	605 mm	40 mm	85 mm	10	5015874	piece	1 piece
