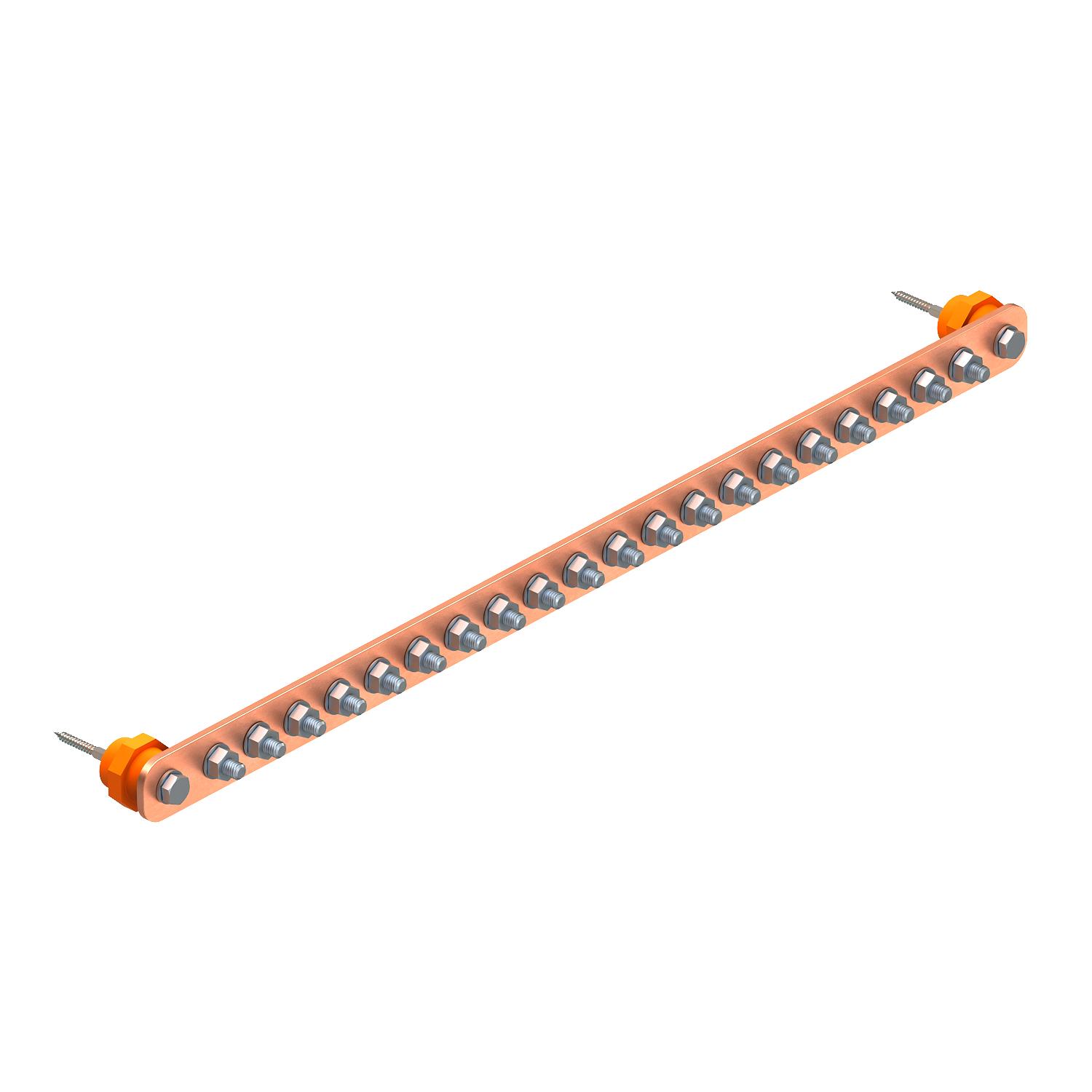

Equipotential busbar BigBar for industrial applications

Item no. 5015849 | EAN 4012195699408

40 mm
Product description
Product description
Main equipotential busbar to VDE 0100 Part 410 and Part 540, and also lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)


• Insulation feet

• Quick, simple mounting of connection cables using lock bolts M10

• Complete with anchors and bolts for wall mounting

• With lock washer (DIN 137) for bolt locking against loosening (e.g. required in industry and explosion-protected areas)
  • Lightning current-tested
Technical data

Technical data

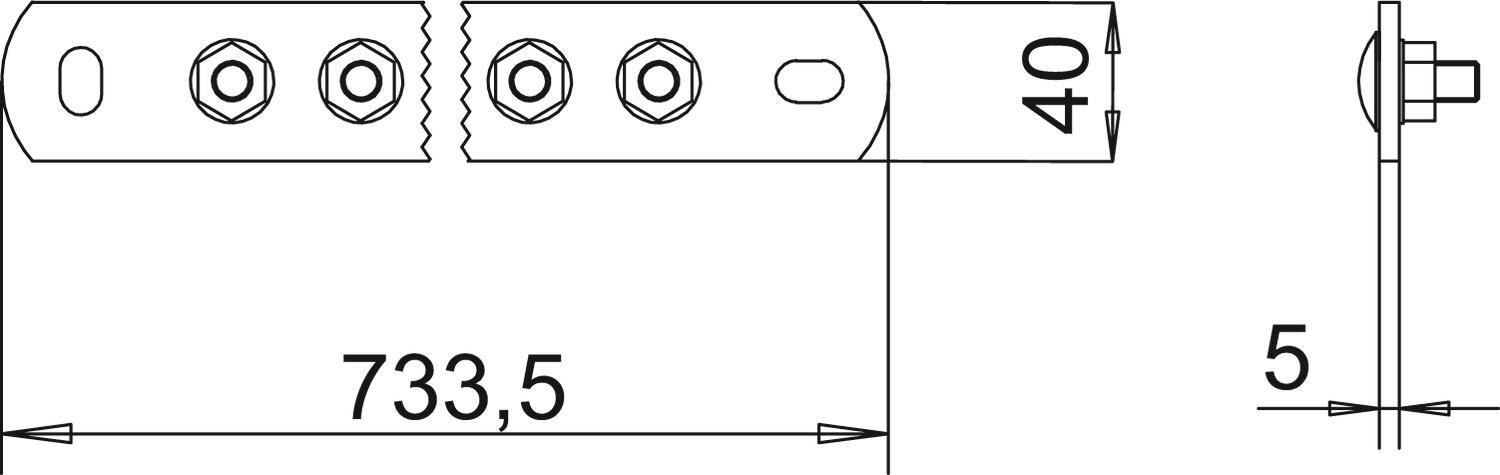

Dimension 20xM10
Height 5 mm
Insulator yes
Length 733,5 mm
Lightning current carrying capacity H/100 kA
Material Copper
Material of the contact rail Copper
Material of the terminal Copper
Number of connections 20
Quantity of round conductor connections, total 20
Type Fixed structure
Version for Only terminal
Width 40 mm
All types

All types

Types Length Width Height Number of connections Item no. Quantity SSU
1802 5 CU 246 mm 40 mm 5 mm 5 5015830
6 piece
1802 6 CU 278.5 mm 40 mm 5 mm 6 5015832
6 piece
1802 8 CU 343.5 mm 40 mm 5 mm 8 5015836
10 piece
1802 10 CU 408.5 mm 40 mm 5 mm 10 5015842
12 piece
1802 12 CU 473.5 mm 40 mm 5 mm 12 5015844
8 piece
1802 14 CU 538.5 mm 40 mm 5 mm 14 5015847
8 piece
1802 20 CU 733.5 mm 40 mm 5 mm 20 5015849
1 piece
1802 DC 5+1 CU 505 mm 40 mm 85 mm 6 5015870
1 piece
1802 DC 5+5 CU 605 mm 40 mm 85 mm 10 5015874
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Crossbar for equipotential busbar Crossbar for equipotential busbar 1802 KL 5015890
75 piece
Downloads

Download

Download

EU declaration of conformity 1802 20 CU / 5015849 , 0.13MB , pdf
Download

1802 20 CU / 5015849
